P8 LED Passenger Information Display Full Color For Metro Station
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
|
Detail Information |
|||
| Tube Chip Color: | FULL COLOR | Color: | Red/Green/Amber |
|---|---|---|---|
| Contrast Ratio: | ≥4000 :1 | Material: | Aluminum Alloy |
| Module Resolution (W X H): | 32×32 | Pixel Density: | 27777 Pixels/m² |
| Avg. Power Consumption: | 240W/m² | Input Signal: | DVI / VGA, RGBHV, Composite Video Signal, S-VIDEO, YPbPr(HDTV) |
| High Light: | P8 LED Passenger Information Display,IP65 LED Passenger Information Display,Metro Station P8 LED Screen |
||
Product Description
P8 LED Passenger Information Display Full Color For Metro Station
Metro Passenger Information Sign P8 Storage temperature -20°C~ 60°C Flight LED Screen

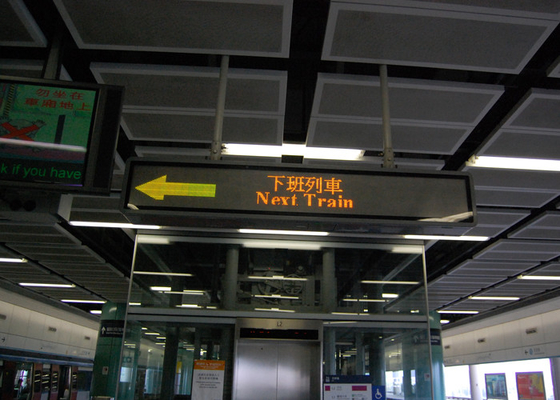

Passenger Information Display yaham PID's traffic system provides real-time train and bus arrival and departure information, commercial and commercial messages to passengers through display units in the aisles at entrances and exits, platforms and public transport station lobbies.
Design Considerations Monitoring Reports Available in Various Sizes and Colors Pressure Washing and Severe Weather Sealed EMI Protection EN50121-1, EN61373 Compliant with EN50155, Network and Other Displays and Controllers.
multi-model optional & convenient
1. Modular design, convenient for transportation and maintenance;
2. Optional pixel pitch: 2.76mm, 4mm, 4.75mm, 5.3mm, 6mm, 7.62mm, 8.6mm, 10mm (PID series).

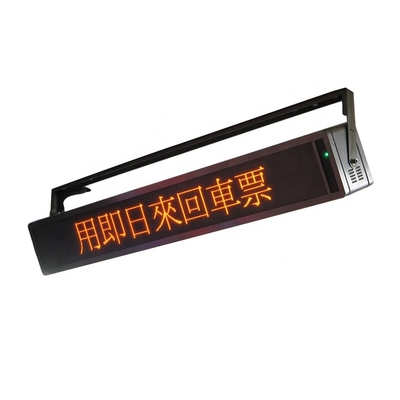

3. Single and double color and full color PIDs are optional;
4. The brightness is optional from 500 to 6000nits, displaying the red, green and yellow Chinese characters and icons stipulated by the national standard, which meets the various application requirements of the LED variable intelligence board;
Safety & Reliability
1. All metal equipment casings, piping systems, and junction boxes are painted.
2. High protection level: IP65 (outdoor station square, platform), IP54 or 30 (station hall, train bus compartment), selected according to environmental conditions to ensure 360° waterproof and dustproof structure;
3. Dual-voltage working mode, 25% energy saving, redundant power supply design, effectively enhance reliability and long service life;

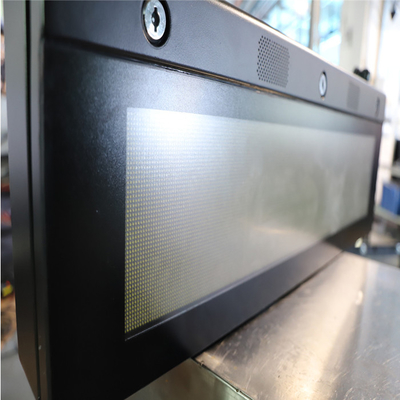

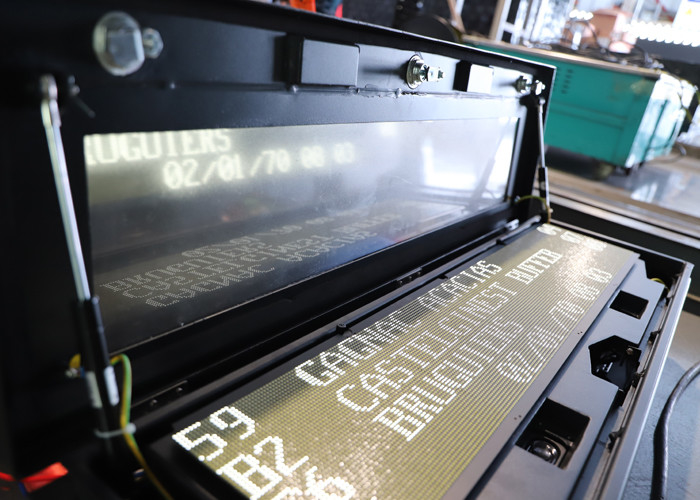

4. Active heat dissipation structure of double-layer doors on the screen body, the structure is airtight;
5. Double-sided anti-reflection coating design, anti-scratch and dull surface;
6. High-quality energy-saving LED modules, guaranteed 10-year service life, module mean time between failures (MTBF) ≥ 80,000 hours.
| Item | P6 | P8 | P10 | P12 | P16 |
| Pixel pitch | 6mm | 8mm | 10mm | 12mm | 16mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 27777 pixels/m² | 15625 pixels/m² | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 192×192 mm | 256×128 mm | 320×160 mm | 192×192 mm | 256×128 mm |
| Module resolution (W x H) | 32×32 | 32×16 | 32×16 | 16×16 | 16×8 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° | H140°/ V140° | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 6m~50m | 8m~80m | 10m~100m | 12m~100m | 16m~100m |
| Brightness | 5,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits | 6,000~7,000 nits | 5,000~8,000 nits |
| Gray scale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥4000 :1 | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V | 100~240V | 100~240V | 100~240V |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/8 dynamic | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic | dynamic |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
