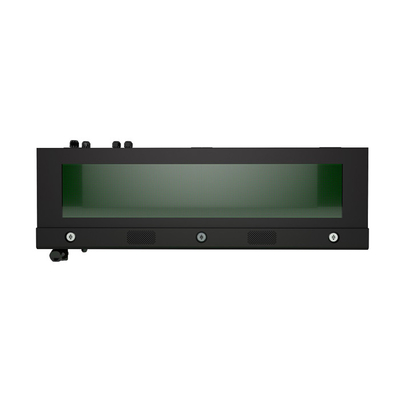

P8 P10 P12 LED Passenger Information Display RGB 68.7 Billion Color
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
|
Detail Information |
|||
| LED Type: | SMD 3 In 1 | Power Supply: | 110-230AV/12V-24V DC |
|---|---|---|---|
| Material: | Aluminum Alloy | Max. Power Consumption: | 600W/m² |
| Color Temperature: | 5,500k~8,000k | Best Viewing Distance: | 6m~100m |
| High Light: | P12 LED Passenger Information Display,RGB LED Passenger Information Display,P8 Station Information Board |
||
Product Description
P8 P10 P12 LED Passenger Information Display RGB 68.7 Billion Color
Railway Subway Station Information Board P8 P10 P12 RGB 68.7 billion color

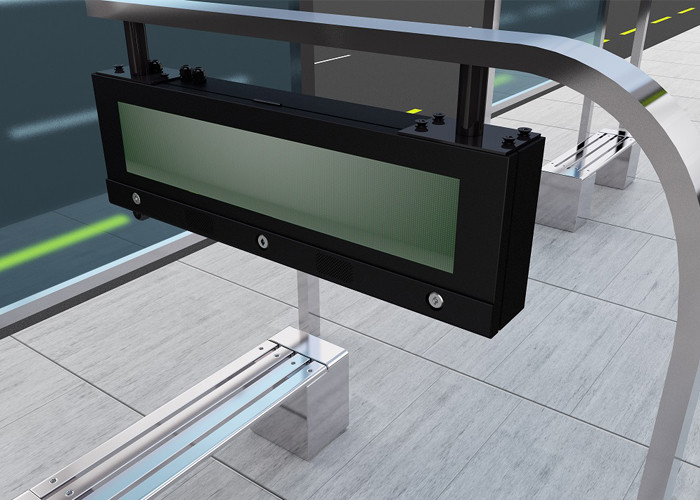

Passenger Information Display yaham PID's traffic system provides real-time train and bus arrival and departure information, commercial and commercial messages to passengers through display units in the aisles at entrances and exits, platforms and public transport station lobbies. Design Considerations Monitoring Reports Available in Various Sizes and Colors Pressure Washing and Severe Weather Sealed EMI Protection EN50121-1, EN61373 Compliant with EN50155, Network and Other Displays and Controllers. Rail transit applications It guides passengers through stations, designated pick-up locations and announcements of arrivals and departutes.
technical experience advantages
1. Have experience in many large-scale projects such as Hong Kong MTR, Hong Kong Kowloon-Canton Railway, Shenzhen Metro, Thailand Airport Light Rail Connection Station, Holland City Railway;
2. Rich experience in system design, structure design, software design, process, manufacturing, quality control and installation;
3. Has a number of mature series of products, the products have passed CE, CCC and other certifications;
4. With module detection, power detection, fan detection, automatic brightness adjustment, error reporting and other functions.
| Item | P10 | P12 |
| Pixel pitch | 10mm | 12mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 320×160 mm | 192×192 mm |
| Module resolution (W x H) | 32×16 | 16×16 |
| Screen weight | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 10m~100m | 12m~100m |
| Brightness | 5,000~7,000 nits | 6,000~7,000 nits |
| Gray scale | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/2 dynamic | 1/2 dynamic |
| Max. Power consumption | 600W/m² | 600W/m² |
| Avg. Power consumption | 180W/m² | 180W/m² |
