P20 P16 Passenger Information Display System In Metro Train station
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
|
Detail Information |
|||
| Usage: | INDOOR | Operation Humidity: | 5%~ 95%RH |
|---|---|---|---|
| LED Type: | SMD 3 In 1 | Power Supply: | 110-230AV/12V-24V DC |
| Material: | Aluminum Alloy | Max. Power Consumption: | 600W/m² |
| High Light: | P20 Passenger Information Display System,P16 Passenger Information Display System,P16 Train Departure Board |
||
Product Description

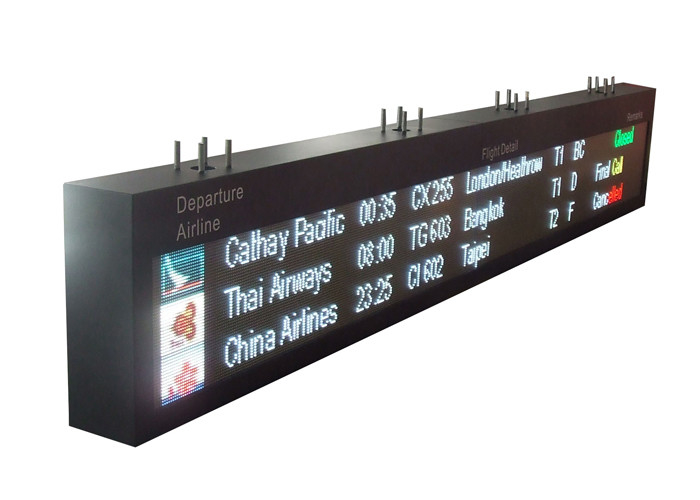

P20 P16 Passenger Information Display System In Metro Train Station
Passenger Information Display P20 P16 en12966 traffic information 5000 ~ 8000 nits
Safety & Reliability
1. All metal equipment casings, piping systems, and junction boxes are painted.
2. High protection level: IP65 (outdoor station square, platform), IP54 or 30 (station hall, train bus compartment), selected according to environmental conditions to ensure 360° waterproof and dustproof structure;
3. Dual-voltage working mode, 25% energy saving, redundant power supply design, effectively enhance reliability and long service life;
4. Active heat dissipation structure of double-layer doors on the screen body, the structure is airtight;
5. Double-sided anti-reflection coating design, anti-scratch and dull surface;
6. High-quality energy-saving LED modules, guaranteed 10-year service life, module mean time between failures (MTBF) ≥ 80,000 hours.
Convenient & multi-model options
1. Modular design, convenient for transportation and maintenance;
2. Single and double color and full color PIDs are optional;
3. The brightness is optional from 500 to 6000nits, displaying the red, green and yellow Chinese characters and icons stipulated by the national standard, which meets the various application requirements of the LED variable intelligence board;
4. Optional pixel pitch: 2.76mm, 4mm, 4.75mm, 5.3mm, 6mm, 7.62mm, 8.6mm, 10mm (PID series).
| Item | P8 | P10 | P12 |
| Pixel pitch | 8mm | 10mm | 12mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 15625 pixels/m² | 10000 pixels/m² | 6944 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 256×128 mm | 320×160 mm | 192×192 mm |
| Module resolution (W x H) | 32×16 | 32×16 | 16×16 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 8m~80m | 10m~100m | 12m~100m |
| Brightness | 5,000~7,000 nits | 5,000~7,000 nits | 6,000~7,000 nits |
| Gray scale | ≥14bit | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power consumption | 180W/m² | 180W/m² | 180W/m² |
