P8 P10 LED Passenger Information Display Gray Scale more than 14bit
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Tube Chip Color: | FULL COLOR | Usage: | INDOOR |
|---|---|---|---|
| Operation Humidity: | 5%~ 95%RH | Contrast Ratio: | ≥4000 :1 |
| Material: | Aluminum Alloy | LED Type: | SMD 3 In 1 |
| Power Supply: | 100~240V | Driving Method: | 1/8 Dynamic |
| High Light: | P10 LED Passenger Information Display,14bit LED Passenger Information Display,14bit P10 LED Display |
||
Product Description

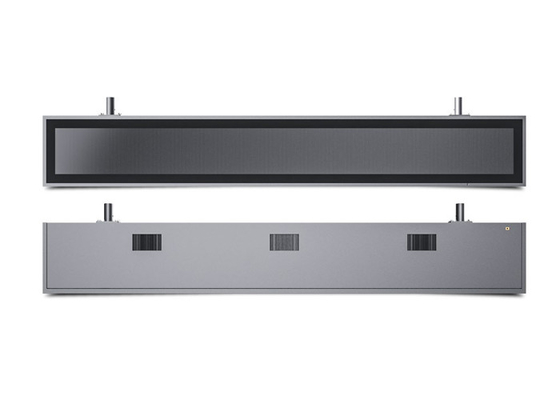

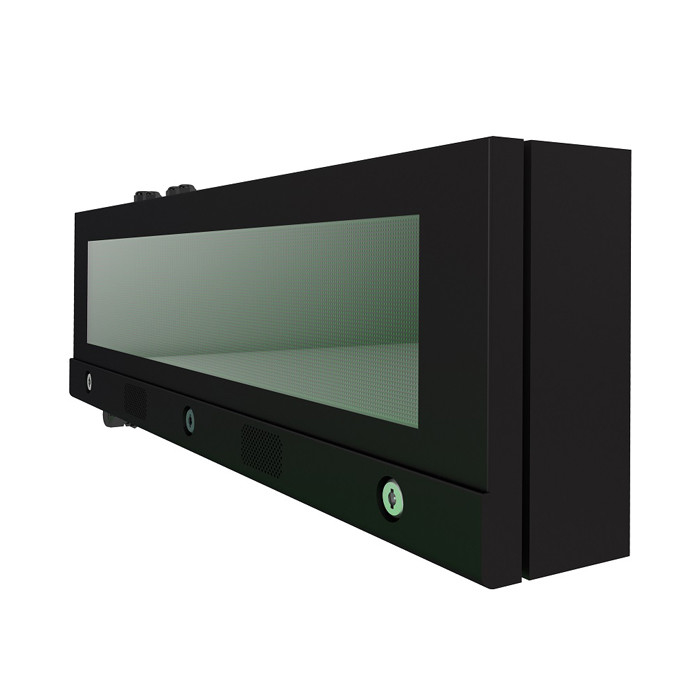

P8 P10 LED Passenger Information Display Gray Scale More Than 14bit

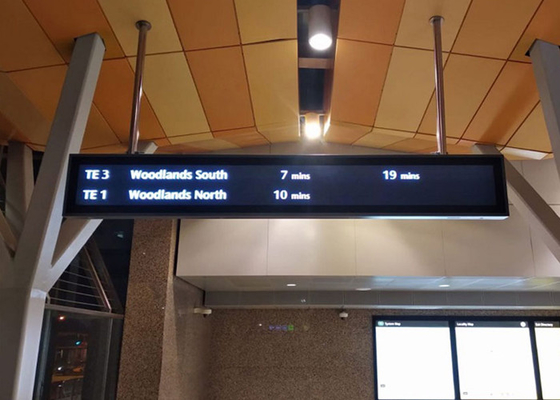

RGB P8 P10 railway station information display screen Gray scale ≥ 14bit
Safety & Reliability
1. High protection level: IP65 (outdoor station square, platform), IP54 or 30 (station hall, train bus compartment), selected according to environmental conditions to ensure 360° waterproof and dustproof structure;
2. Dual-voltage working mode, 25% energy saving, redundant power supply design, effectively enhance reliability and long service life;
3. Active heat dissipation structure of double-layer doors on the screen body, the structure is airtight;
4. High-quality energy-saving LED modules, guaranteed 10-year service life, module mean time between failures (MTBF) ≥ 80,000 hours.
energy saving:
1. All products are selected, designed and produced according to RoHS standards;
2. The production strictly follows the ISO14001 standard.
3. Ultra-wide viewing angle, suitable for multi-angle viewing, more convenient and more intimate;
4. Display the arrival and departure timetable, real-time information and business information, adopt high-brightness LED technology and automatic/manual dimming technology to ensure the best visibility, and at the same time have the characteristics of energy saving and environmental protection;
| Item | P8 | P10 | P12 | P16 |
| Pixel pitch | 8mm | 10mm | 12mm | 16mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 15625 pixels/m² | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 256×128 mm | 320×160 mm | 192×192 mm | 256×128 mm |
| Module resolution (W x H) | 32×16 | 32×16 | 16×16 | 16×8 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 8m~80m | 10m~100m | 12m~100m | 16m~100m |
| Brightness | 5,000~7,000 nits | 5,000~7,000 nits | 6,000~7,000 nits | 5,000~8,000 nits |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic | dynamic |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power consumption | 180W/m² | 180W/m² | 180W/m² | 180W/m² |
