P10 Color 5500k 8000k Train Station Information Board
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1500 Set/Sets per Month |
|
Detail Information |
|||
| Usage: | INDOOR | Operation Humidity: | 5%~ 95%RH |
|---|---|---|---|
| LED Type: | SMD 3 In 1 | Power Supply: | 110-230AV/12V-24V DC |
| Material: | Aluminum Alloy | Max. Power Consumption: | 600W/m² |
| Contrast Ratio: | ≥4000 :1 | ||
| High Light: | 8000k Train Station Information Board,5500k Train Station Information Board |
||
Product Description

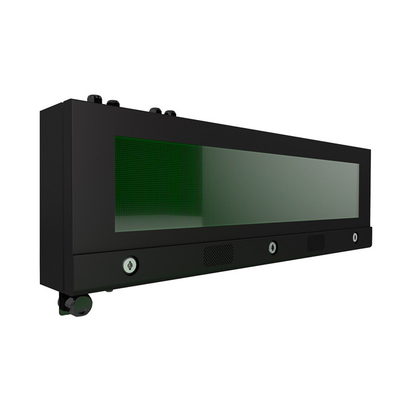

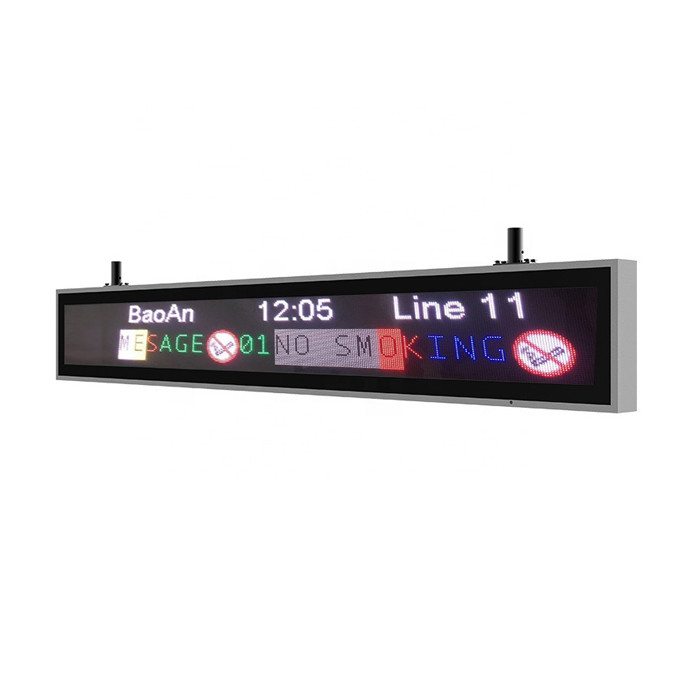

Train station metro LED Screen P10 Color 5500k ~ 8000k temperature Refresh rate ≥ 1920Hz
Passenger Information Display yaham PID's traffic system provides real-time train and bus arrival and departure information, commercial and commercial messages to passengers through display units in the aisles at entrances and exits, platforms and public transport station lobbies.
Design Considerations Monitoring Reports Available in Various Sizes and Colors Pressure Washing and Severe Weather Sealed EMI Protection EN50121-1, EN61373 Compliant with EN50155, Network and Other Displays and Controllers.
Rail transit applications It guides passengers through stations, designated pick-up locations and announcements of arrivals and departutes.
technical experience advantages
1. Have experience in many large-scale projects such as Hong Kong MTR, Hong Kong Kowloon-Canton Railway, Shenzhen Metro, Thailand Airport Light Rail Connection Station, Holland City Railway;
2. Rich experience in system design, structure design, software design, process, manufacturing, quality control and installation;
3. With module detection, power detection, fan detection, automatic brightness adjustment, error reporting and other functions.
4. Has a number of mature series of products, the products have passed CE, CCC and other certifications;
| Item | P8 | P10 | P12 |
| Pixel pitch | 8mm | 10mm | 12mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 15625 pixels/m² | 10000 pixels/m² | 6944 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 256×128 mm | 320×160 mm | 192×192 mm |
| Module resolution (W x H) | 32×16 | 32×16 | 16×16 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 8m~80m | 10m~100m | 12m~100m |
| Brightness | 5,000~7,000 nits | 5,000~7,000 nits | 6,000~7,000 nits |
| Gray scale | ≥14bit | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power consumption | 180W/m² | 180W/m² | 180W/m² |
