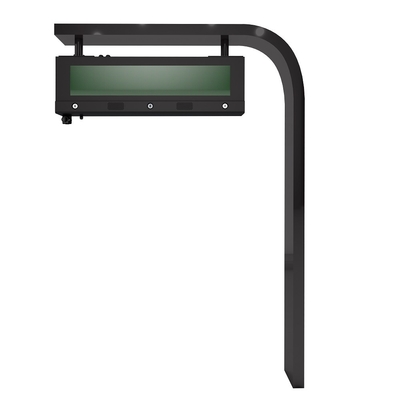

PID SMD 3 In 1 LED Passenger Information Display 32×32 Module
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1800 Set/Sets per Month |
|
Detail Information |
|||
| LED Type: | SMD 3 In 1 | Power Supply: | 110-230AV/12V-24V DC |
|---|---|---|---|
| Max. Power Consumption: | 600W/m² | Color Temperature: | 5,500k~8,000k |
| Best Viewing Distance: | 6m~100m | Avg. Power Consumption: | 240W/m² |
| Operation Temperature: | -20°C~ 50°C | Module Resolution (W X H): | 32×32 |
| High Light: | PID LED Passenger Information Display,SMD LED Passenger Information Display,5500k Traffic Information Display |
||
Product Description
PID SMD 3 In 1 LED Passenger Information Display 32×32 Module

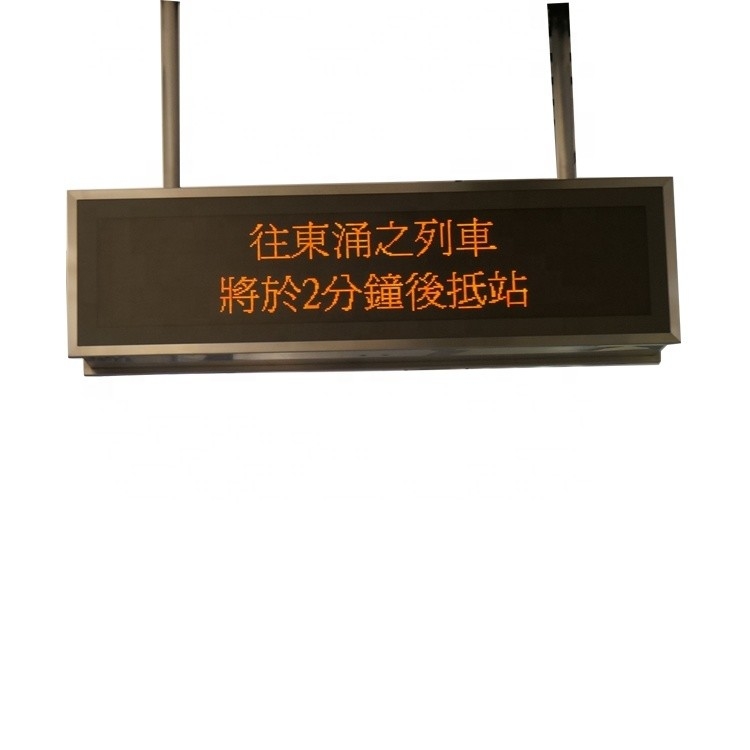

en12966 traffic information LED display Train station PID 60 kg/m² SMD 3 in 1
Patent & Testing & Certification
1. Driven by Yuanheng's unique software design patented controller, with high reliability and stability;
2. Material selection, design, production and testing in strict accordance with GB/T 23828-2009 standard for highway LED variable information signs.
3. Magnetic ring design, in line with EMC certification;
4. Optical properties EN50155, EN50121-1, EN61373 standards;
5. Environmental protection material selection, in line with RoHS certification;
6. Support NTCIP protocol.
7. Comply with ISO9001:2008 and ISO14001:2004 certification;
8. Comply with CE/FCC certification;
technical experience advantages
1. Rich experience in system design, structure design, software design, process, manufacturing, quality control and installation;
2. Has a number of mature series of products, the products have passed CE, CCC and other certifications;
3. With module detection, power detection, fan detection, automatic brightness adjustment, error reporting and other functions.
4. Have experience in many large-scale projects such as Hong Kong MTR, Hong Kong Kowloon-Canton Railway, Shenzhen Metro, Thailand Airport Light Rail Connection Station, Holland City Railway;
| Item | P10 | P12 |
| Pixel pitch | 10mm | 12mm |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 320×160 mm | 192×192 mm |
| Module resolution (W x H) | 32×16 | 16×16 |
| Viewing angle | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 10m~100m | 12m~100m |
| Brightness | 5,000~7,000 nits | 6,000~7,000 nits |
| Gray scale | ≥14bit | ≥14bit |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/2 dynamic | 1/2 dynamic |
| Max. Power consumption | 600W/m² | 600W/m² |
| Avg. Power consumption | 180W/m² | 180W/m² |
