EN12966 LED Passenger Information Display Subway Train Station use
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、CE |
| Model Number: | YHT-PID-T4-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Set/Sets |
|---|---|
| Price: | $2450-3000 Set/Sets |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 45 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 2000 Set/Sets per Month |
|
Detail Information |
|||
| Tube Chip Color: | FULL COLOR | Usage: | INDOOR |
|---|---|---|---|
| Operation Humidity: | 5%~ 95%RH | Color: | Red/Green/Amber |
| Contrast Ratio: | ≥4000 :1 | Power Supply: | 110-230AV/12V-24V DC |
| Material: | Aluminum Alloy | Module Resolution (W X H): | 32×32 |
| High Light: | EN12966 LED Passenger Information Display,EN12966 Train Station Display,P10 Train Station Display |
||
Product Description
EN12966 LED Passenger Information Display Subway Train Station Use
Subway led sign board train station PID Passengers information display P10
1. Product application field

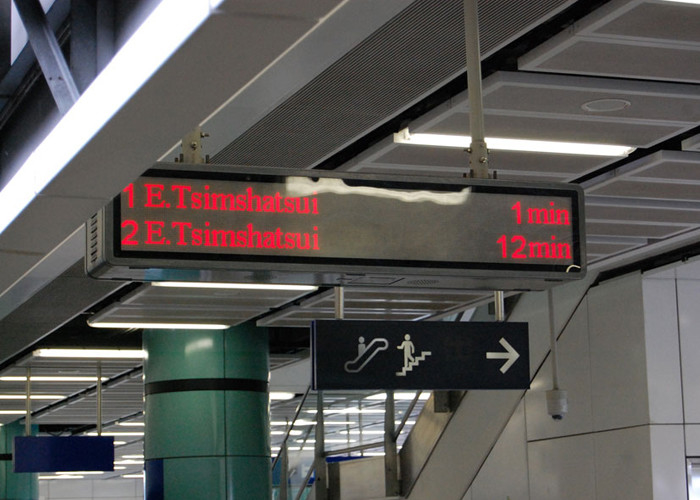

In railway stations, subway stations, bus stations, airports and other public areas, passenger information display signs (PIDs) are essential traffic display products, which are used to provide passengers with various service information to effectively guide passenger flow. Yuanheng Optoelectronics has experience in many large-scale projects such as Hong Kong MTR, Hong Kong Kowloon-Canton Railway, Shenzhen Metro, Thailand Airport Light Rail Connection Station, and Holland Metro.
Product features and advantages
energy saving:
1. Ultra-wide viewing angle, suitable for multi-angle viewing, more convenient and more intimate;
2. Display the arrival and departure timetable, real-time information and business information, adopt high-brightness LED technology and automatic/manual dimming technology to ensure the best visibility, and at the same time have the characteristics of energy saving and environmental protection;
3. All products are selected, designed and produced according to RoHS standards;
4. The production strictly follows the ISO14001 standard.
| Item | P6 | P8 | P10 | P12 | P16 |
| Pixel pitch | 6mm | 8mm | 10mm | 12mm | 16mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 27777 pixels/m² | 15625 pixels/m² | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (W x H) | 192×192 mm | 256×128 mm | 320×160 mm | 192×192 mm | 256×128 mm |
| Module resolution (W x H) | 32×32 | 32×16 | 32×16 | 16×16 | 16×8 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/ V140° | H140°/ V140° | H140°/ V140° | H140°/ V140° | H140°/ V140° |
| Best viewing distance | 6m~50m | 8m~80m | 10m~100m | 12m~100m | 16m~100m |
| Brightness | 5,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits | 6,000~7,000 nits | 5,000~8,000 nits |
| Gray scale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥4000 :1 | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 | ≥2000 :1 |
| Power supply | 100~240V | 100~240V | 100~240V | 100~240V | 100~240V |
| Storage temperature | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C | -20°C~ 60°C |
| Operation temperature | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C | -20°C~ 50°C |
| Operation humidity | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH | 5%~ 95%RH |
| Driving method | 1/8 dynamic | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic | dynamic |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power consumption | 240W/m² | 180W/m² | 180W/m² | 180W/m² | 180W/m² |
