Outdoor Electronic Dynamic Message Board Toll Traffic LED VMS Signs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD1980-2900/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 25days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1200set/per month |
|
Detail Information |
|||
| Compliance: | EN12966 | Power Supply: | 12-24V DC/110-230V AC |
|---|---|---|---|
| Operating Humidity: | 10%~90% | Protection Level: | IP56(P3:12966) |
| Brightness: | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional |
| High Light: | dynamic message board IP56,Outdoor Electronic LED VMS Signs,Toll led vms signs |
||
Product Description

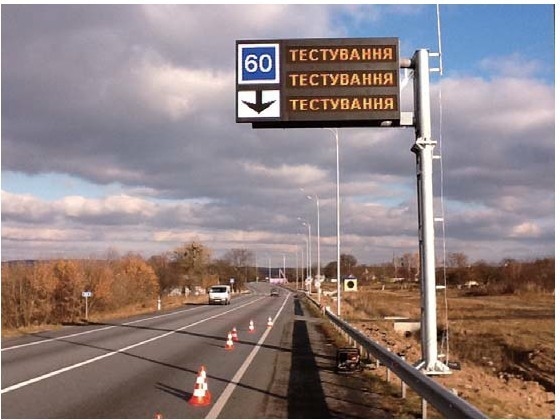

Outdoor Electronic Signs Dynamic And Variable Messages LED Display Toll Traffic Signs
Walk-In DMS
Offers flexibility for communicating critical advisories to motorists traveling at high speeds.
Ideal for freeways, expressways, highways, toll ways, and HOV/HOT lanes.
Designed for overhead or roadside mounting.
Maintenance is performed from within the sign, without having to close traffic lanes.
1,It is the system that informs the drivers by converting the segment information shown in color on the traffic density map into text or image.
2,Additionally, it ensures the warning of the drivers about the changing road and weather conditions (accident, icing, fog, etc.) and contributes to the traffic and navigation safety.
3,It allows drivers to plan their journey using this information. In this way, it helps to use the road network capacity more effectively, reduce traffic density and save time and fuel during the journey.
Variable Message Signs (VMS) are crucial components of modern mobility management systems. LED variable message signs give information and warnings, provide directions, prevent accidents and control the flow of traffic. Not only are they good for road safety and the environment, they ultimately benefit us all in our daily mobility. They are very common on motorways but are also used in urban environments and in parking managament.
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
