P10 P12 P16 P20 VMS Traffic Signs Speed Limit Warning Message Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1950-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Feature: | Control System | Power Supply: | 12-24V DC/110-230V AC |
|---|---|---|---|
| Operation Temperature: | -25~+60℃ | Store Humidity: | 15%~95% |
| Protection Level: | IP56(P3:12966) | ||
| High Light: | P12 VMS Traffic Signs,P16 Traffic Variable Message Sign Speed Limit Warning Sign,P20 Speed Limit Warning Sign |
||
Product Description
P10 P12 P16 P20 VMS Traffic Signs Speed Limit Warning Message Board
VMS Road Traffic Safety Variable Message Sign Speed Limit Warning Sign P10 P12 P16 P20mWaterproof And Energy Savingm
Product Description
Road and highway veriable message signs
Yaham Traffic Variable Message Signs feature high quality LED tubes. The board material is 3mm aluminum alloy plate. The bottom plate adopts high-strength reflective film, and the text adopts diamond-grade reflective film. The specially designed waterproof fixing device (patented technology) solves the problem of lifting and breaking of the weak part of the aluminum plate, while maintaining the sealing level of the box.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control

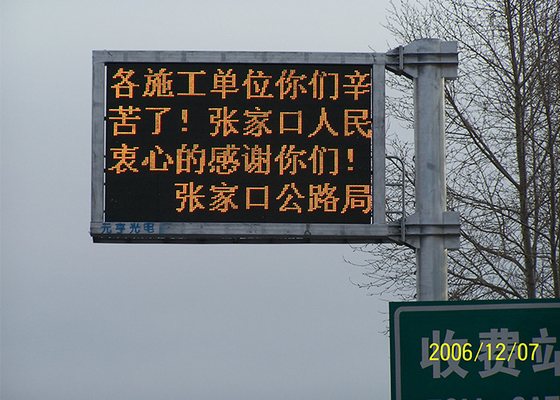

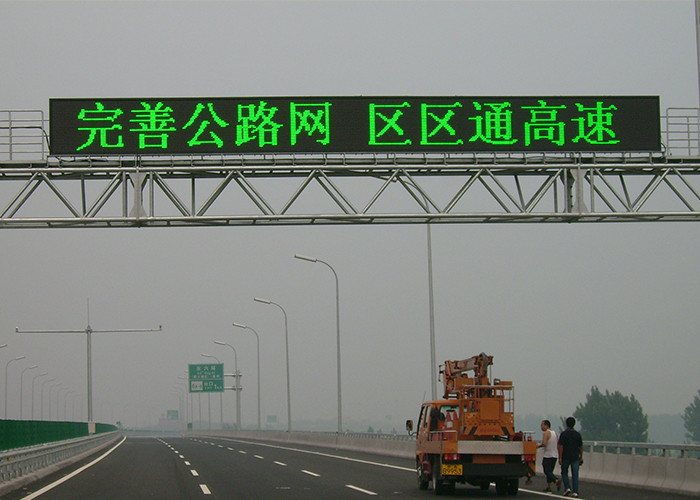

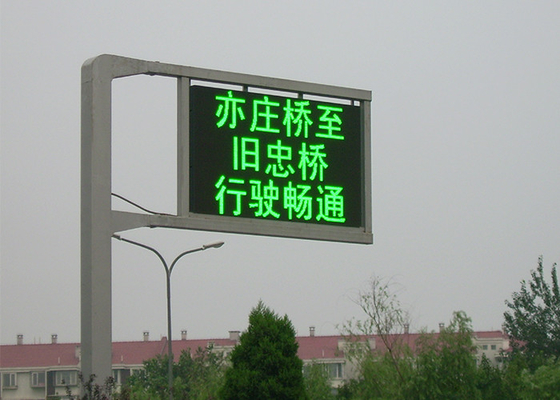

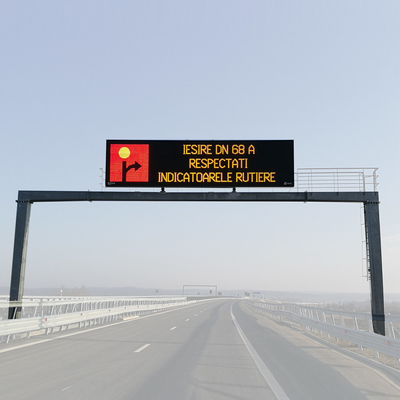

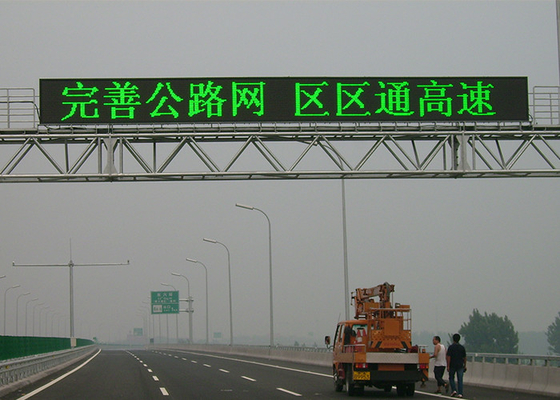

Application scenario
