12V 24V DC VMS Traffic Signs Digital Board Road Control system
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1950-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Maintenance Method: | Rear Service | Feature: | Control System |
|---|---|---|---|
| LED Type: | 3 In 1 SMD + Lens | Power Supply: | 12-24V DC/110-230V AC |
| Operation Temperature: | -25~+60℃ | Operating Humidity: | 10%~90% |
| Store Humidity: | 15%~95% | ||
| High Light: | 24V DC VMS Traffic Signs,12V VMS Traffic Signs,P16mm Digital LED Board |
||
Product Description
12V 24V DC VMS Traffic Signs Digital Board Road Control System
Yaham Digital LED Board Variable Message Sign Outdoor Safety Information Board OT P10 P12 P16
Product Description

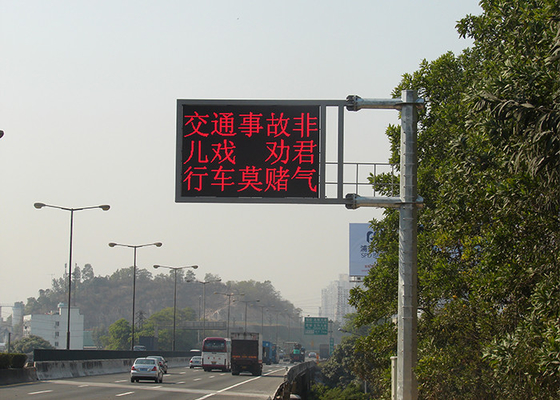

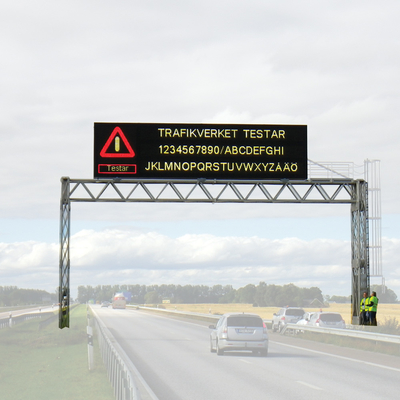

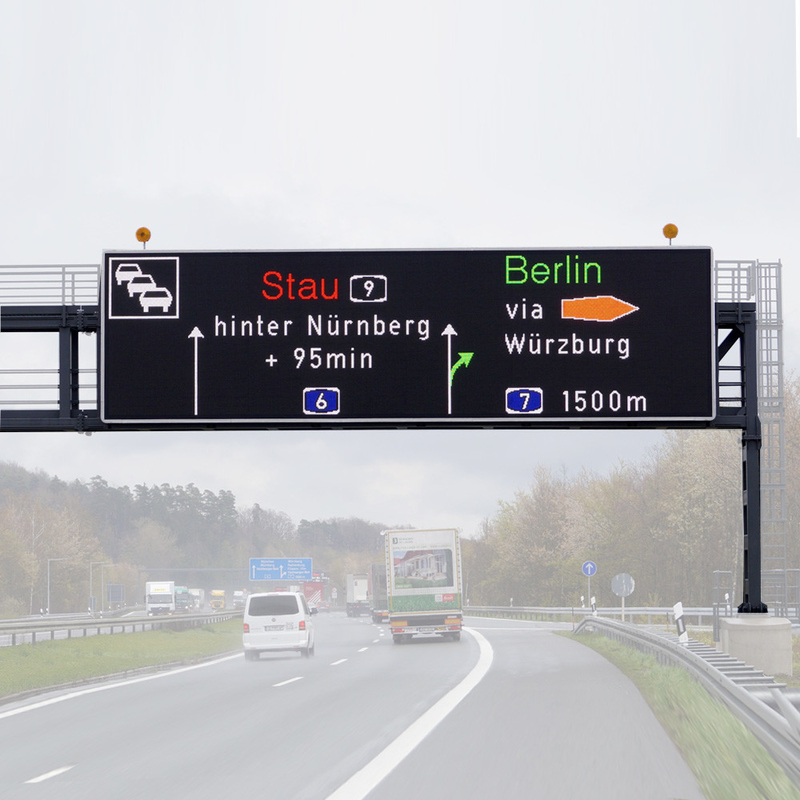

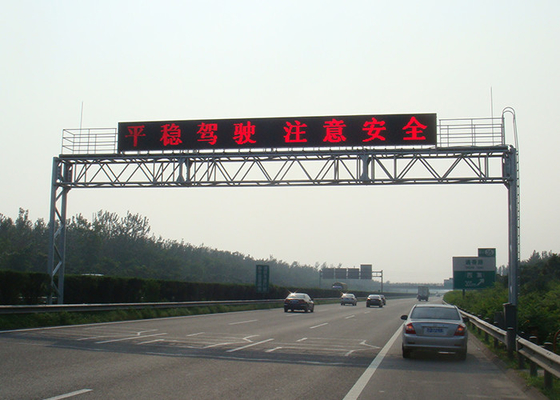

Road and highway veriable message signs
The variable information sign (variable information board) of Yaham Expressway shows the traffic information of the road section issued by the control center in letters, circles, numbers, etc., road and road condition information, road environmental information and social public service information It is helpful for drivers to adjust their driving behaviors, so as to alleviate traffic congestion, reduce traffic accidents, and improve the traffic capacity of expressway network.
|
ITEM |
OT16 |
OT20 |
OT25 |
OT31.25 |
|
PIXEL |
16mm |
20 mm |
25 mm |
31.25mm |
|
LED TYPE |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
|
PIXEL DENSITY |
3906 pixel/m2 |
2500 pixel/m2 |
1600 pixel/m2 |
1024 pixel/m2 |
|
MODULE DIMENSION |
256X128 mm |
320X160 mm |
200 x 200 mm |
250 x 250 mm |
|
MODULE RESOLUTION |
16*8 pixels |
16*8 pixels |
8*8 pixels |
8*8 pixels |
|
CABINET DIMENSION |
1024*1024mm |
960*960mm |
1000*1000mm |
1000*1000mm |
|
CABINET WEIGHT |
65kg |
65kg |
65kg |
65kg |
|
ACCESS |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
|
INGRESS PROTECTION |
IP65 |
IP65 |
IP65 |
IP65 |
|
BRIGHTNESS |
12400 NITS |
12400 NITS |
12400 NITS |
12400 NITS |
|
VIEWING ANGLE |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
|
MAX.POWER CONSUMPTION |
250W |
220W |
220W |
220W |
|
AVE.POWER CONSUMPTION |
80W |
70W |
70W |
70W |
|
DRIVIG METHOD |
STATIC |
STATIC |
STATIC |
STATIC |
|
DISPLAY CONTROL |
Asynchronous control |
Asynchronous control |
Asynchronous control |
Asynchronous control |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
100,000 |
-
New Integrated Optical Len
-
Improved flatness
-
High color consistency
-
Better contrast ratio
-
Effortless replace
-
Thinner cabinet
-
High stability
-
Global positioning system
-
Self-diagnosis and failure report
-
High protection
-
Customized color and sizes
Wireless and remote control
