EN12966 NTCIP VMS Traffic LED Display With RS232 RS485 Serial Ports
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1950-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Screen Weight: | 65kg/㎡ | LED Type: | 3 In 1 SMD + Lens |
|---|---|---|---|
| Storage Temperature: | -40~+80℃ | Operating Humidity: | 10%~90% |
| Store Humidity: | 15%~95% | Protection Level: | IP56(P3:12966) |
| High Light: | EN12966 Traffic LED Display,NTCIP Traffic LED Display,EN12966 Led Speed Limit Sign |
||
Product Description
EN12966 NTCIP VMS Traffic LED Display With RS232 RS485 Serial Ports
P20mm VMS Traffic Sign EN12966 NTCIP Traffic LED Display Roadside Highway Tunnel Variable Message Sign
Product Description
Road and highway veriable message signs
Yaham traffic variable information signs use embedded industrial control units and large-capacity memory chips, and the startup time is less than 1 second. When an exception occurs, it is immediately restored by the "watchdog". The controller has a TCP/IP (RJ45) network communication interface and two RS232/485 serial ports. The working power supply of the drive and control system adopts a highly reliable and fault-tolerant switching power supply system.
Specification
| ITEM | OT16 | OT20 | OT25 | OT31.25 |
| PIXEL | 16mm | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 3906 pixel/m2 | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 256X128 mm | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 1024*1024mm | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 250W | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 80W | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 | 100,000 |
Product Advantages
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
- High stability
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control

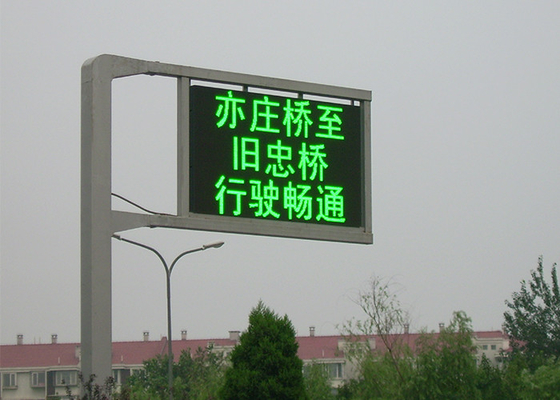

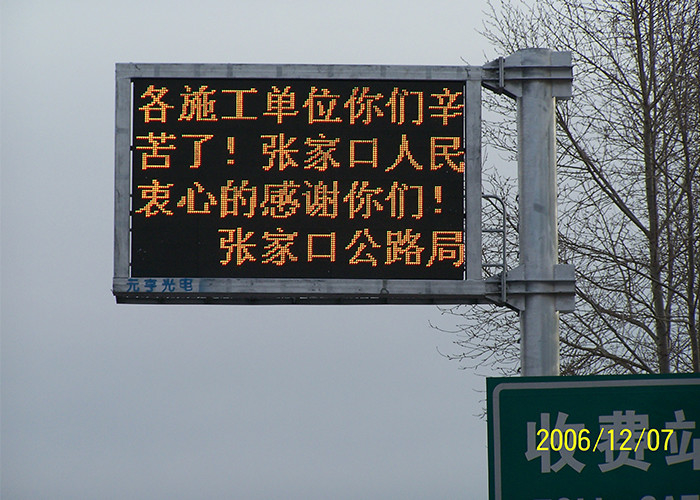

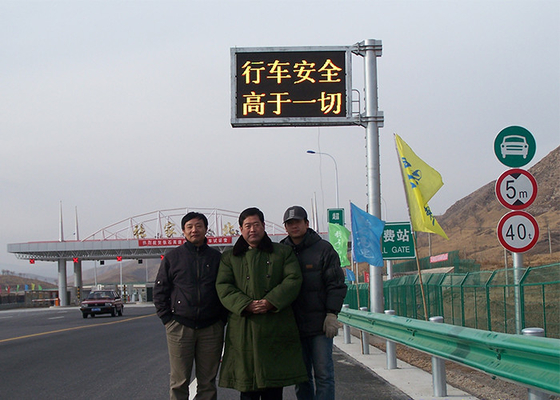

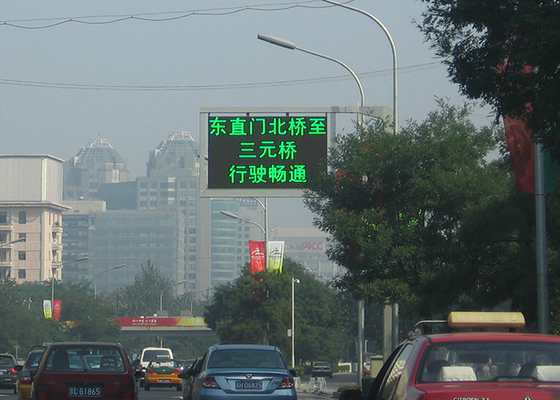

Application scenario
