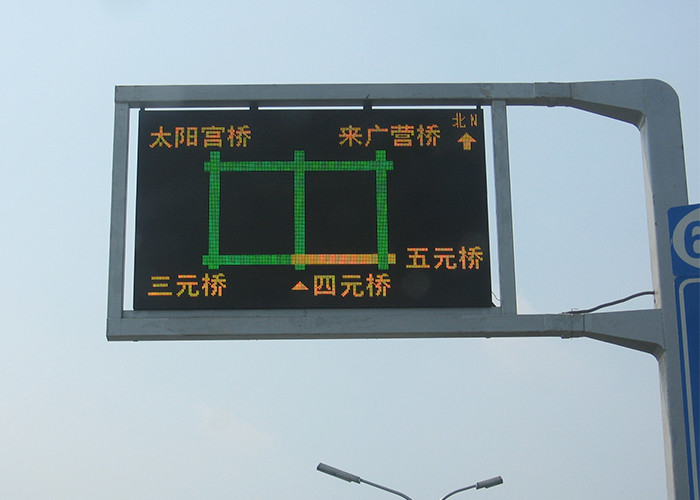

P31.25 Outdoor VMS Traffic Signs IP65 Dynamic Message Signs Multi Color For Highway
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD1960-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 25days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 2000set/per month |
|
Detail Information |
|||
| Feature: | Control System | Power Supply: | 12-24V DC/110-230V AC |
|---|---|---|---|
| Operation Temperature: | -25~+60℃ | Store Humidity: | 15%~95% |
| Protection Level: | IP56(P3:12966) | Lifespan: | >100000 Hrs |
| High Light: | Outdoor VMS Traffic Signs,VMS Traffic Signs IP65,P31.25 Dynamic Message Signs |
||
Product Description
P31.25 Outdoor VMS for Highwayign Board IP65 Dynamic Message Signs Multi Color LED Board
Variable Message Signs (VMS) are crucial components of modern mobility management systems. LED variable message signs give information and warnings, provide directions, prevent accidents and control the flow of traffic. Not only are they good for road safety and the environment, they ultimately benefit us all in our daily mobility. They are very common on motorways but are also used in urban environments and in parking managament.
With introduction of the first LEDs in the transport sector, YAHAM developed its own high performance optical lens. Using a special lens design, the RGB colors are mixed, the light from the LED is bundled and projected without loss towards the driver on the road, exactly where it is needed.
This innovative technology has been patented by us and is used in any type of YAHAM’s variable message signs.
| ITEM | OT20 | OT25 | OT31.25 |
| PIXEL | 20 mm | 25 mm | 31.25mm |
| LED TYPE | 3 in 1SMD+LENS | 3 in 1SMD+LENS | 3 in 1SMD+LENS |
| PIXEL DENSITY | 2500 pixel/m2 | 1600 pixel/m2 | 1024 pixel/m2 |
| MODULE DIMENSION | 320X160 mm | 200 x 200 mm | 250 x 250 mm |
| MODULE RESOLUTION | 16*8 pixels | 8*8 pixels | 8*8 pixels |
| CABINET DIMENSION | 960*960mm | 1000*1000mm | 1000*1000mm |
| CABINET WEIGHT | 65kg | 65kg | 65kg |
| ACCESS | FRONT /BACK | FRONT /BACK | FRONT /BACK |
| INGRESS PROTECTION | IP65 | IP65 | IP65 |
| BRIGHTNESS | 12400 NITS | 12400 NITS | 12400 NITS |
| VIEWING ANGLE | H15/-15 V8/-10 | H15/-15 V8/-10 | H15/-15 V8/-10 |
| MAX.POWER CONSUMPTION | 220W | 220W | 220W |
| AVE.POWER CONSUMPTION | 70W | 70W | 70W |
| DRIVIG METHOD | STATIC | STATIC | STATIC |
| DISPLAY CONTROL | Asynchronous control | Asynchronous control | Asynchronous control |
| LED LIFESPAN | 100,000 | 100,000 | 100,000 |
- New Integrated Optical Len
- Improved flatness
- High color consistency
- Better contrast ratio
- Effortless replace
- Thinner cabinet
-
- Global positioning system
- Self-diagnosis and failure report
- High protection
- Customized color and sizes
Wireless and remote control
1,It is the system that informs the drivers by converting the segment information shown in color on the traffic density map into text or image.
2,It allows drivers to plan their journey using this information. In this way, it helps to use the road network capacity more effectively, reduce traffic density and save time and fuel during the journey.
3,Additionally, it ensures the warning of the drivers about the changing road and weather conditions (accident, icing, fog, etc.) and contributes to the traffic and navigation safety.
