EN12966 25mm VMS Traffic Signs Solar Powered LED Trailer Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YHT-VMS-OT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1950-3000/set |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 30days |
| Payment Terms: | Western Union, T/T, L/C, D/P, D/A, MoneyGram |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Pixel Pitch: | 25mm | Screen Weight: | 65kg/㎡ |
|---|---|---|---|
| Brightness Adjustment: | 32/256 | Maintenance Method: | Rear Service |
| Compliance: | EN12966 | Feature: | Control System |
| High Light: | EN12966 VMS Traffic Signs,25mm VMS Traffic Signs,EN12966 LED Trailer Screen |
||
Product Description
EN12966 25mm VMS Traffic Signs Solar Powered LED Trailer Screen
Outdoor led trailer screen EN12966 traffic vms trailer Solar powered STOP traffic sign wifi control traffic road emergen
Product Description
Road and highway full color traffic LED screen outdoor variable message sign speed limit warning message.
Specification
|
ITEM |
OT16 |
OT20 |
OT25 |
OT31.25 |
|
PIXEL |
16mm |
20 mm |
25 mm |
31.25mm |
|
LED TYPE |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
3 in 1SMD+LENS |
|
PIXEL DENSITY |
3906 pixel/m2 |
2500 pixel/m2 |
1600 pixel/m2 |
1024 pixel/m2 |
|
MODULE DIMENSION |
256X128 mm |
320X160 mm |
200 x 200 mm |
250 x 250 mm |
|
MODULE RESOLUTION |
16*8 pixels |
16*8 pixels |
8*8 pixels |
8*8 pixels |
|
CABINET DIMENSION |
1024*1024mm |
960*960mm |
1000*1000mm |
1000*1000mm |
|
CABINET WEIGHT |
65kg |
65kg |
65kg |
65kg |
|
ACCESS |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
FRONT /BACK |
|
INGRESS PROTECTION |
IP65 |
IP65 |
IP65 |
IP65 |
|
BRIGHTNESS |
12400 NITS |
12400 NITS |
12400 NITS |
12400 NITS |
|
VIEWING ANGLE |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
H15/-15 V8/-10 |
|
MAX.POWER CONSUMPTION |
250W |
220W |
220W |
220W |
|
AVE.POWER CONSUMPTION |
80W |
70W |
70W |
70W |
|
DRIVIG METHOD |
STATIC |
STATIC |
STATIC |
STATIC |
|
DISPLAY CONTROL |
Asynchronous control |
Asynchronous control |
Asynchronous control |
Asynchronous control |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
100,000 |
Product Advantages
-
New Integrated Optical Len
-
Improved flatness
-
High color consistency
-
Better contrast ratio
-
Effortless replace
-
Thinner cabinet
-
High stability
-
Global positioning system
-
Self-diagnosis and failure report
-
High protection
-
Customized color and sizes
Wireless and remote control

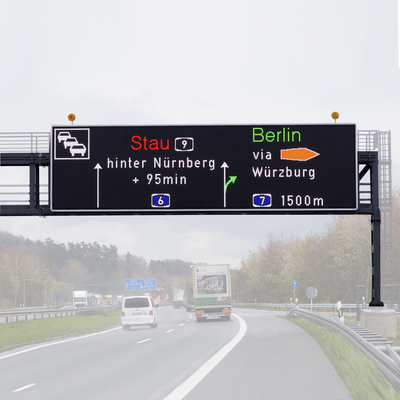

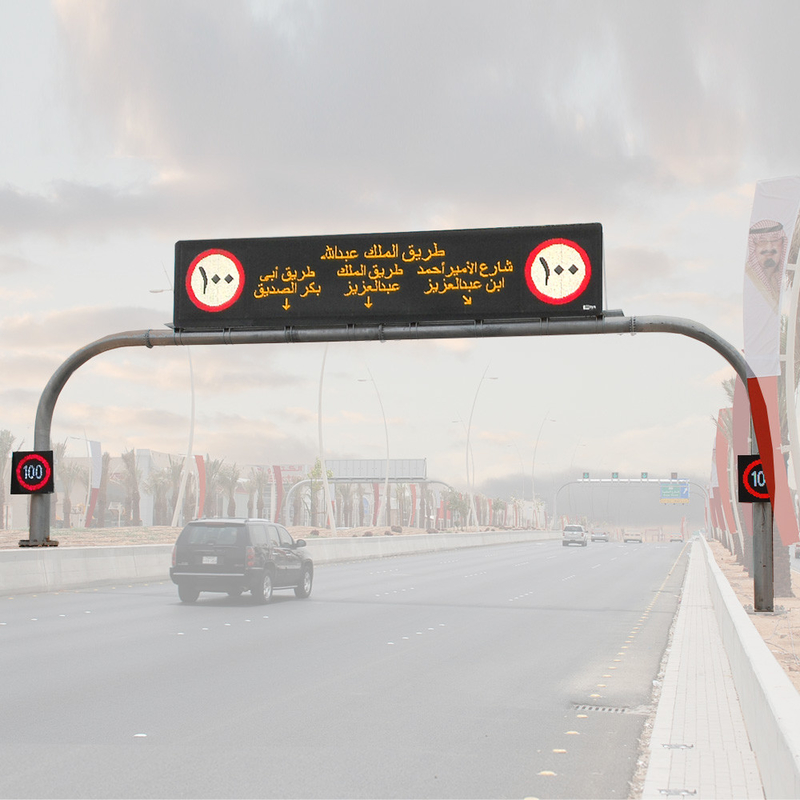

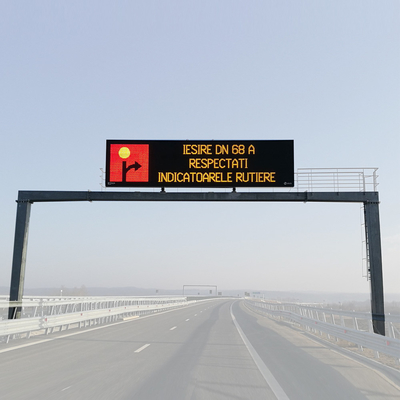

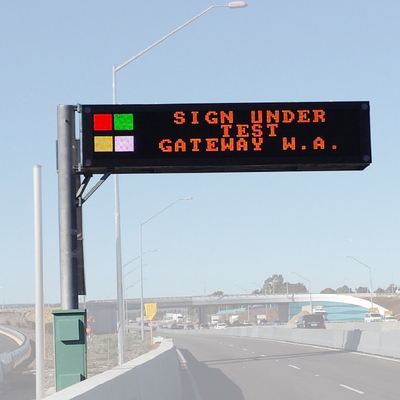

Application scenario
