Product Details:

Place of Origin: Shenzhen, China
Brand Name: YAHAM
Certification: EN12966
Model Number: YHT-VMS-D20

Payment & Shipping Terms:

Minimum Order Quantity: 22 Piece/Pieces
Price: $55-65 Piece/Pieces
Packaging Details: Wooden Box
Delivery Time: 19 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 11000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Shape: Square Warranty: 2 Years
Screen Weight: 65kg/m² Brightness Adjustment: 32/256
Cabinet Dimension: 960×960 Mm Power Supply: 12-24v /220v
EN12966: Compliance Lifespan: >100000 Hrs
High Light:

510 DIP VMS Parking

,

16mm VMS Parking

,

510 DIP LED Display Board

Product Description

Square 510 DIP VMS Parking Space Available CountingLED Display Board



Parking VMS space available led counting signs parking systems display board


Feature:
1) Epistar led chip oval led lamp used in hign brightness.
2) Quality brand power supply used,DC12V output,
3) Ideal solution for 9CM (90mm) or larger format digits;
4) 2 digits in one Module or one digits in one module, Flexible module assembly construction
for 2digits,3digits,4digits,5digits price change request.
5) Choice of fonts and led colors to match specific requirements;

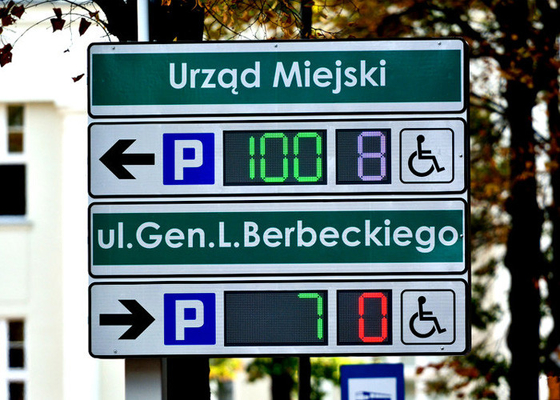

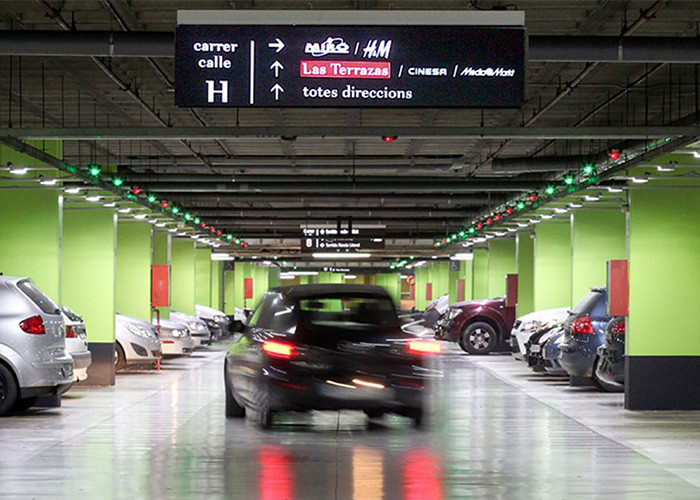

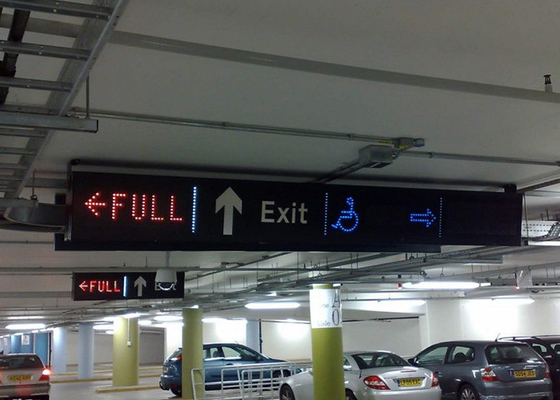

The Guidance Display Screen placed at the main entry of Parking Lot, to show the drivers the available lots of each floor and avoid traffic congestion at the parking lot entry, raising the working efficiency of parking space.
Generally, Vertical Parking Guidance Display is installed at outdoor area with highlighting and clearness in sunshine.
Entry Parking Guidance Display Screen's cabinet is waterproofing and rustproof.



Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system .

Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.



The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc.

Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.



Item YHT-VMS-D16  YHT-VMS-D20 YHT-VMS-D25
Pixel pitch 16mm 20mm 25mm
LED type 510 DIP 510 DIP 510 DIP
Pixel density 3906 pixels/m² 2500 pixels/m² 1600 pixels/m²
Cabinet material 2mm aluminum Alloy
Screen weight 65kg/m² 65kg/m² 65kg/m²
Cabinet dimension 1024×1024 mm 960×960 mm 1000×1000 mm
Brightness L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits,
Driving method Static Static Static
Brightness adjustment 32/256 32/256 32/256
Color coordinates C2: EN12966 C2: EN12966 C2: EN12966
Viewing angle H.30°, V.30°(B6:EN12966)
Contrast ratio R3: EN12966 R3: EN12966 R3: EN12966
Refresh rate >90+ Hz >90+ Hz >90+ Hz
Display control Asynchronous control system available
Signal transfer Cat 5 Network Cable, RS232,RS485 optional
Display capacity Text, image, graphics animations
Lifespan >100000 hrs >100000 hrs >100000 hrs
Power supply 12-24v /220v 12-24v /220v 12-24v /220v
Max. Power consumption 200W/m² 200W/m² 200W/m²
Avg. Power consumption 70W/m² 70W/m² 70W/m²
Operation temperature -25~ 60°C
Storage temperature -40~ 80°C -40~ 80°C -40~ 80°C
Operating humidity 10%~ 90% 10%~ 90% 10%~ 90%
Store humidity 15%~ 95% 15%~ 95% 15%~ 95%
