Outdoor P10 Parking LED Display EN12966 Car Counting Systems
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966 |
| Model Number: | YH-P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 15 Piece/Pieces |
|---|---|
| Price: | $54-65 Piece/Pieces |
| Packaging Details: | Wooden Box |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 11000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Size: | 200mm(W) 200mm(H) | Shape: | Square |
|---|---|---|---|
| Logo: | Customized Logo | Brightness: | 12400 Nits |
| Warranty: | 2 Years | Store Humidity: | 15%~ 95% |
| Operating Humidity: | 10%~ 90% | Lifespan: | >100000 Hrs |
| High Light: | P10 Parking LED Display,EN12966 Parking LED Display,P10 Parking Garage Car Counting System |
||
Product Description
Outdoor P10 Parking LED Display EN12966 Car Counting System
Vehicle Parking Lots Guide System P10 Outdoor Parking LED Display EN12966 65kg/M²

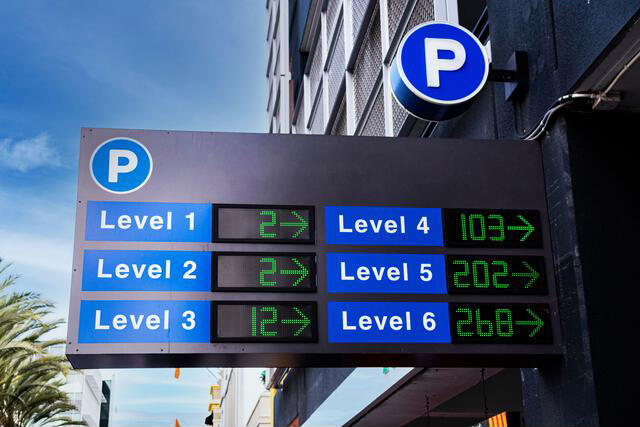

Parking lots led display
The parking guidance screen is displayed by counting the number of vehicles (vehicle spaces) entering and exiting the parking access control system. The status of the parking spaces is displayed in real time, allowing the owner to select the optimal parking position.
Parking lots led display is mainly used for parking floor, the area is large, more parking space in more places, installed in the entrance of the yard and floor open intersection, according to the division of parking places in the area/floor to set the number of correlation on the corresponding display screen LED small, available form of Numbers and words for a real-time display the current regional/free parking floor parking lot number, To provide a visual direction for the car owners preparing for the entrance, improve the efficiency of entering and finding a seat.
Product features
1. Dual-color display of free parking space, clear and clear;
2. High brightness, wide vision, modular structure, high reliability;
3. Direction arrow "→", "↑", "←" and numbers, the green number represents the number of free parking Spaces, and the red font represents the number of full parking Spaces or warning parking Spaces;
4. The type of display screen can be conveniently set as one-way, two-way and three-way parking guide display screen by software;
5. Real-time release of intelligent active guidance;
6. Display content, color and arrow direction can be set and modified according to the system software;
7.TCP/IP network communication, real-time display of the number of parking lots change.
| Item | YHT-VMS-D10 | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D25 | YHT-VMS-D31.25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 346 DIP | 346 DIP | 510 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 10000 pixels/m² | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 160×160 mm | 192×192 mm | 256×256 mm | 320×160 mm | 200×200 mm | 250×125 mm |
| Module resolution | 16×16 | 16×16 | 16×16 | 16×8 | 8×8 | 8×4 |
| Cabinet material | 2mm aluminum Alloy | |||||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||||
| Driving method | 4S | 2S | Static | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | / | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | |||
| Contrast ratio | / | / | R3: EN12966 | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||||
| Display capacity | Text, image, graphics animations | |||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 300W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 100W/m² | 70W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
