EN12966 960×960mm VMS Parking Single Row Digital LED Parking Guide
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966 |
| Model Number: | YHT-VMS-D20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 26 Piece/Pieces |
|---|---|
| Price: | $55-65 Piece/Pieces |
| Packaging Details: | Wooden Box |
| Delivery Time: | 28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8500 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Parking | Shape: | Square |
|---|---|---|---|
| Logo: | Customized Logo | Warranty: | 2 Years |
| Brightness: | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | Driving Method: | Static |
| Viewing Angle: | H.30°, V.30°(B6:EN12966) | Avg. Power Consumption: | 70W/m² |
| High Light: | EN12966 VMS Parking,960×960mm VMS Parking,EN12966 Digital LED Display |
||
Product Description
EN12966 960×960mm VMS Parking Single Row Digital LED Parking Guide
Single Row One Arrow Three Digit LED Parking Guide Display EN12966 960×960 mm

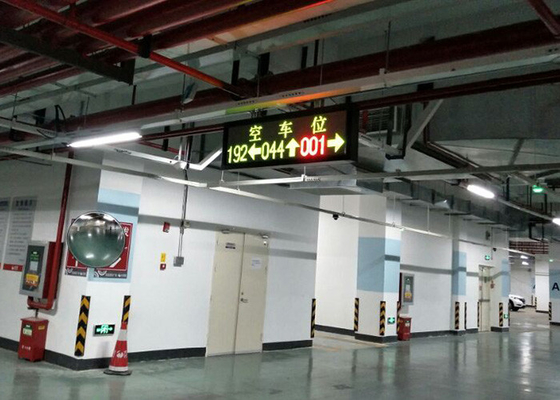

Parking lots led display is mainly used for parking floor, the area is large, more parking space in more places, installed in the entrance of the yard and floor open intersection, according to the division of parking places in the area/floor to set the number of correlation on the corresponding display screen LED small, available form of Numbers and words for a real-time display the current regional/free parking floor parking lot number, To provide a visual direction for the car owners preparing for the entrance, improve the efficiency of entering and finding a seat.
YAHAM's Parking space indicator displays are uniquely designed and engineered for PGS(Parking Guidance Syestem),the sign face to the placement and terface with the parking equiment, digital alpha number digits in amber/red /green color for parking space available ,green arrow for direction to driver.Our signs are designed,engineered and manufactured to your requirements.
1. Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
2. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system .
3. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system.
4. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system.
5. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
Features
● Low voltage driver IC maximizes energy savings.
● Automatic brightness adjustment of the screen to ensure daytime brightness and no glare at night.
● Box 360 degree sealed IP65 protection, double door active cooling structure design.
● Industrial power distribution system components.
| Item | YHT-VMS-D10 | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm |
| LED type | 346 DIP | 346 DIP | 510 DIP | 510 DIP |
| Pixel density | 10000 pixels/m² | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||
| Driving method | 4S | 2S | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | / | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | |
| Contrast ratio | / | / | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 300W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 100W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
