7000nit VMS Parking Guidance Long Lifespan Vehicle Counting System
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966 |
| Model Number: | YHT-VMS-D12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 35 Piece/Pieces |
|---|---|
| Price: | $54-65 Piece/Pieces |
| Packaging Details: | Wooden Box |
| Delivery Time: | 28 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Size: | 200mm(W) 200mm(H) | Shape: | Square |
|---|---|---|---|
| Logo: | Customized Logo | Store Humidity: | 15%~ 95% |
| Lifespan: | >100000 Hrs | Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional |
| Brightness Adjustment: | 32/256 | Viewing Angle: | H.110°, V.50° |
| High Light: | 7000nit VMS Parking,200mm VMS Parking,7000nit Vehicle Counting System |
||
Product Description
7000nit VMS Parking Guidance Long Lifespan Vehicle Counting System
Parking Guidance and Vehicle Counting System LED Display Double Ways Screen Lifespan >100000 hrs
Product Description

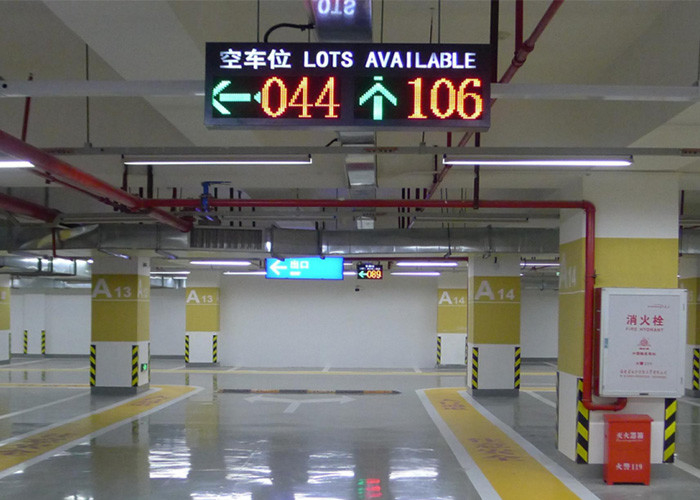

1- Guidance Display Screen is the information release module of the Parking Guidance System, which placed at the parking lot entry or inside parking channel's intersection, to display information released by system of the available lots in real time, so the driver can get clear guidance.
According to the different applications, Guidance Display Screen can be divided into two types:
Entry Parking Guidance Display Screen and Hoisting Parking Guidance Display Screen.

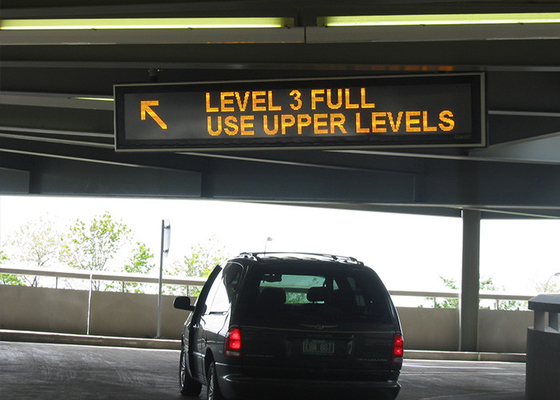

2- The Guidance Display Screen placed at the main entry of Parking Lot, to show the drivers the available lots of each floor and avoid traffic congestion at the parking lot entry, raising the working efficiency of parking space.
Generally, Vertical Parking Guidance Display is installed at outdoor area with highlighting and clearness in sunshine.
Entry Parking Guidance Display Screen's cabinet is waterproofing and rustproof.
Feature and Advantage
1. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system.
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system.
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4. Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system .
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
| Item | YHT-VMS-D10 | YHT-VMS-D12 | YHT-VMS-D16 | YHT-VMS-D20 | YHT-VMS-D25 | YHT-VMS-D31.25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 346 DIP | 346 DIP | 510 DIP | 510 DIP | 510 DIP | 510 DIP |
| Pixel density | 10000 pixels/m² | 3944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 160×160 mm | 192×192 mm | 256×256 mm | 320×160 mm | 200×200 mm | 250×125 mm |
| Module resolution | 16×16 | 16×16 | 16×16 | 16×8 | 8×8 | 8×4 |
| Cabinet material | 2mm aluminum Alloy | |||||
| Screen weight | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² | 65kg/m² |
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3: EN12966 (Red: >3100nits, Green>3720nits,Blue>1240nits, Amber>7440nits, | |||||
| Driving method | 4S | 2S | Static | Static | Static | Static |
| Brightness adjustment | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 | 32/256 |
| Color coordinates | / | / | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H.110°, V.50° | H.110°, V.50° | H.30°, V.30°(B6:EN12966) | |||
| Contrast ratio | / | / | R3: EN12966 | R3: EN12966 | R3: EN12966 | R3: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||||
| Signal transfer | Cat 5 Network Cable, RS232,RS485 optional | |||||
| Display capacity | Text, image, graphics animations | |||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v | 12-24v /220v |
| Max. Power consumption | 300W/m² | 300W/m² | 200W/m² | 200W/m² | 200W/m² | 200W/m² |
| Avg. Power consumption | 100W/m² | 100W/m² | 70W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ 60°C | |||||
| Storage temperature | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C | -40~ 80°C |
| Operating humidity | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% | 10%~ 90% |
