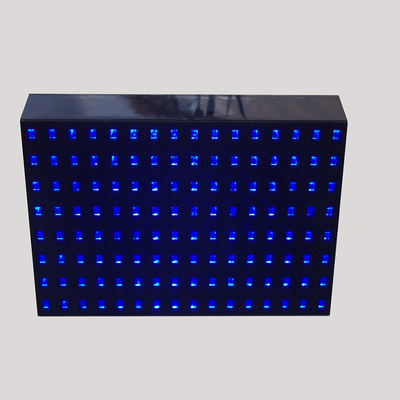

P20 RGB LED Matrix Message Display EN12966 NTCIP VMS Traffic Control
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 32 Square Meter/Square Meters |
|---|---|
| Price: | $1290-2750 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4650 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 16mm | Pixel Density: | 3906 Pixels/m² |
|---|---|---|---|
| Module Dimension: | 256×128 Mm | Display Capacity: | Text, Image, Graphics Animations |
| Operating Humidity: | 10%~ 90% | EN12966: | Compliance |
| High Light: | P20 LED Matrix Message Display,P20 VMS Traffic Control,EN12966 Dot Matrix Display Module |
||
Product Description
P20 RGB LED Matrix Message Display EN12966 NTCIP VMS Traffic Control
En12966 VMS Traffic Sign P20 RGB Led Dot Matrix Display Module NTCIP 65kg/M²
Application:
It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
--Sleep mode:
YHT-VMS product,in the blank area, only a 10uA current will flow in each channel under sleep mode. A sample calculation for energy saving is showingas follows. YHT-VMS product will save around 800 times for every single IC driver than general VMS!
--Dual Voltage
Due to lighting chip difference inside, Red/Amber LED has lower threshold voltage to light up than Green/Blue LED. So, we applied dual voltage channel to drive two types of LEDs. Surplus energy is saved by this technology. Using separate voltage driving board to achieve energy-saving purpose:specific voltages are applied to different lamps.
1, Module package uses advanced soft silicone, the elastic, strong anti-aging ability.
2, Power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the performance is unstable due to mechanical failure when the cooling fan caused.
3, Use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
The control system only with the IPC, and higher reliability.
4, Use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity ofthe transmission display, reducing the complexity of the control system to improve the stability of the prod
uct.
5. Support four primary colors randomly matched display, highlighting, high transparency.
6. Exquisite structure design, each luminous pixel luminous uniform, no Mosaic phenomenon;
7. Support manual and automatic schedule intelligent brightness adjustment.
| Item | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT31.25 |
| Pixel pitch | 12mm | 16mm | 20mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1024 pixels/m² |
| Module dimension | 192×192 mm | 256×128 mm | 320×160 mm | 250×250 mm |
| Cabinet material | 2mm aluminum Alloy | |||
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||
| Brightness adjustment | 32/256 | |||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |||
| Max. Power consumption | 380W/m² | 250W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 120W/m² | 80W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||
| Storage temperature | -40~ +80°C | |||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance |
