Digital Warning P16 Variable Message Sign LED Matrix Message Module
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Square Meter/Square Meters |
|---|---|
| Price: | $1350-2550 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 19 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5500 Square Meter/Square Meters Per Month |
|
Detail Information |
|||

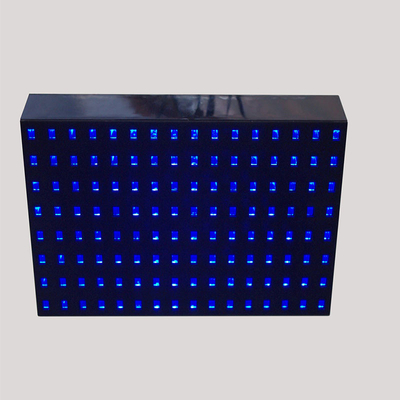

| Pixels: | 16mm | Module Dimension: | 256×128 Mm |
|---|---|---|---|
| EN12966: | Compliance | Display Capacity: | Text, Image, Graphics Animations |
| Refresh Rate: | >90+ Hz | Viewing Angle: | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| High Light: | P16 Variable Message Sign,EN12966 Variable Message Sign,P16 LED Matrix Module |
||
Product Description
Digital Warning P16 Variable Message Sign LED Matrix Message Module
Variable Message Sign Digital Warning Sign Traffic P16 LED Matrix Message Module
1. Second optical lens
It is well know that vms upper viewing angle makes light pollution 505 loss, By applying second lens, we can manufacture 0 ipper viewing angle 0 light pollutions and 0 energy loss
2. Minimized power consumption
When a screen is displaying message, for most cases, a large proportion of screen maintain black, Our product is able to detect it and turn this area into sleeping mode .
3. Lighting shock procetion
We have equipped lighting shock component of industrial level, High quality components include direct-lighting proctection, signal protection. power surge protections
4. Automatic/manual brightness control
Our digital photo sensor supports as many as 256 dimming levels with outside luminace range from 1 lx to 65535lx,which enables our display screen to adjust to appropriate luminance level according to outside environment luminance reading will also be reported to traffic control center
5. Double Layer door heat dissipation without fan
Double layer door housing, heat dissipation by aluminum conducting, which makes the MS internal temperature be low, Low temperature can improve all components performance, more energy saving
6. Dual voltage Input
Due to lighting chip difference, red/amber led has lower threshold voltage to light up than green/blue LED,so we applied dual voltage chhannel to drive two types of LEDS, surplus enrgy is saved by this technology
7. Large storage memory
The build-in flash emory can strores as many as 2000 images and characters at a time
8. High Ingress protection
Our cabinet is fully sealed to enure ingress protection level up to IP65
| Item | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 16×8 | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | |||
| Cabinet dimension | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||
| Brightness adjustment | 32/256 | |||
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Avg. Power consumption | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||
| Storage temperature | -40~ +80°C | |||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance |
