P20mm LED Matrix Message Display Traffic Variable Message Display
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 28 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2650 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 23 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4250 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 20mm | Driving Method: | Static |
|---|---|---|---|
| Color Coordinates: | C2: EN12966 | Refresh Rate: | >90+ Hz |
| Display Control: | Asynchronous Control System Available | Store Humidity: | 15%~ 95% |
| High Light: | P20mm LED Matrix Message Display,NTCIP LED Matrix Message Display,P20mm Variable Message Display |
||
Product Description
P20mm LED Matrix Message Display Traffic Variable Message Display

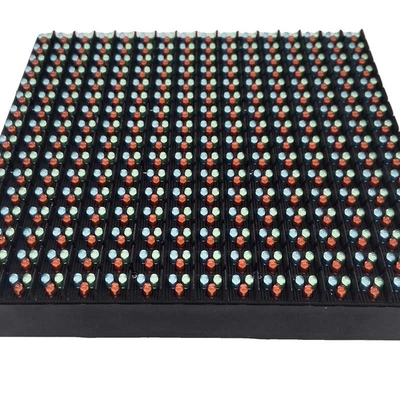

P20 Mm LED Module Smd With Lens EN12966 Outdoor Traffic Module
the led traffic lens display screen has the characteristics of more uniform light emission, better light mixing effect and more energy saving.
Lens beads using patch technology, quality is more stable, light shape can be customized and other characteristics, mainly used in led variable message signs, Led variable speed limit sign, Etc channel indicator, Led construction guide card and other occasions.
LED guidance screen is the product of the combination of intelligent transportation system and LED display technology. Its main role is to make real-time or delayed information transmission and road guidance for incoming traffic flow, and to intervene and manage traffic flow through advance information sharing. LED guidance screen has LED display of intelligence and operability, with the intelligent system of traffic guidance screen, can timely put forward early warning, road guidance and notification notification, etc.
Better contrast ratio
The surface of each optical len is designed with carved strips that could tremendously reduce light reflection.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
High colour consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the colour more consistent and content more readble.
WAY YAHAM
Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 32×16 | 16×16 | 16×8 | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | |||||
| Screen weight | 65kg/m² | |||||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||||
| Brightness adjustment | 32/256 | |||||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||||
| Display capacity | Text, image, graphics animations | |||||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |||||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||||
| Storage temperature | -40~ +80°C | |||||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
| Maintenance method | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance | compliance | compliance |
