P20 1R1G1B outdoor lED display boards Digital Highway Traffic VMS
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 26 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2500 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 22 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4180 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 20mm | Lifespan: | >100000 Hrs |
|---|---|---|---|
| Maintenance Method: | Rear Service | Store Humidity: | 15%~ 95% |
| Color Coordinates: | C2: EN12966 | Max. Power Consumption: | 220W/m² |
| High Light: | 1R1G1B Outdoor LED Display Boards,P20 Digital Traffic Sign,1R1G1B Highway Digital Signs |
||
Product Description

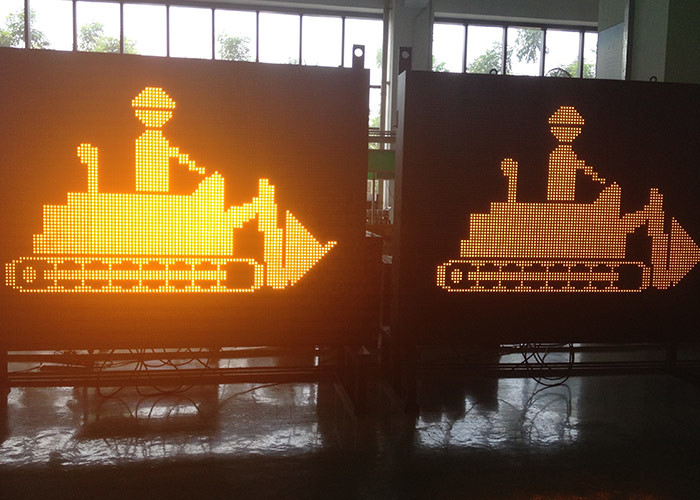

P20 1R1G1B Outdoor LED Display Boards Digital Highway Traffic VMS
Digital Traffic Highway Vms P20 Full Color (1R1G1B) LED Matrix Message Display
Integrate that latest manufacture technology and combining the patch manufacturing technology with the lens technology, the invention not only achieve the guarantee of the patch technology on the product stability, but also achieves the color mixing effect of the lens lamp bead.
Application:
It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
Product Features

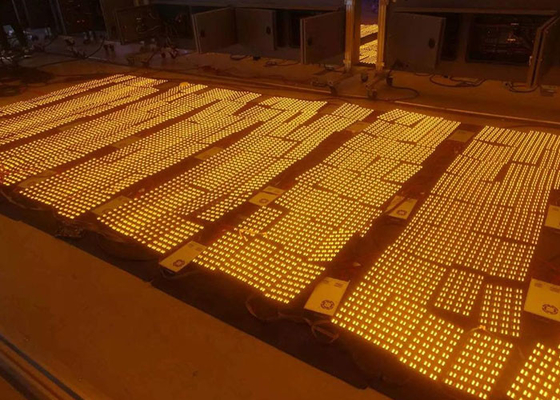

1, Display module having the versatility and interchangeability can be composed of different display colors and different sizes according to needs.
2, Double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
3, Pixel module junction box and use the "O"ring, with good moisture anti-leakage performance.
4, Module package uses advanced soft silicone, the elastic, strong anti-aging ability.
| Pixel pitch | 10mm | 16mm | 20mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1024 pixels/m² |
| Module dimension | 320×160 mm | 256×128 mm | 320×160 mm | 250×250 mm |
| Module resolution | 32×16 | 16×8 | 16×8 | 8×8 |
| Screen weight | 65kg/m² | |||
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||
| Brightness adjustment | 32/256 | |||
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Display capacity | Text, image, graphics animations | |||
| Power supply | 12-24V DC/110-230V AC | |||
| Avg. Power consumption | 130W/m² | 80W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||
| Storage temperature | -40~ +80°C | |||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance |
