EN12966 LED Lane Control Signs Intersection Variable Message Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | EN12966 |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Display Content: | 4 Patterns : Red Cross, Green Downward Arrow, Amber Left&rightward Arrows | Viewing Angle: | Horizontal ±15 Degree/Vertical ±15 Degree |
|---|---|---|---|
| Dimming Level: | 32 | Contrast Ratio: | According To EN12966 R2 |
| Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G | Communication Protocol: | Standard Yaham YH31 Protocol , Modbus, NTCIP Etc, Also Available For Other Documantated Protocol. |
| Brightness Control: | Photo Sensors To Monitor The Ambient Light Level; Two Pre-set Luminance Levels, One For Normal Daytime And One For Night-time Or Low Ambient Light Level. | ||
| High Light: | EN12966 LED Lane Control Signs,VMS Intersection Lane Control Signs,EN12966 LED VMS Signs |
||
Product Description

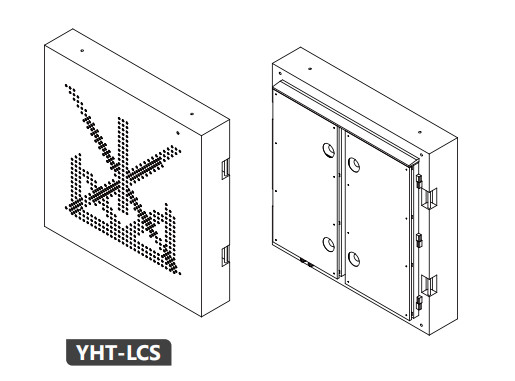

EN12966 LED Lane Control Signs Intersection Variable Message Display
Red Cross Green Arrow Lane Control Sign Variable Message Lane Management Led Display Way Finding Sign
Product description
We have three kinds of led displays for lane control and way finding. 80x800mm, 1000x1000mm, 1200x1200mmm. One can display both red cross, green arrow in one signIt and stop is optional. We can provide whole set product (Cabinet Housing with LED Display Board inside) or provide only Led Display Board without Cabinet Housing.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

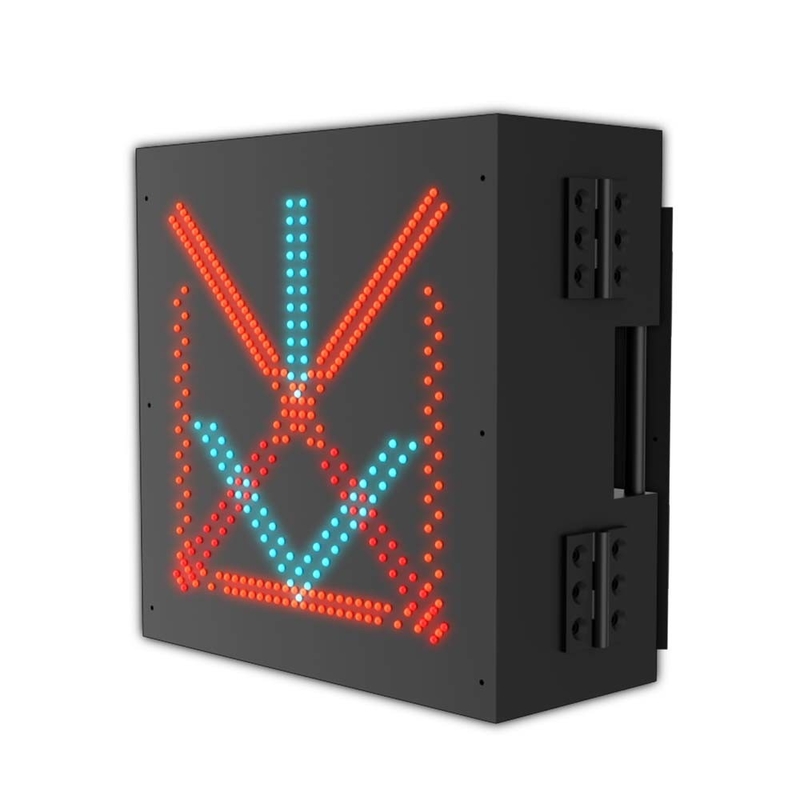

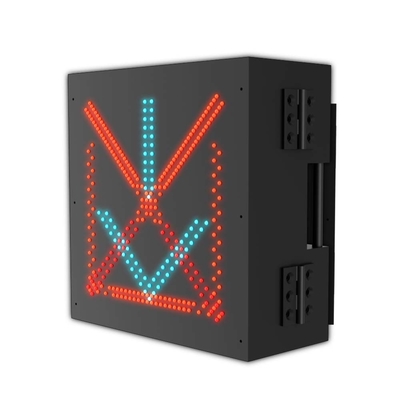

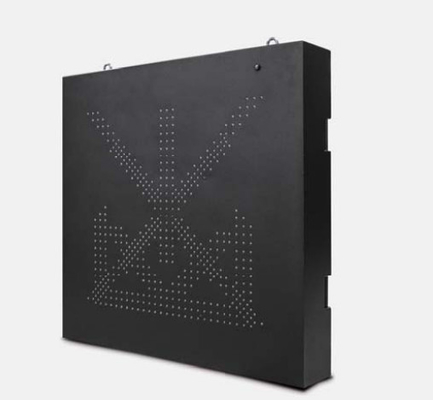

Product display
