EN12966 P20 P16 Traffic LED Arrow Sign For Road Tunnel Motorway
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Brightness: | 8,000cd/m² | Dimming Level: | 32 |
|---|---|---|---|
| Power Supply: | Optional 110 - 230AV / 12V - 24V DC | Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
| Brightness Control: | Photo Sensors To Monitor The Ambient Light Level; Two Pre-set Luminance Levels, One For Normal Daytime And One For Night-time Or Low Ambient Light Level. | Operating Temperature: | -30°c~+60°c |
| High Light: | EN12966 LED Arrow Sign,P16 LED Arrow Sign,P20 LED Traffic Safety Signs |
||
Product Description
EN12966 P20 P16 Traffic LED Arrow Sign For Road Tunnel Motorway
VHT-LCS Lane Control Sign En12966 P20 P16 Traffic Safety For Road Tunnel Motorway Led Arrow Sign
Product description
ARROW-CROSS, also known as arrow-cross are Variable message signs (VMS) or Line Control Sign (LCS) is one of the various LED variable message signs manufactured by Yaham, that is available in 4 different sizes: diameter 200mm, diameter 300mm, 600x600mm and 800x800mm. It is also possible to choose between the basic version of 2 aspects (red and green arrow) and 3 or 4 aspects (including diagonal amber arrows on the right or left).
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

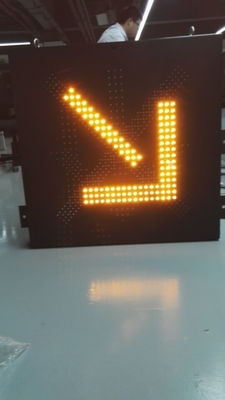

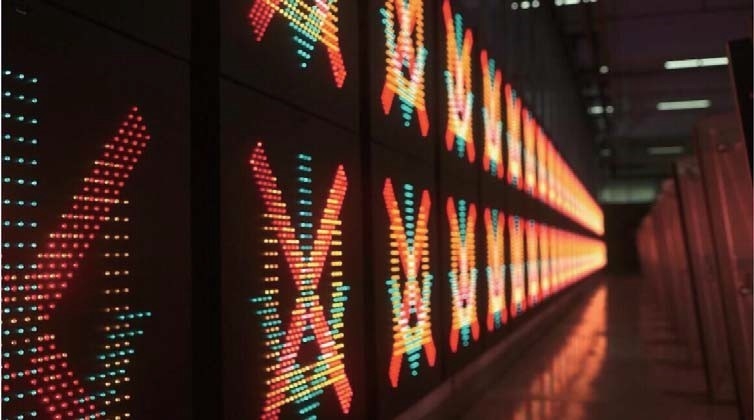

Product display
