DIP LED Red Cross Green Arrow Sign Stop Go Roadway Indicator Signal
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Display Content: | 4 Patterns : Red Cross, Green Downward Arrow, Amber Left&rightward Arrows | Viewing Angle: | Horizontal ±15 Degree/Vertical ±15 Degree |
|---|---|---|---|
| Viewing Distance: | 20m-200m | Luminous Uniformity: | ≦5:1 |
| Power Supply: | Optional 110 - 230AV / 12V - 24V DC | Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
| High Light: | DIP LED Green Arrow Sign,RS485 Green Arrow Sign,DIP LED Red Arrow Traffic Light |
||
Product Description
DIP LED Red Cross Green Arrow Sign Stop Go Roadway Indicator Signal
Lane Control Sign Red Cross Green Arrow Red Cross Green Arrow Stop Go Roadway Indicator Signal
Product description
Yaham led lane control signs. The dimming control circuit design: with photosensitive effect itself, can automatically adjust the brightness according to the environment. The voltage control circuit design for voltage type LED light-emitting diodes and internal circuit protection. Protection grade, IP65,multiple sealing,waterproof and dustproof, anticorrosion design.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

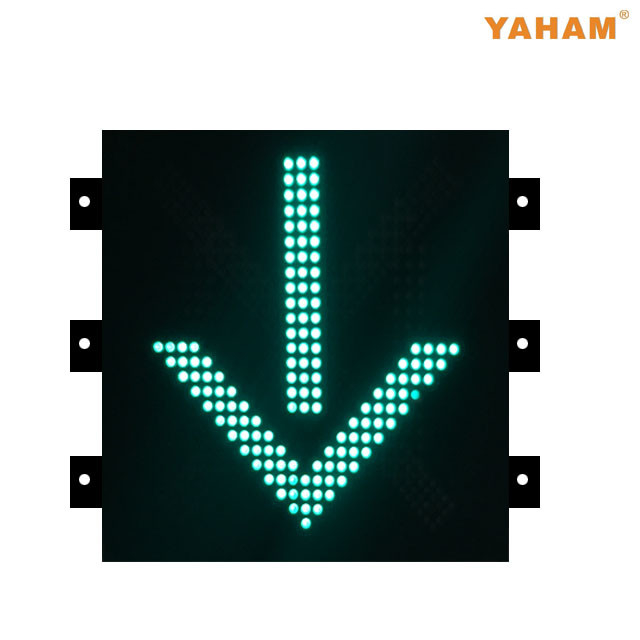

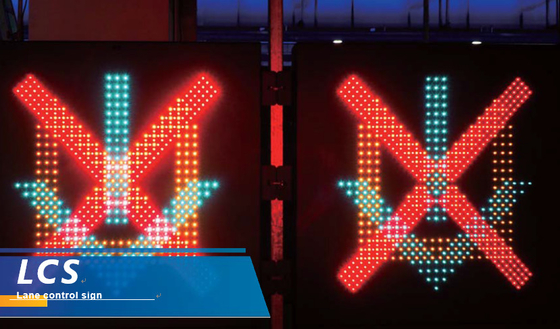

Product display
