5mm Chips DIP LED Lane Control Signs Stop Go Traffic Signal Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| LEDs: | 5mm Chips DIP High Intensity LED | Viewing Distance: | 20m-200m |
|---|---|---|---|
| Brightness: | 8,000cd/m² | Communication Protocol: | Standard Yaham YH31 Protocol , Modbus, NTCIP Etc, Also Available For Other Documantated Protocol. |
| Case Material/Rating: | Aluminum Steel With Powder Coating/IP65 | ||
| High Light: | 5mm Chips LED Lane Control Signs,RS485 LED Lane Control Signs,DIP LED Traffic Signal Board |
||
Product Description
5mm Chips DIP LED Lane Control Signs Stop Go Traffic Signal Board
High Quality Stop Go Lane Control Sign Board Led Traffic Signal Signs Led Lane Control Signsss
Product description
Yaham led lane control signs High brightness:all the chips are offered high quality Epistar chip and refined, using the standard form of CPV, ultra high brightness and even color. Low power consumption:low power LED products, companies tend to low carbon, environmental protection and energy saving in the design. Long life:Epistar chip,Epistar brand, quality assurance.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

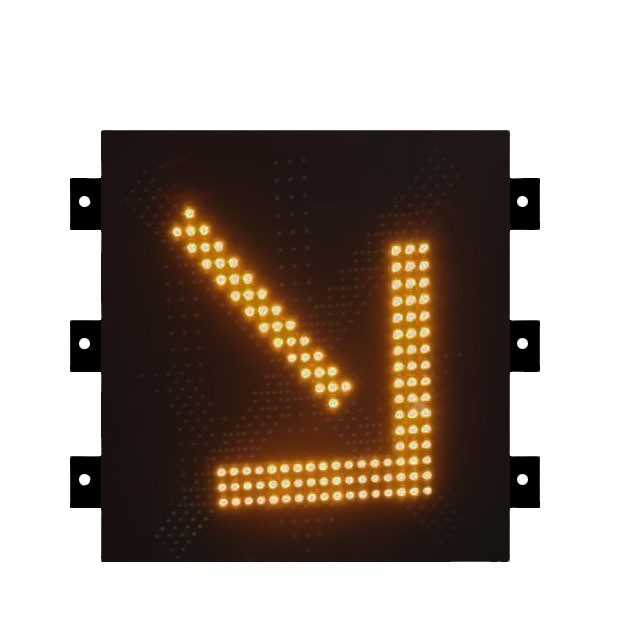

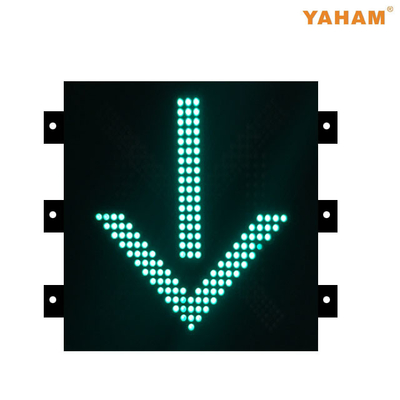

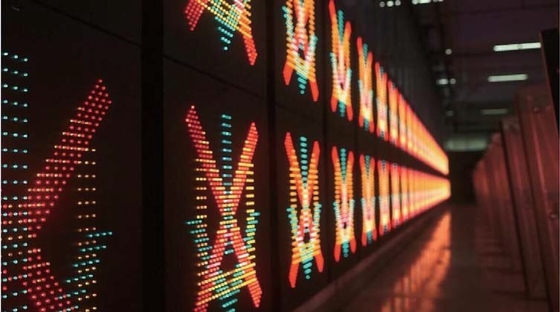

Product display
