1000x1000mm LED Lane Control Signs Indicating Light For Tunnel Toll Gate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| LEDs: | 5mm Chips DIP High Intensity LED | Display Content: | 4 Patterns : Red Cross, Green Downward Arrow, Amber Left&rightward Arrows |
|---|---|---|---|
| Dimming Level: | 32 | Contrast Ratio: | According To EN12966 R2 |
| Communication Protocol: | Standard Yaham YH31 Protocol , Modbus, NTCIP Etc, Also Available For Other Documantated Protocol. | Case Material/Rating: | Aluminum Steel With Powder Coating/IP65 |
| High Light: | 1000x1000mm LED Lane Control Signs,Modbus LED Lane Control Signs,800*800mm Lane Closure Signs |
||
Product Description
1000x1000mm LED Lane Control Signs Indicating Light For Tunnel Toll Gate
High Visibility 1000x1000mm Red Cross Green Arrow Lane Indicating Light For Tunnel And Toll Gate
Product description
Lane Control Signs (LCS) powered by Yaham, provide lane status to en-route motorists through high-quality LED displays. Strategically placed, these signs improve overall traffic flow and commuter safety by informing drivers of lane closures and directing traffic to open lanes. LCS applications are commonly used in Active Traffic Management corridors, airport entrances, toll lanes, and parking garages.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

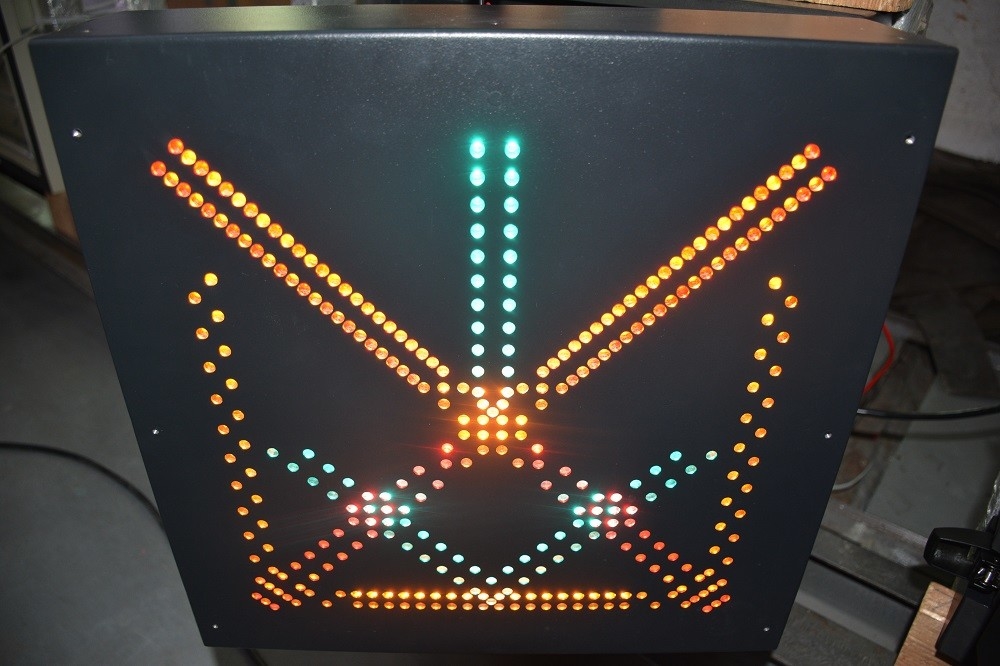

Product display
