5mm Chips DIP LED Traffic Message Board intersection lane control sign
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| LEDs: | 5mm Chips DIP High Intensity LED | Viewing Distance: | 20m-200m |
|---|---|---|---|
| Contrast Ratio: | According To EN12966 R2 | Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
| High Light: | 5mm Chips LED Traffic Message Board,RS232 LED Traffic Message Board,DIP LED Intersection Lane Control Sign |
||
Product Description
5mm Chips DIP LED Traffic Message Board Intersection Lane Control Sign
Yaham Led Lane Control Signs Guaranteed Quality Road Led Traffic Message Slow Moving Traffic Arrow Control Sign
Product description
When mounting the Yaham led Lane Control Signs, follow the requirements as stated in Chapter 4J.03 Design of Lane-Use Control Signals. With Lane Control Signs, you can inform drivers to keep right, merge left, no passing, lane turns left or more. Ensure Lane Control Signs are posted to keep traffic moving in the correct direction.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

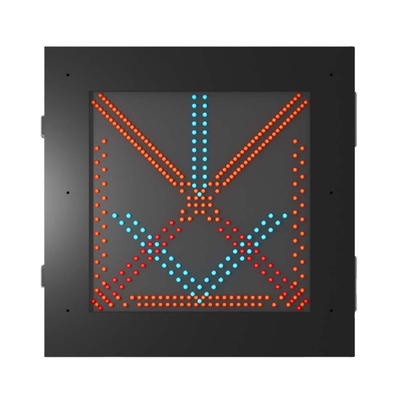

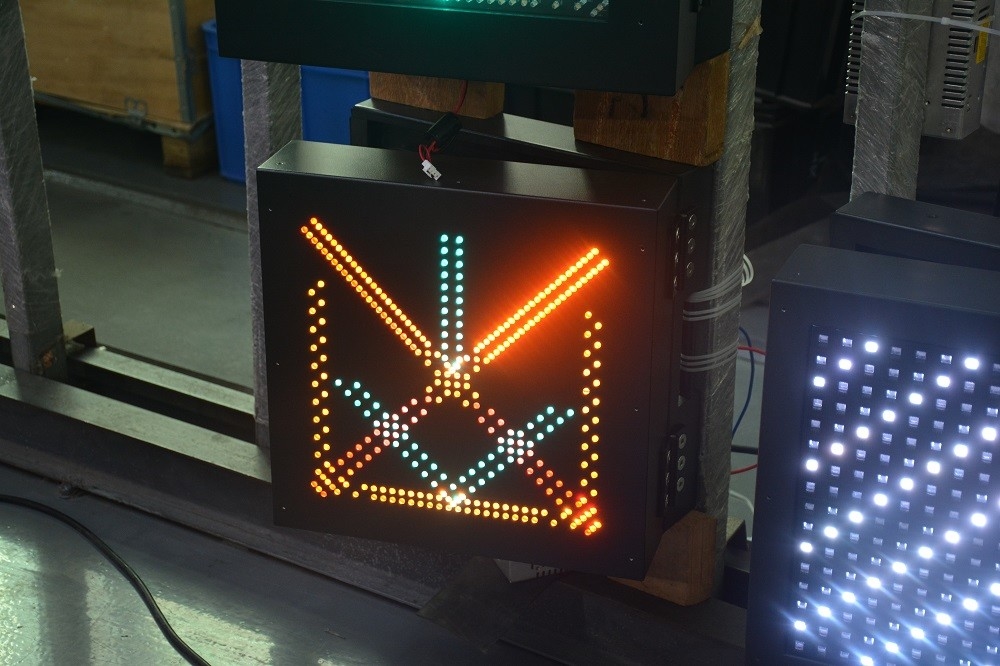

Product display
