Overload protection LED Lane Control Signs Blank Out Changeable Road
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Cabinet Size: | 800x800mm,1000x1000mm,1200x1200mm | Display Content: | 4 Patterns : Red Cross, Green Downward Arrow, Amber Left&rightward Arrows |
|---|---|---|---|
| Viewing Distance: | 20m-200m | Dimming Level: | 32 |
| High Light: | OLP LED Lane Control Signs,1200x1200mm LED Lane Control Signs,IP65 LED Changeable Road Signs |
||
Product Description
Overload Protection LED Lane Control Signs Blank Out Changeable Road
LED Changeable Traffic Lane Sign Directional LED Blank-Out Lane Control Sign Right Turn Only
Product description
Yaham led Lane Control Signals are designed to maintain efficient traffic flow. These signals are used to indicate toll booth lanes open or closed, direct vehicles out of closed lanes in tunnels, and manage traffic flow in changeable lanes. Circuits are built using "chains" of LED's to avoid catastrophic failure of the signals. Power supplies are discrete for each color and are regulated over a wide voltage range for consistent light output.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection (OLP) and Short circuit Protection (SCP) |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

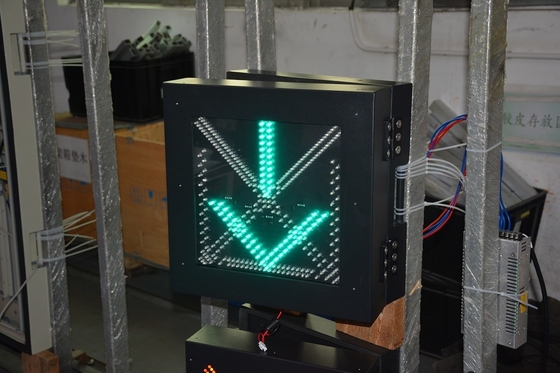

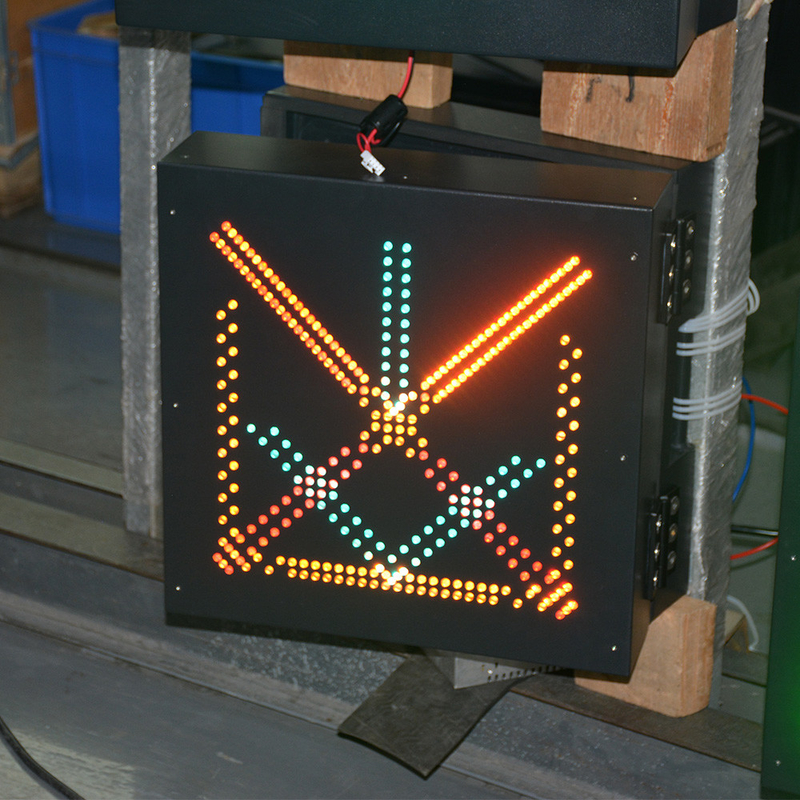

Product display
