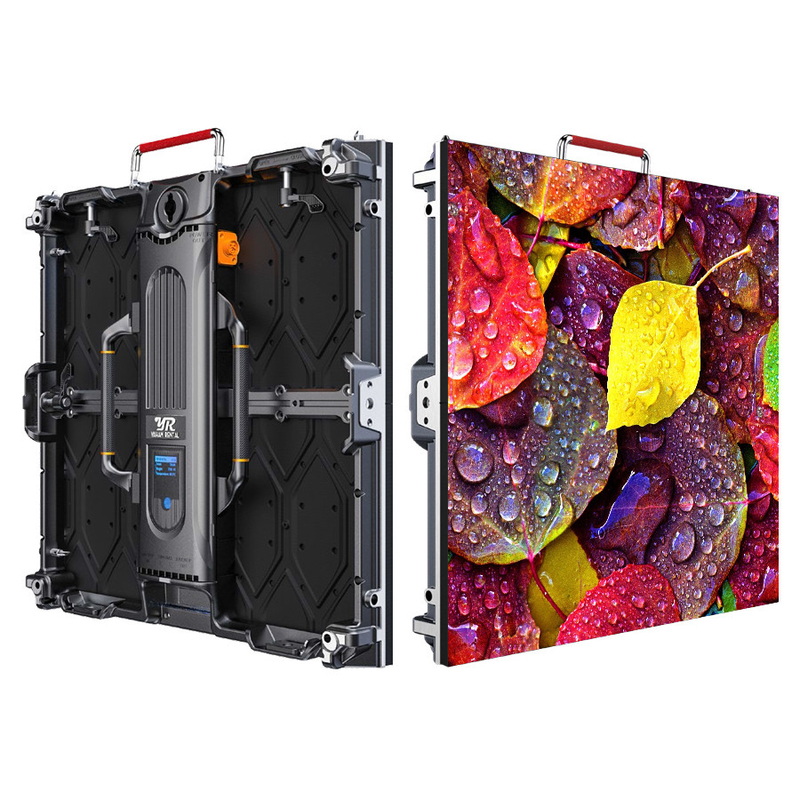

IP43 Outdoor Rental LED Display Screen 500*500mm Advertising Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Product: | Led Rental Screen | Application: | Outdoor/indoor |
|---|---|---|---|
| Panel Size: | 500*500mm | Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm |
| Scenarios: | Outdoor Billboards, Events, Exhibitions, Weddings, Gyms, | ||
| High Light: | IP43 Outdoor Rental LED Display,500*500mm Outdoor Rental LED Display,IP43 Outdoor LED Screen Rental |
||
Product Description
IP43 Outdoor Rental LED Display Screen 500*500mm Advertising Panel
China Led Rental Screen Advertising Panel Led Wall Video Display Outdoor
Product Description
YR II is an LED screen with extremely high compatibility and the ability to switch in different environments. lightweight and slim cabinet architecture and fast installation design make assembly and disassembly faster. equipped with infrared sensor connection system, signal mapping can be completed automatically without manual tuning, making installation even easier and giving you an upgraded user-friendly experience.
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64 pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
CABINET WEIGHT |
6.2kg |
6.2kg |
6.8kg |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
Product Display
Product advantge
-
Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation,
high dimensional accuracy, strong structure and deformation.
-
Design
-Carbon fiber handle
-3 positioning pins on each side
-Ground fast installation lock
-Logo customized
-OLED real-time information display
-
Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
-
Multiple Installation methods
-
Fast Installation
Fast lock design is adopted around the cabinet . It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy. It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.
Application scenarios
