P2.6mm P3.91mm Full Color LED Panel Interior Stage Matrix Displays
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Type: | P2.6mm Indoor Rental Led Display | Application: | Outdoor/indoor |
|---|---|---|---|
| Panel Size: | 500*500mm | Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm |
| Support: | S-PWM Technology, Improved Visual Experience | ||
| High Light: | P3.91mm Full Color LED Panel,SMD P2.6mm Full Color LED Panel,FCC P3.91 LED Panel |
||
Product Description
P2.6mm P3.91mm Full Color LED Panel Interior Stage Matrix Displays
Full Color P3.91 Led Panel Matrix Displays Interior Stage Led Wall P2.6mm Led Screen Rental Indoor LED Display
Product Description
YAHAM led rental screen have Separate power and control unit, which With high refresh rate, high brightness and fast assembling. With waterproof, light, thin, and good heat dissipation. Warranty for 5 years. No dead lamp and long time working hours.
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64 pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
CABINET WEIGHT |
6.2kg |
6.2kg |
6.8kg |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |

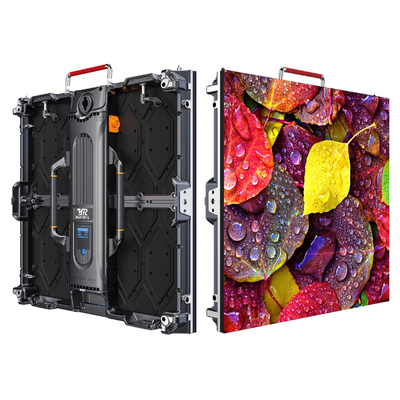

Product Display
Product advantge
-
Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation,
high dimensional accuracy, strong structure and deformation.
-
Design
-Carbon fiber handle
-3 positioning pins on each side
-Ground fast installation lock
-Logo customized
-OLED real-time information display
-
Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
-
Multiple Installation methods
-
Fast Installation
Fast lock design is adopted around the cabinet . It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy. It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.

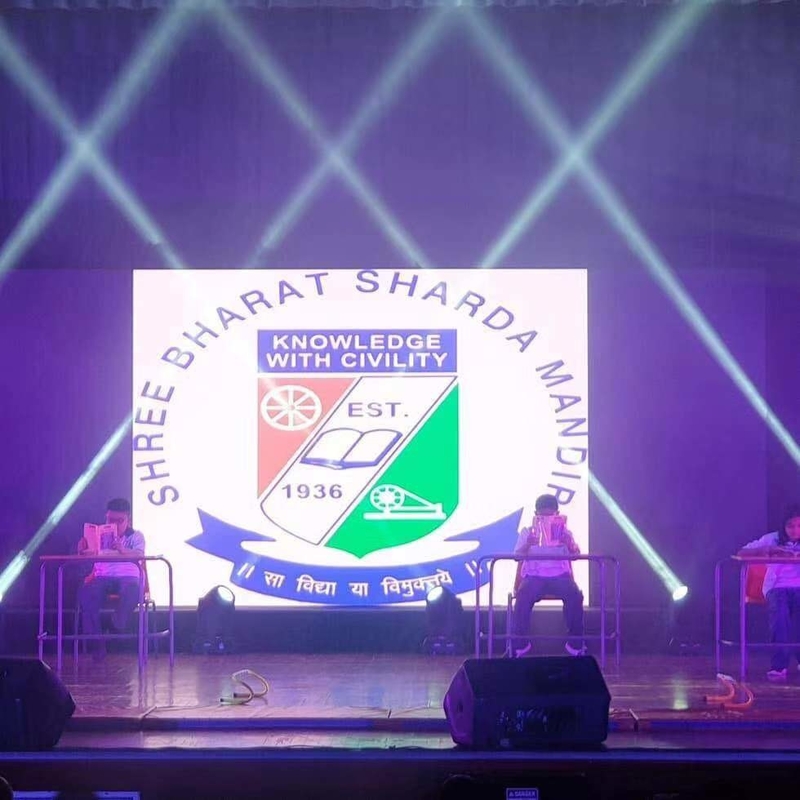

Application scenarios
