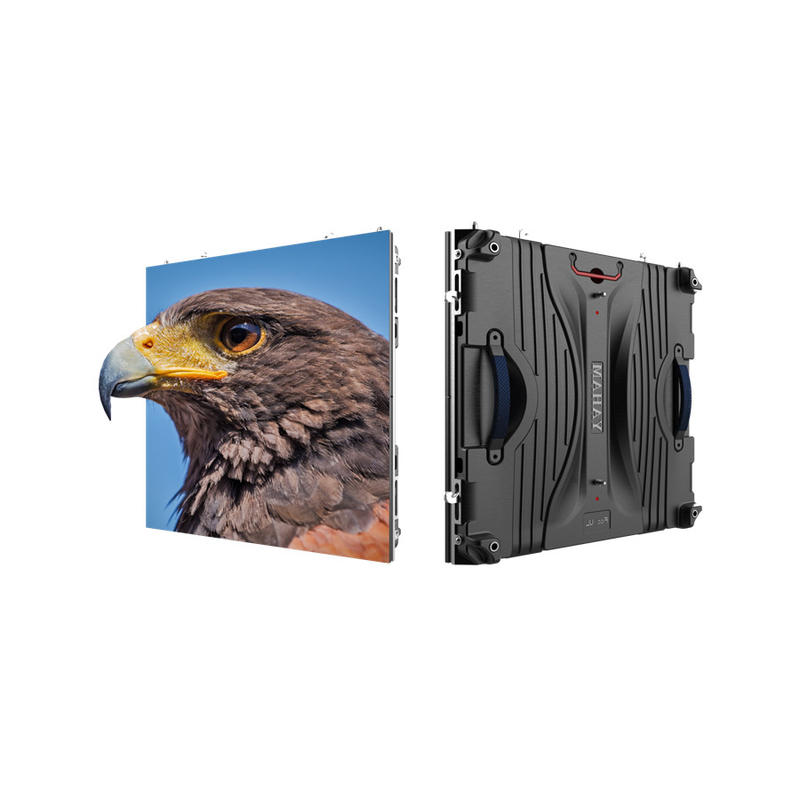

Indoor P3.91 Rental LED Display Screen 500*1000mm Aluminum Cabinet
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Product: | Rental Indoor Led Display Event | Scenes: | Outdoor/indoor |
|---|---|---|---|
| Panel Size: | 500*500mm | Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm |
| Scenarios: | Events, Exhibitions, Weddings, Gyms, Outdoor Billboards | ||
| High Light: | P3.91 Rental LED Display Screen,500*1000mm Rental LED Display Screen,P3.91 Indoor LED Display Screen |
||
Product Description
Indoor P3.91 Rental LED Display Screen 500*1000mm Aluminum Cabinet
Indoor P3.91 500*1000Mm Led Display Screen Diecasting Aluminum Cabinet Advertising Board Video Wall Led Tv
Product Description
YAHAM led rental screen mask using patented technology mask, the mask adopts the rear snap-fastening assembly method, which can facilitate the front maintenance of the LED lights, the front of the mask can not see the fastening screws, the integrity of the screen surface is good, when the screen is lit No bright spots caused by light leakage from screws
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64 pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
CABINET WEIGHT |
6.2kg |
6.2kg |
6.8kg |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
Product Display
Product advantge
-
Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation,
high dimensional accuracy, strong structure and deformation.
-
Design
-Carbon fiber handle
-3 positioning pins on each side
-Ground fast installation lock
-Logo customized
-OLED real-time information display
-
Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
-
Multiple Installation methods
-
Fast Installation
Fast lock design is adopted around the cabinet . It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy. It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.
Application scenarios
