Stage Background SMD LED Display Rental Advertising Billboard Sign
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 19 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Application: | Outdoor/indoor | Panel Size: | 500*500mm |
|---|---|---|---|
| Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm | Viewing Angle: | V140° H120° |
| LED Lifespan (Hrs): | 100000 | Storage Temperature (℃ ): | -30~60 |
| Access: | Front/ Rear Access | Cabinet Weight (Kg): | 6.2 Kg |
| High Light: | SMD LED Display Rental,500*500mm LED Display Rental,SMD Stage Background LED Display |
||
Product Description
Stage Background SMD LED Display Rental Advertising Billboard Sign
LED Display Rental P3.91 P4.81 Led Display Screen Stage Background SMD Video Advertising Billboard Sign
Product Description
YAHAM led rental screen have High refresh rate, high gray scale, ghost-canceling, low power consumption.
It can be designed and maintained on the front and back, easy and fast and easy to maintain.
Own over 30 Product patents, CE and RoHS approval..
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64 pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |

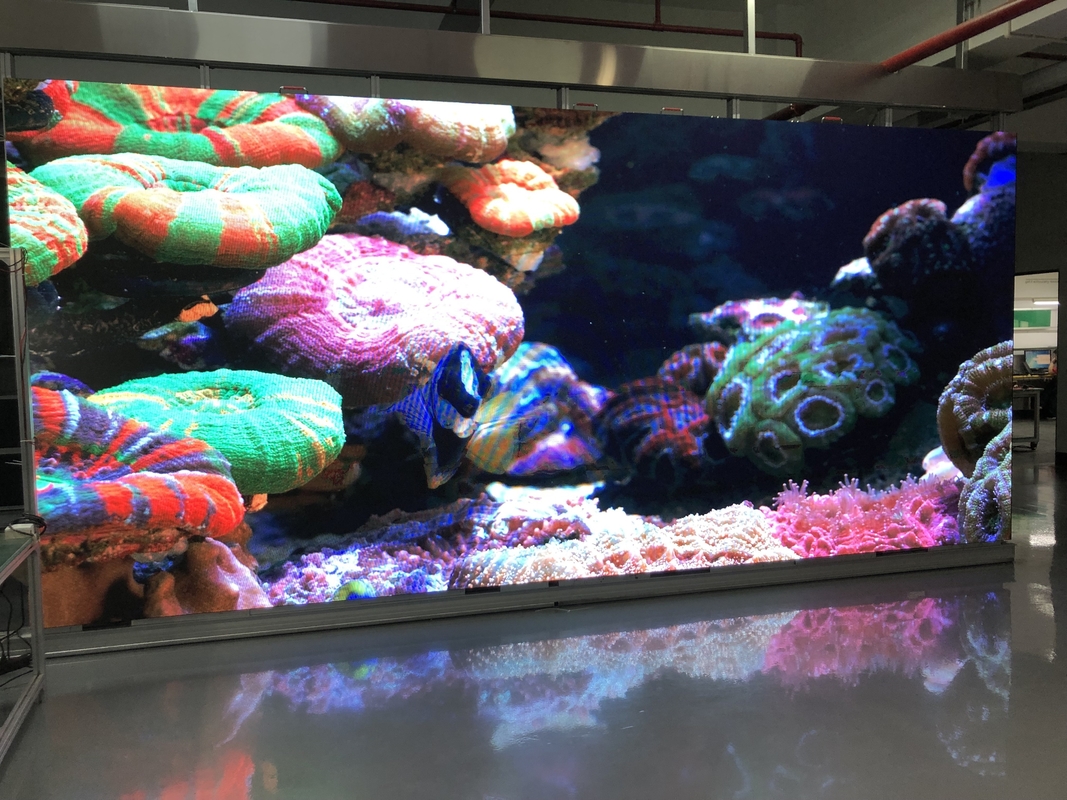

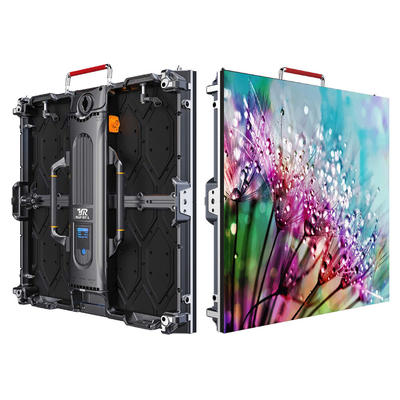

Product Display
Product advantge
1, Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation, high dimensional accuracy, strong structure and deformation.
2, Design
1. Carbon fiber handle
2. 3 positioning pins on each side
3. Ground fast installation lock
4. Logo customized
5. OLED real-time information display
3, Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
4, Multiple Installation methods
5, Fast Installation
Fast lock design is adopted around the cabinet .
It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy.
It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.
Application scenarios
