Indoor IP43 Rental LED Display Screen Full Color Stage Video Wall
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YR-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pieces |
|---|---|
| Price: | USD1250-2000/pieces |
| Packaging Details: | FLIGHT CASE |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000set/per month |
|
Detail Information |
|||
| Product: | Led Rental Screen | Application: | Outdoor/indoor |
|---|---|---|---|
| Panel Size: | 500*500mm | Pixel Pitch: | 2.6mm,3.91mm,4.81 Mm |
| Scenarios: | Events, Exhibitions, Weddings, Gyms, Outdoor Billboards | Our Advantage: | Multiple Installation Methods |
| Our Feature: | S-PWM Technology, Improved Visual Experience | Our Advantage2: | Fast Installation |
| Our Feature2: | Slim Design | Our Advantage3: | Whisper-quiet Operation |
| High Light: | IP43 Rental LED Display Screen,64*64pixels Rental LED Display Screen,IP43 Stage Rental LED Display |
||
Product Description

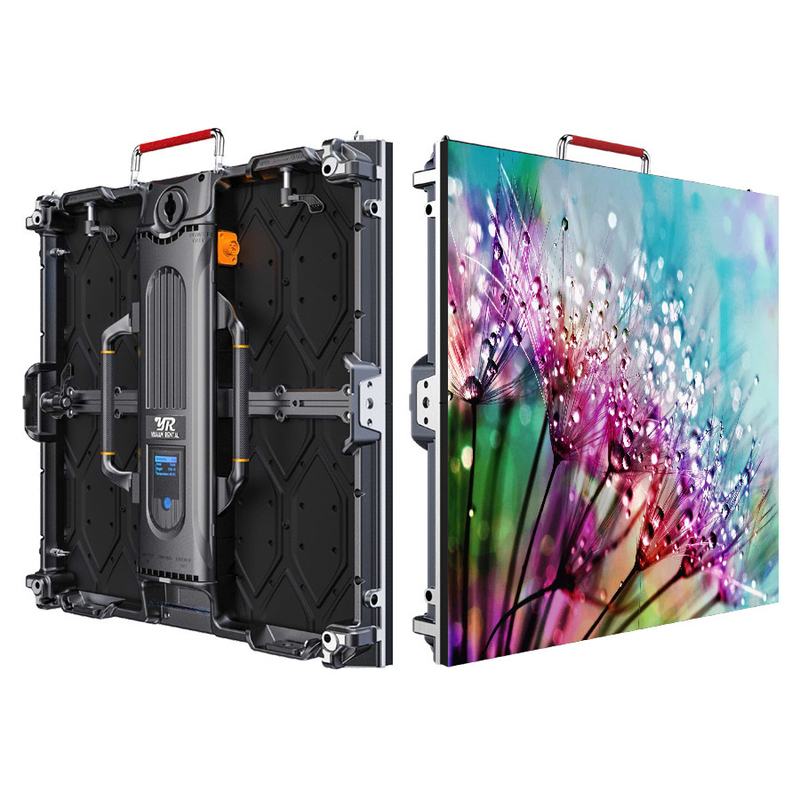

Indoor IP43 Rental LED Display Screen Full Color Stage Video Wall
Indoor P2.9 P3.91 Full Color Led Display Screen For Stage Rental Led Video Wall
Product Description
The YR II LED display uses infrared induction communication system, the signal is mapped automatically, no manual adjustment is required, it is easy to install, and it provides an optimized and humanized experience. It also has extremely high compatibility and conversion capabilities in a variety of environments. The light weight and thin structure of the cabinet and the quick installation design makes assembly and disassembly a breeze.
Specifications
|
ITEM |
T2.6 |
T3.91 |
T4.81 |
|
PIXEL |
2.6 mm |
3.91mm |
4.81mm |
|
LED TYPE |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
147456 pixel/m2 |
65536 pixel/m2 |
43264 pixel/m2 |
|
MODULE DIMENSION |
250*250mm |
250*250mm |
250*250mm |
|
MODULE RESOLUTION |
96*96 pixels |
64*64pixels |
52*52 pixels |
|
CABINET DIMENSION |
500*500*65mm |
500*500*65mm |
500*500*65mm |
|
CABINET WEIGHT |
6.2kg |
6.2kg |
6.8kg |
|
ACCESS |
Front/Rear |
Front/Rear |
Rear |
|
INGRESS PROTECTION |
IP43 |
IP43 |
IP65 |
|
BRIGHTNESS |
1200 NITS |
1200 NITS |
5000 NITS |
|
VIEWING ANGLE |
V140/V120 |
V140/V120 |
V140/V120 |
|
MAX.POWER CONSUMPTION |
600W |
640W |
600W |
|
AVE.POWER CONSUMPTION |
180W |
190W |
180W |
|
DRIVIG METHOD |
1/32 |
1/16 |
1/13 |
|
REFRESH RATE |
3840HZ |
3840HZ |
3840HZ |
|
LED LIFESPAN |
100,000 |
100,000 |
100,000 |
Product Display
Product advantge
-
Materials
Cabinet is made of die-cast aluminum metal, which has good heat dissipation,
high dimensional accuracy, strong structure and deformation.
-
Design
-Carbon fiber handle
-3 positioning pins on each side
-Ground fast installation lock
-Logo customized
-OLED real-time information display
-
Slim Design
Ultra-light with weight only 6.8kg per panel, effectively reduce transportation cost and labour cost.
-
Multiple Installation methods
-
Fast Installation
Fast lock design is adopted around the cabinet . It only takes 10 seconds to connect cabinets.
It ensures installation speed and connection accuracy. It is equipped with positioning pins to
assist alignment to ensure the smoothness of large screen assembly.
Application scenarios
