EN12966 Lane Control LED Traffic Signals VMS Traffic Arrow Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-LCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Model: | YHT-LCS-800,YHT-LCS-1000,YHT-LCS-1200 | Cabinet Size: | 800x800mm,1000x1000mm,1200x1200mm |
|---|---|---|---|
| LEDs: | 5mm Chips DIP High Intensity LED | Display Content: | 4 Patterns : Red Cross, Green Downward Arrow, Amber Left&rightward Arrows |
| Viewing Angle: | Horizontal ±15 Degree/Vertical ±15 Degree | Viewing Distance: | 20m-200m |
| Brightness: | 8,000cd/m² | Dimming Level: | 32 |
| Contrast Ratio: | According To EN12966 R2 | Luminous Uniformity: | ≦5:1 |
| Power Supply: | Optional 110 - 230AV / 12V - 24V DC | Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
| Communication Protocol: | Standard Yaham YH31 Protocol , Modbus, NTCIP Etc, Also Available For Other Documantated Protocol. | Case Material/Rating: | Aluminum Steel With Powder Coating/IP65 |
| Brightness Control: | Photo Sensors To Monitor The Ambient Light Level; Two Pre-set Luminance Levels, One For Normal Daytime And One For Night-time Or Low Ambient Light Level. | Operating Temperature: | -30°c~+60°c |
| Wig-wag: | Upon Request | Other Functions: | Temperature Sensors For Temperature Monitoring |
| MTBF(Hours): | >50,000 | Life Span: | 10 Years |
| Installation: | Portable & Fixed Mounting Available | Maintenance: | Front & Rear Available |
| Power Consumption: | 50W | Advantage: | Auto Dimming |
| Advantage2: | En12966 Compatible | Advantage3: | Self –error Detection |
| High Light: | EN12966 LED Traffic Signals,VMS LED Traffic Signals,EN12966 Road Signal Light |
||
Product Description
EN12966 Lane Control LED Traffic Signals VMS Traffic Arrow Board
Road Traffic Sign Lane Control Traffic Safety Signs En12966 Vms Traffic Arrow Board Cross Sign For Highway Digital Road
Product description
Lane control is important in nowadays’ traffic management, to indicate the road open and close in different timetable , we need a sign which can shows the cross and arrows in different color to attract the driver’s attention, to warn them to change to right lane in advance. Normally used at highways, toll gates, and tunnels in different sizes.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red Cross, green arrows |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

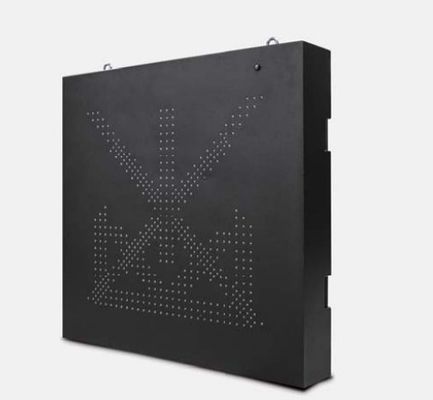

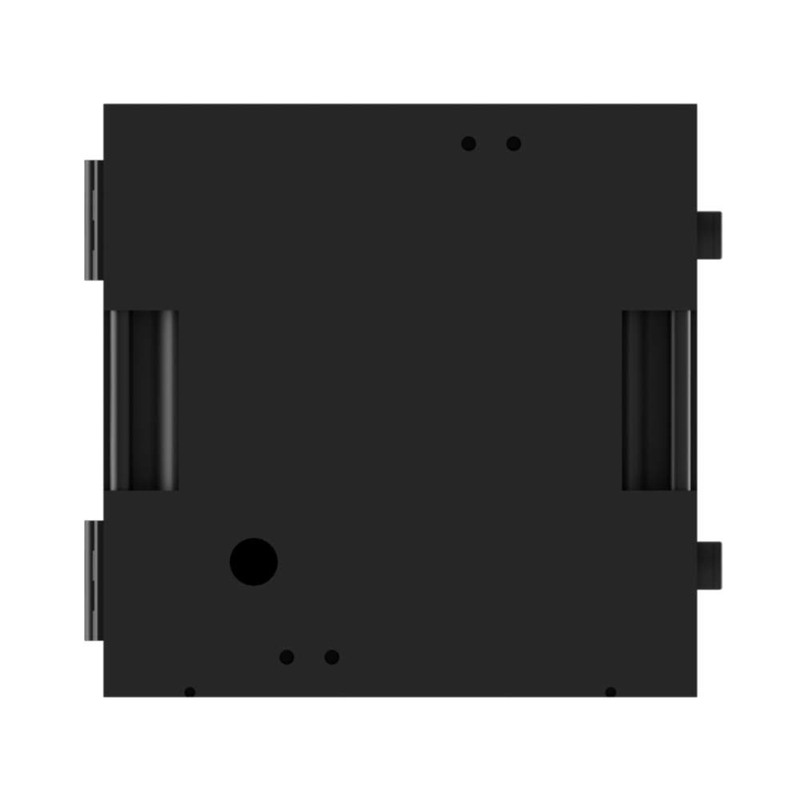

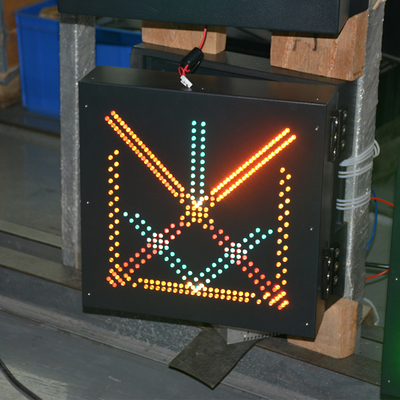

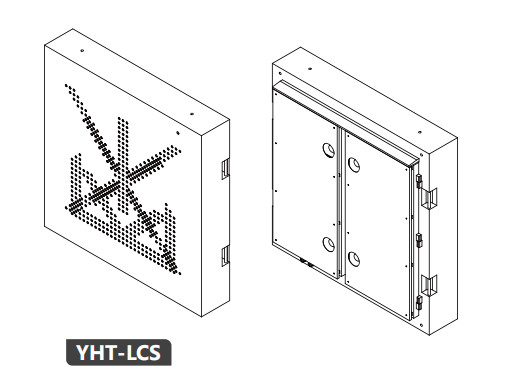

Product display
