Outdoor Colorful VMS LED Display Dynamic Traffic Electronic Message Signs
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YH-P20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 15 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2100 Square Meter/Square Meters |
| Packaging Details: | Per Month |
| Delivery Time: | 24 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3200 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 20mm | Display Function: | Graphics, Video, Text |
|---|---|---|---|
| LED Brand: | Nichia, Cree, Nationstar, Unionled | Module Dimension (H X W): | 320x160mm |
| Protection Level: | Standrad IP65 | Power Supply: | 110-240V AC |
| Color Coordinates: | C2: EN12966 | Driving Method: | Static |
| High Light: | Colorful VMS LED display,320x160mm VMS LED display,VMS Electronic Message Signs |
||
Product Description

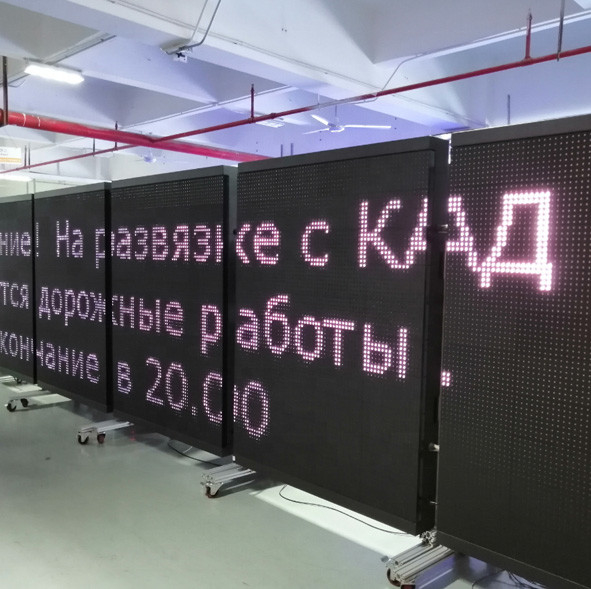

Outdoor Colorful LED Vms Display Dynamic Traffic Electronic Message Signs
Traffic LED VMS Signs are commonly used for the traffic warning information of Road & bridge construction. The high brightness and strong eye-catching Led technology deliver the traffic information to the driver, remind them To focus on driving speed and pay attention to the weather, road situation, And so on. It can reduce the traffic accident by developing the road traffic Management.
LED VMS Signs Specification:
| Item | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | ||
| Screen weight | 65kg/m² | ||
| Cabinet dimension | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | ||
| Brightness adjustment | 32/256 | ||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | ||
| Display capacity | Text, image, graphics animations | ||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | ||
| Max. Power consumption | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | ||
| Storage temperature | -40~ +80°C | ||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
| Maintenance method | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance |
LED VMS Signs Features:
1. LED induction screen is designed with double-layer box board, which has good heat dissipation and high reliability.
2. The use of full plastic modular structure, high protection grade, more durable, more reliable products;
3. Adopt parallel current equalization, energy-saving and efficient power supply, support N+1 power backup, further improve reliability;
4. Non-traditional signal transmission technology is adopted to reduce failure rate and improve communication reliability.
5. Each display module of LED induction screen is equipped with intelligent processing chip, which can operate independently and feedback fault independently, making it safe and reliable to use;
6. LED induction screen adopts Linux operating system controller based on ARM, no crash risk, ensure communication security;
LED VMS Signs Advantages:
1. Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
2. Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices.
3. High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
