P16 EN12966 Traffic LED Message Sign Outdoor High Bright VMS Display
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 17 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2260 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4370 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 16mm | EN12966-1 Standard: | L3,R3,B6,C2 |
|---|---|---|---|
| Contrast Ratio: | R3: EN12966 | Refresh Rate: | >90+ Hz |
| Signal Transfer: | Cat 5 Network Cable, RS232,RS485 Optional | Operation Temperature: | -25~ 60°C |
| High Light: | EN12966 Traffic LED Message Sign,P16 Traffic LED Message Sign,EN12966 VMS LED Display |
||
Product Description

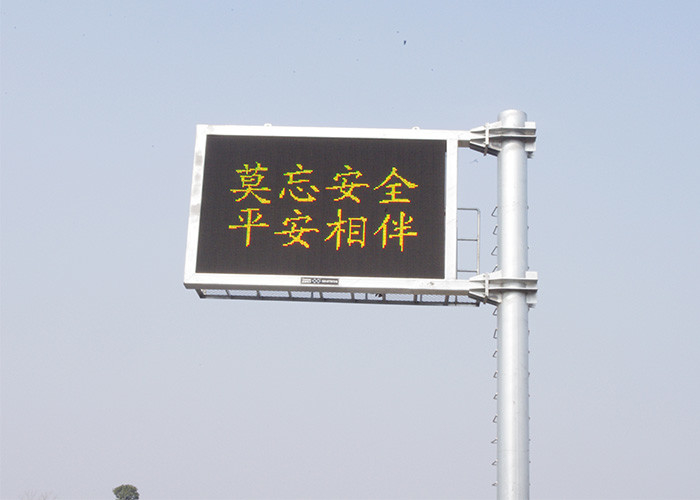

P16 EN12966 Traffic LED Message Sign Outdoor High Bright VMS Display
Outdoor High Bright Traffic LED Message Sign P16 EN12966 Vms LED Display Sign
Designed and manufactured by YAHAM, the cost effective and P10/P16/P20/P25 Road Side Led Digital Billboard Truck Mounted Folding Traffic Message Car LED VMS Display can play any range of text message,graphics and animations in high visibility color. You can design your own symbols, corporate logos and more.The road side traffic message signs are popular for using in traffic management and advertisement.
Application:
It is widely used in highway tunnel, urban road, dense section of road network of main trunk line, urban road, street, airport, wharf, station and other traffic guidance and related application fields.
Better contrast ratio
The surface of each optical len is designed with carved strips that could tremendously reduce light reflection.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
High colour consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the colour more consistent and content more readble.
Automatic/manual brightness control
Our digital photo sensor supports as many as 256 dimming levels with outside luminace range from 1 lx to 65535lx,which enables our display screen to adjust to appropriate luminance level according to outside environment luminance reading will also be reported to traffic control center
Double Layer door heat dissipation without fan
Double layer door housing, heat dissipation by aluminum conducting, which makes the MS internal temperature be low, Low temperature can improve all components performance, more energy saving
Large storage memory
The build-in flash emory can strores as many as 2000 images and characters at a time
High Ingress protection
Our cabinet is fully sealed to enure ingress protection level up to IP65
| Item | YHT-VMS-OT12 | YHT-VMS-OT16 |
| Pixel pitch | 12mm | 16mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 6944 pixels/m² | 3906 pixels/m² |
| Module dimension | 192×192 mm | 256×128 mm |
| Module resolution | 16×16 | 16×8 |
| Cabinet material | 2mm aluminum Alloy | |
| Screen weight | 65kg/m² | |
| Cabinet dimension | 960×960 mm | 1024×1024 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |
| Brightness adjustment | 32/256 | |
| Color coordinates | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |
| Display capacity | Text, image, graphics animations | |
| Lifespan | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |
| Max. Power consumption | 380W/m² | 250W/m² |
| Avg. Power consumption | 120W/m² | 80W/m² |
| Operation temperature | -25~ +60°C | |
| Storage temperature | -40~ +80°C | |
| Store humidity | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) |
| Maintenance method | Rear service | Rear service |
| EN12966 | compliance | compliance |
