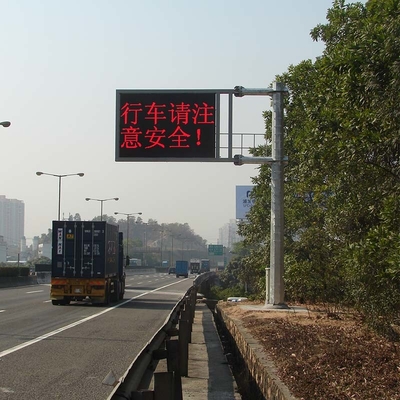

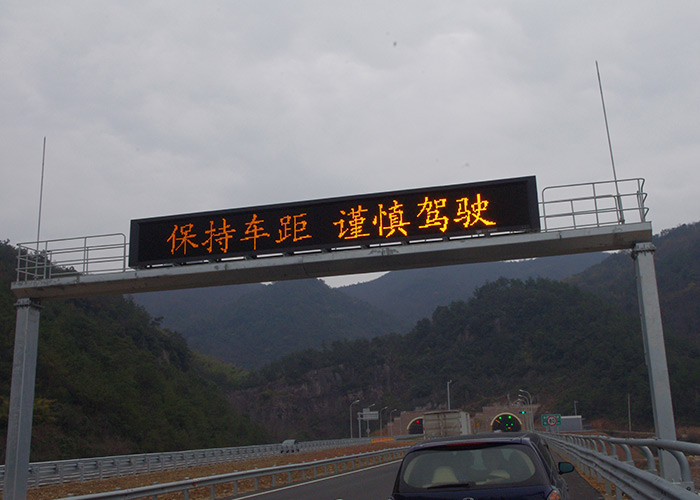

P12 VMS Message Board Highway City Tunnel Warning Traffic Guidance
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2300 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 16 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5580 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 12mm | LED Brand: | Nichia, Cree, Nationstar, Unionled |
|---|---|---|---|
| Color Coordinates: | C2: EN12966 | Cabinet Dimension: | 960×960mm |
| Driving Method: | 2S | Display Control: | Asynchronous Control System Available |
| High Light: | P12 VMS Message Board,960×960mm VMS Message Board,P12 Wireless LED Message Board |
||
Product Description
P12 VMS Message Board Highway City Tunnel Warning Traffic Guidance
City And Highway Tunnel Warning Message Traffic Guidance Display LED Vms Signs P12
Designed and manufactured by YAHAM, the cost effective and P10/P16/P20/P25 Road Side Led Digital Billboard Truck Mounted Folding Traffic Message Car LED VMS Display can play any range of text message,graphics and animations in high visibility color. You can design your own symbols, corporate logos and more.The road side traffic message signs are popular for using in traffic management and advertisement.
Better contrast ratio
The surface of each optical len is designed with carved strips that could tremendously reduce light reflection.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
High colour consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the colour more consistent and content more readble.
Automatic/manual brightness control
Our digital photo sensor supports as many as 256 dimming levels with outside luminace range from 1 lx to 65535lx,which enables our display screen to adjust to appropriate luminance level according to outside environment luminance reading will also be reported to traffic control center
Double Layer door heat dissipation without fan
Double layer door housing, heat dissipation by aluminum conducting, which makes the MS internal temperature be low, Low temperature can improve all components performance, more energy saving
WAY YAHAM
Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 |
| Pixel pitch | 10mm | 12mm | 16mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm |
| Module resolution | 32×16 | 16×16 | 16×8 |
| Cabinet material | 2mm aluminum Alloy | ||
| Screen weight | 65kg/m² | ||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | ||
| Brightness adjustment | 32/256 | ||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | ||
| Display capacity | Text, image, graphics animations | ||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | ||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² |
| Operation temperature | -25~ +60°C | ||
| Storage temperature | -40~ +80°C | ||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance |
