Digital Radar P16mm VMS Speed Limit Highway Road Traffic Sign
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-SLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| LEDs: | 5mm Chips DIP High Intensity LED | Viewing Angle: | Horizontal ±15 Degree/Vertical ±15 Degree |
|---|---|---|---|
| Brightness: | 8,000cd/m² | Installation: | Portable & Fixed Mounting Available |
| Advantage2: | En12966 Compatible | Advantage3: | Self –error Detection |
| High Light: | P16mm VMS Speed Limit,Digital Radar VMS Speed Limit,P16mm Speed Limit Road Sign |
||
Product Description
Digital Radar P16mm VMS Speed Limit Highway Road Traffic Sign
Outdoor Speed Limit Sign Road And Highway Digital Traffic Message Radar Traffic Safety Board P16mm
Product description
Yaham Variable Speed Limit Sign, or VSLS for short. It is mainly used to display the speed limit value, and the speed limit value can be changed. VSLS can assist traffic managers to carry out scientific and efficient traffic management, and managers can dynamically adjust the speed limit value according to the actual situation on the road. Jimu VSLS adopts the design method of full dot matrix, so it is actually a multi-purpose traffic sign screen.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red circle, full color variable digit area |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

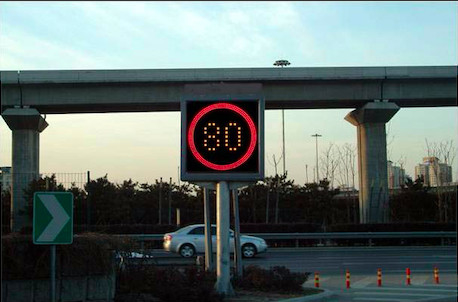

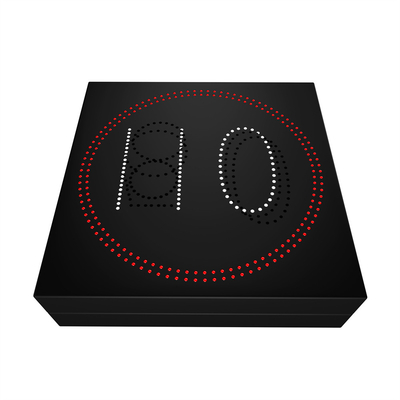

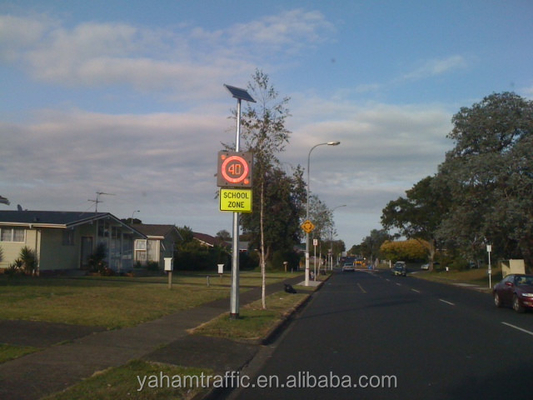

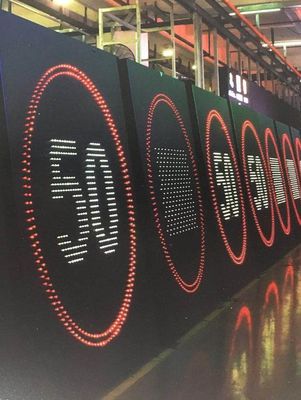

Product display
