Portable Speed Limit Electronic Signs RS485 RS232 GPRS Ethernet 4G 3G
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-SLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Viewing Angle: | Horizontal ±15 Degree/Vertical ±15 Degree | Dimming Level: | 32 |
|---|---|---|---|
| Communication: | RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G | Communication Protocol: | Standard Yaham YH31 Protocol , Modbus, NTCIP Etc, Also Available For Other Documantated Protocol. |
| Other Functions: | Temperature Sensors For Temperature Monitoring | Advantage: | Auto Dimming |
| High Light: | RS485 Speed Limit Electronic Signs,RS232 Speed Limit Electronic Signs,RS232 Portable Variable Message Sign |
||
Product Description
Portable Speed Limit Electronic Signs RS485 RS232 GPRS Ethernet 4G 3G
Outdoor Road Portable Variable Message Sign Trailer Board Digital LED Display Mobile LED Display
Product description
Yaham Optoelectronics' patented module, Yilu Optoelectronics developed a spotlight group based on the principle of a flashlight, which is specially designed for the use environment of traffic guidance screens. The light viewing angle of the ordinary LED display light group is wider, while the viewing angle of the traffic guidance screen is narrow. Using a special LED light group can achieve higher brightness and farther distance with less power. Visibility. After calculation, it can save more than half of the energy in the later use, and because of the low current, the life is much longer.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red circle, full color variable digit area |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

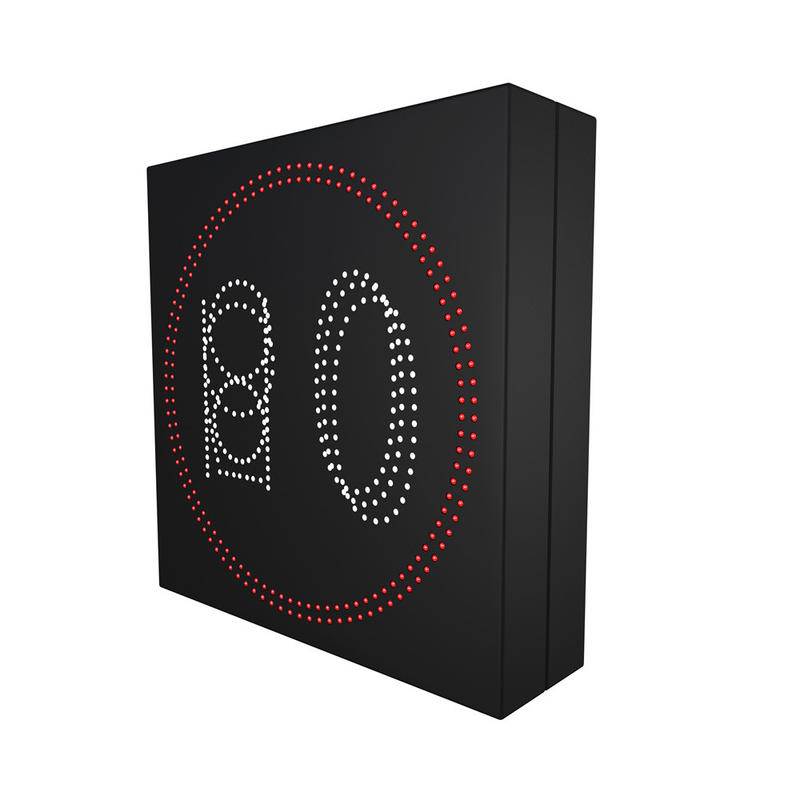

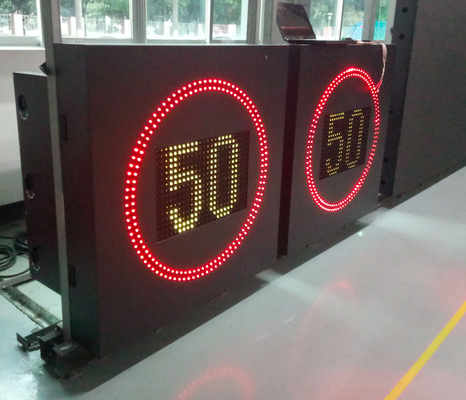

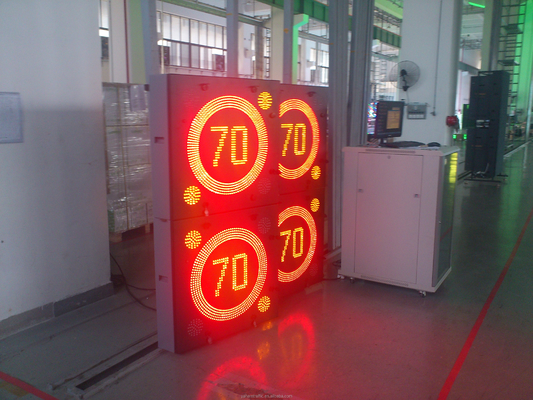

Product display
