Digital Radar IP65 VMS Speed Limit Outdoor Traffic Safety Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Model Number: | YHT-SLS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD962-1283/per piece |
| Packaging Details: | non-wooden case with EPE protection |
| Delivery Time: | 35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 |
|
Detail Information |
|||
| Viewing Distance: | 20m-200m | Brightness: | 8000cd |
|---|---|---|---|
| Case Material/Rating: | Aluminum Steel With Powder Coating/IP65 | Wig-wag: | Upon Request |
| Advantage2: | En12966 Compatible | Advantage3: | Self –error Detection |
| High Light: | IP65 VMS Speed Limit,IP65 VMS Board,8000cd Traffic Safety Board |
||
Product Description
Digital Radar IP65 VMS Speed Limit Outdoor Traffic Safety Board
Outdoor Digital Traffic Screen Speed Limit Sign Radar Traffic Board Speed Measure Message
Product description
Yaham Optoelectronics patented cabinet, double door panel design, set up two layers of cabinet firstly to increase the protection level, better waterproof and dustproof and prevent small animals from being harassed, and the second core is the patented aluminum inner cabinet, this is It acts as a heat sink. Both increased protection level and lower internal temperature. This design greatly increases the lifespan of the LED variable speed limit signs.
Specification
|
Item |
YHT-LCS |
|
Color configuration |
Red circle, full color variable digit area |
|
Cabinet size |
optional 800 x 800mm / 1000 x 1000mm / 1200 x 1200mm |
|
Cabinet material |
Aluminum alloy |
|
Weight |
45 kg |
|
Viewing angle |
30°(H)/30°(V) |
|
Dimming leve |
32 |
|
Communication |
RS485/ RS232/ GPRS/ Ethernet/ 4G/ 3G |
|
Electric protection |
Overload protection and Short circuit Protection |
|
Installation |
Portable-mounted / Fixed-mounted |
|
Maintenance |
Back access |
|
Operating temperature |
25°C~+65°C |
|
Operating relative humidity |
95%RH(Max.) |
|
Ingress protection |
IP65 |
|
Power consumption (Max) |
50 W |
|
Power supply |
optional 110 - 230AV / 12V - 24V DC |
Product Features:
Auto dimming
Probes are applied to the front and back of the display, it can ensure that the display brightness will change accordingly whether sun exposure to the back of the screen or positive.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham SLS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improves energy efficiency and maximumly lower light pollution.
En12966 compatible
Yaham SLS is a EN12966 based traffic-related Information display and networkable with other displays, terminals and platforms.
Easy installation
To install the speed limit sign, one should just simply spin the lock, no screwing is required.
Remote control
Different signs can be switched remotely and wirelessly. In addition, SLS can also be remotely switched on and off.
Strong cabinet architecture
2mm Aluminum housing, fully welded with internal strength, ensuring perfect screen performance in the harshest environments and severe weather conditions.

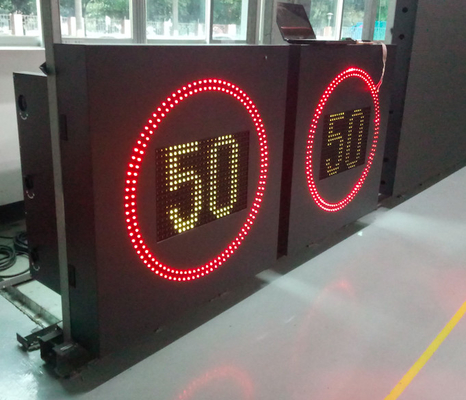

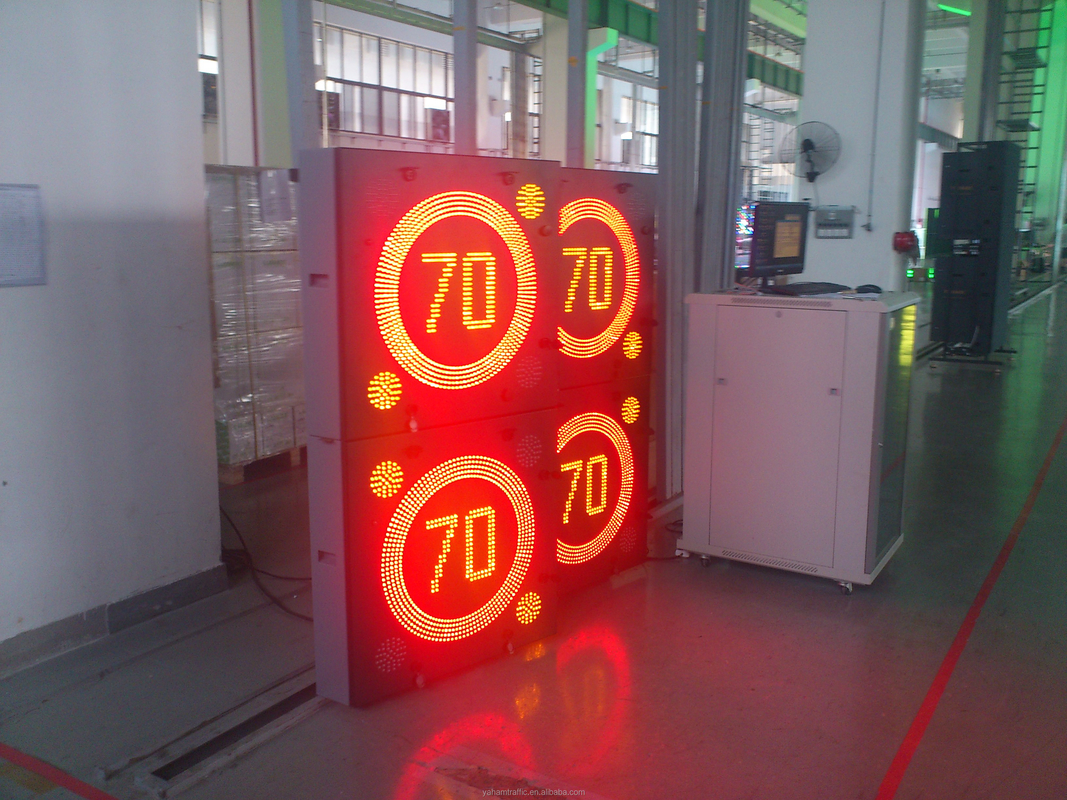

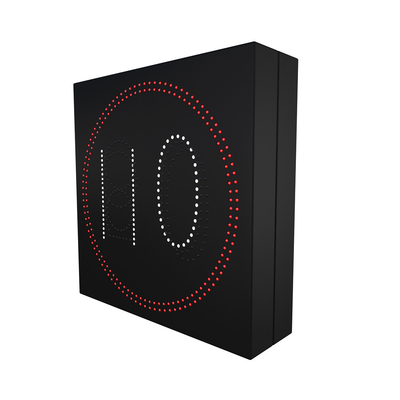

Product display
