P10mm LED VMS Signs Outdoor Full Color Electronic Display module
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 17 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 23 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4280 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 10mm | Display Function: | Graphics, Video, Text |
|---|---|---|---|
| Operating Humidity: | 10%~ 90% | Maintenance Method: | Rear Service |
| EN12966: | Compliance | Color Coordinates: | C2: EN12966 |
| High Light: | P10mm LED VMS Signs,Full Color LED VMS Signs,VMS P10 Outdoor Led Sign |
||
Product Description
P10mm LED VMS Signs Outdoor Full Color Electronic Display Module

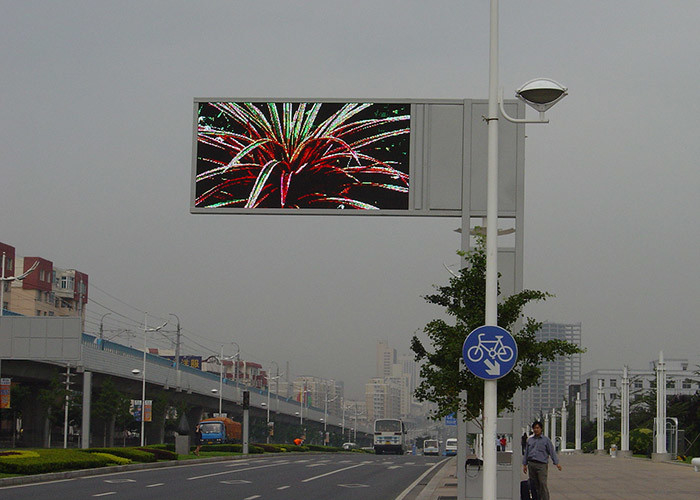

P10 LED VMS Signs Traffic Message Electronic Screen Outdoor Full Color Display
the led traffic lens display screen has the characteristics of more uniform light emission, better light mixing effect and more energy saving.

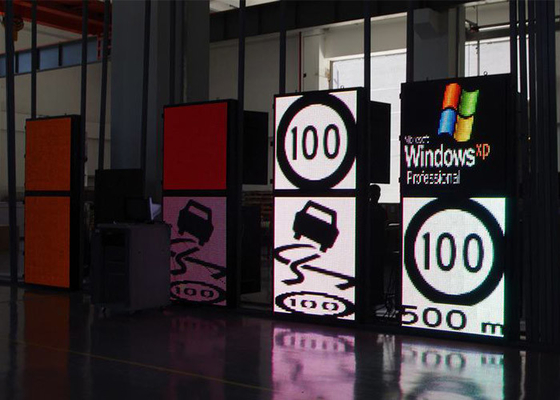

Lens beads using patch technology, quality is more stable, light shape can be customized and other characteristics, mainly used in led variable message signs, Led variable speed limit sign, Etc channel indicator, Led construction guide card and other occasions.
Product Features
1, Display module having the versatility and interchangeability can be composed of different display colors and different sizes according to needs.
2, Module package uses advanced soft silicone, the elastic, strong anti-aging ability.
3, Power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the performance is unstable due to mechanical failure when the cooling fan caused.
4, Use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
The control system only with the IPC, and higher reliability.
5, Double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
6, Pixel module junction box and use the "O"ring, with good moisture anti-leakage performance.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 |
| Pixel pitch | 10mm | 12mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm |
| Module resolution | 32×16 | 16×16 |
| Cabinet material | 2mm aluminum Alloy | |
| Screen weight | 65kg/m² | |
| Cabinet dimension | 960×960 mm | 960×960 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |
| Brightness adjustment | 32/256 | |
| Color coordinates | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |
| Display capacity | Text, image, graphics animations | |
| Lifespan | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |
| Max. Power consumption | 400W/m² | 380W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² |
| Operation temperature | -25~ +60°C | |
| Storage temperature | -40~ +80°C | |
| Store humidity | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service |
| EN12966 | compliance | compliance |
