IP65 Highway Electronic Sign P31.25 LED Module Traffic Display Screen
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 12 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2100 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 24 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4280 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 31.25mm | EN12966-1 Standard: | L3,R3,B6,C2 |
|---|---|---|---|
| Protection Level: | Standrad IP65 | Brightness Adjustment: | 32/256 |
| Refresh Rate: | >90+ Hz | Power Supply: | 12-24V DC/110-230V AC |
| High Light: | IP65 Highway Electronic Sign,P31.25 Highway Electronic Sign,P31.25 Highway LED Signs |
||
Product Description
IP65 Highway Electronic Sign P31.25 LED Module Traffic Display Screen
Highway Traffic Display Screen 65kg/M² P31.25 LED Module 1024 Pixels/M²
Integrate that latest manufacture technology and combining the patch manufacturing technology with the lens technology, the invention not only achieve the guarantee of the patch technology on the product stability, but also achieves the color mixing effect of the lens lamp bead.

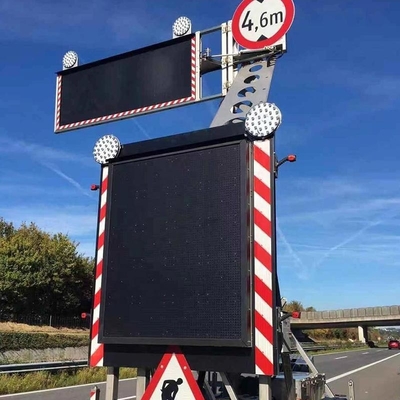

Designed and manufactured by YAHAM, the cost effective and P10/P16/P20/P25 Road Side Led Digital Billboard Truck Mounted Folding Traffic Message Car LED VMS Display can play any range of text message,graphics and animations in high visibility color. You can design your own symbols, corporate logos and more.The road side traffic message signs are popular for using in traffic management and advertisement.
WAY YAHAM
Short Delivery Term
YAHAM manufactures all orders according to customer expectations. YAHAM realizes the importance of short delivery terms for customers because of that YAHAM aims to manufacture all his orders within promised dates.
High Quality Production
YAHAM use all its raw metarials from ISO certificated products. YAHAM quality staff check all raw metarials before&after all processes to meet quality requirements.
Competitive Price
YAHAM believes to give competitive prices, it should push its own suppliers for competitive prices.
| Item | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 16×8 | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy | |||
| Cabinet dimension | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||
| Brightness adjustment | 32/256 | |||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |||
| Max. Power consumption | 250W/m² | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||
| Storage temperature | -40~ +80°C | |||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance | compliance |
