Programmable P16 vMS lED display Board Traffic Control Information
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 17 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 23 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4180 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 16mm | Display Function: | Graphics, Video, Text |
|---|---|---|---|
| LED Brand: | Nichia, Cree, Nationstar, Unionled | LED Type: | 3 In1 SMD+lens |
| Pixel Density: | 3906 Pixels/m² | Cabinet Material: | 2mm Aluminum Alloy |
| High Light: | P16 VMS LED Display,EN12966 VMS LED Display,P16 VMS Display Board |
||
Product Description

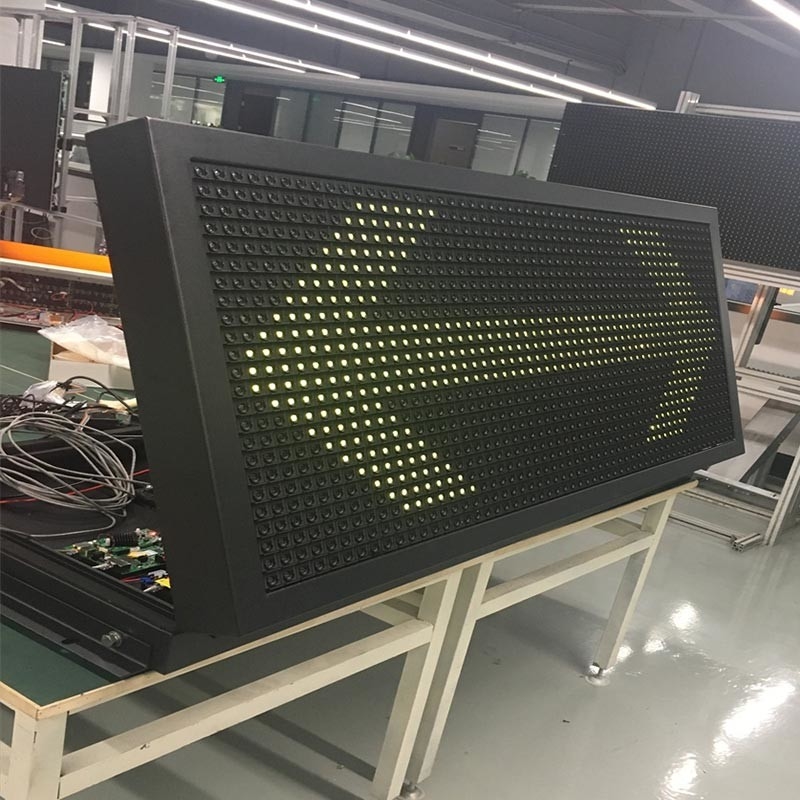

Programmable P16 VMS LED Display Board Traffic Control Information
Traffic control sign en12966 ntcip programmable p16 module led vms display
Feature
Smart monitor
Yaham VMS can activate self-diagnosis and report health status, monitor can identify equipment health status, current message ID, current operating mode temperature, humidity, etc
Energy-efficient
Industry-leading dual-voltage technology, it can tremendously improve energy efficiency and maximumly lower light pollution.Technology
--Sleep mode:
YHT-VMS product,in the blank area, only a 10uA current will flow in each channel under sleep mode. A sample calculation for energy saving is showingas follows. YHT-VMS product will save around 800 times for every single IC driver than general VMS!
--Dual Voltage
Due to lighting chip difference inside, Red/Amber LED has lower threshold voltage to light up than Green/Blue LED. So, we applied dual voltage channel to drive two types of LEDs. Surplus energy is saved by this technology. Using separate voltage driving board to achieve energy-saving purpose:specific voltages are applied to different lamps.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 |
| Pixel pitch | 10mm | 12mm | 16mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm |
| Module resolution | 32×16 | 16×16 | 16×8 |
| Cabinet material | 2mm aluminum Alloy | ||
| Screen weight | 65kg/m² | ||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | ||
| Brightness adjustment | 32/256 | ||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | ||
| Display capacity | Text, image, graphics animations | ||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | ||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² |
| Operation temperature | -25~ +60°C | ||
| Storage temperature | -40~ +80°C | ||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Maintenance method | Rear service | Rear service | Rear service |
| EN12966 | compliance | compliance | compliance |
