IP65 Electronic Traffic Sign Boards Customized 3 In1 SMD Lens
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-VMS-OT25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 19 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 23 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3680 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixels: | 25mm | Lifespan: | >100000 Hrs |
|---|---|---|---|
| Contrast Ratio: | R3: EN12966 | Power Supply: | 12-24V DC/110-230V AC |
| Storage Temperature: | -40~ 80°C | Brightness Adjustment: | 32/256 |
| High Light: | IP65 Electronic Traffic Sign Boards,EN12966 Electronic Traffic Sign Boards,IP65 Traffic Signboard |
||
Product Description

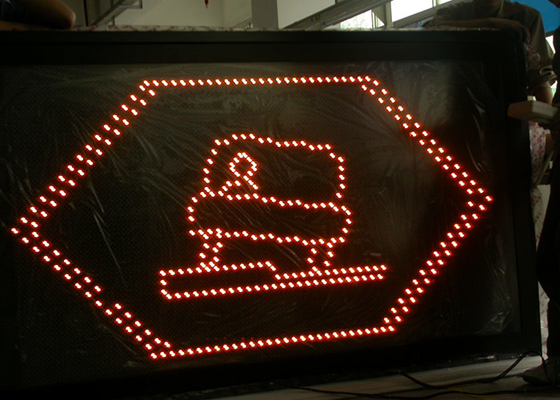

IP65 Electronic Traffic Sign Boards Customized 3 In1 SMD Lens
Customized traffic signboard outdoor led vms signs 3 in1 SMD+lens IP65 EN12966
YAHAM LED variable message signs and traffic guidanceequipment traffic information dissemination, which is based on LED lighting device shows the effect of the basic traffic information display unit of a display device with graphics and text.
According to the instruction information traffic, weather and dispatching department, the operator can be released to the variable information boards of various notices and information to effectively induct traffic flow, improve transport capacity of the road network, the safety of the driver driving fast provide excellent service.
Better contrast ratio
The surface of each optical len is designed with carved strips that could tremendously reduce light reflection.
High stability
Less manual production and component processes, less potential failure rate, bringing the new module up to a new level of stability.
High colour consistency
With a much improved flatness, diode spectrum and brightness are able to remain the same, making the colour more consistent and content more readble.
|
Pixel pitch |
10mm |
12mm |
16mm |
20mm |
25mm |
31.25mm |
|
LED type |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
3 in1 SMD+lens |
|
Pixel density |
10000 pixels/m² |
6944 pixels/m² |
3906 pixels/m² |
2500 pixels/m² |
1600 pixels/m² |
1024 pixels/m² |
|
Module dimension |
320×160 mm |
192×192 mm |
256×128 mm |
320×160 mm |
200×200 mm |
250×250 mm |
|
Module resolution |
32×16 |
16×16 |
16×8 |
16×8 |
8×8 |
8×8 |
|
Cabinet material |
2mm aluminum Alloy |
|||||
|
Screen weight |
65kg/m² |
|||||
|
Cabinet dimension |
960×960 mm |
960×960 mm |
1024×1024 mm |
960×960 mm |
1000×1000 mm |
1000×1000 mm |
|
Brightness |
L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
|||||
|
Brightness adjustment |
32/256 |
|||||
|
Refresh rate |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
>90+ Hz |
|
Display control |
Asynchronous control system available |
|||||
|
Display capacity |
Text, image, graphics animations |
|||||
|
Lifespan |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
>100000 hrs |
|
Power supply |
12-24V DC/110-230V AC |
|||||
|
Avg. Power consumption |
130W/m² |
120W/m² |
80W/m² |
70W/m² |
70W/m² |
70W/m² |
|
Operation temperature |
-25~ +60°C |
|||||
|
Storage temperature |
-40~ +80°C |
|||||
|
Store humidity |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
15%~ 95% |
|
Maintenance method |
Rear service |
Rear service |
Rear service |
Rear service |
Rear service |
Rear service |
|
EN12966 |
compliance |
compliance |
compliance |
compliance |
compliance |
compliance |
