SMD LED Airport Flight Schedule Screen Route Guidance Terminal
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | FCC 2AZPZ-T25 |
| Model Number: | YHT-PID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2450 |
| Packaging Details: | Poly wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000set/per month |
|
Detail Information |
|||
| Media Available: | Photo，Word | Use: | Airport, Subway, Metro, Bus Station, Train Station |
|---|---|---|---|
| Ingress Protection: | IP65 | Dimming Level: | 32 |
| LED Type: | SMD 3 In 1 | ||
| High Light: | SMD Airport Flight Schedule Screen,IP65 Flights Display Board,SMD LED Airport Display Board |
||
Product Description
SMD LED Airport Flight Schedule Screen Route Guidance Terminal
Airport Terminal Route Guidance Led Display Passenger Information Display System Airport Central Command Led Display
Product Description
Passenger Information Display
In most airports, passengers deplane far from where they pick up their baggage. YAHAM terminal route guidance led display screens in baggage claim areas help travelers easily locate the right conveyor for their flight. Between long connections and flight delays, some passengers may end up waiting for a considerably long time. YAHAM LED screens can broadcast news or promote airport gift shops, newsstands, restaurants, or other forms of entertainment throughout the terminal. This can help passengers pass the time while they wait for their flights to take off.
Specifications
| Item | P6 | P8 | P10 | P12 | P16 |
| Pixel pitch | 6mm | 8mm | 10mm | 12mm | 16mm |
| LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Pixel density | 27777 pixels/m² | 15625 pixels/m² | 10000pixels/m² | 6944pixels/m² | 3906 pixels/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module dimension (Wx H) | 192x192 mm | 256×128 mm | 320×160 mm | 192x192 mm | 256×128 mm |
| Module resolution (Wx H) | 16×8 | 16x16 | 32x16 | 32×32 | 32×32 |
| Screen weight | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² |
| Viewing angle | H140°/V140° | H140°/V140° | H140°/V140° | H140°/V140° | H140°/V140° |
| Best viewing distance | 6m~50m | 8m~80m | 10m~100m | 12m~100m | 16m~100m |
| Brightness | 5,000~8,000 nits | 6,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits |
| Gray scale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
| Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color |
| Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
| Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Contrast ratio | ≥4000:1 | ≥2000:1 | ≥2000:1 | ≥2000:1 | ≥2000:1 |
| Power supply | 100~240V | 100~240V | 100~240V | 100~240V | 100~240V |
| Storage temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
| Operation temperature | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C |
| Operation humidity | 5%~95%RH | 5%~95%RH | 5%~95%RH | 5%~95%RH | 5%~95%RH |
| Input signa | DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV | ||||
| Driving method | 1/8 dynamic | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic | static |
| Max. Power consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
| Avg. Power consumption | 240W/m² | 180W/m² | 180W/m² | 180W/m² | 180W/m² |

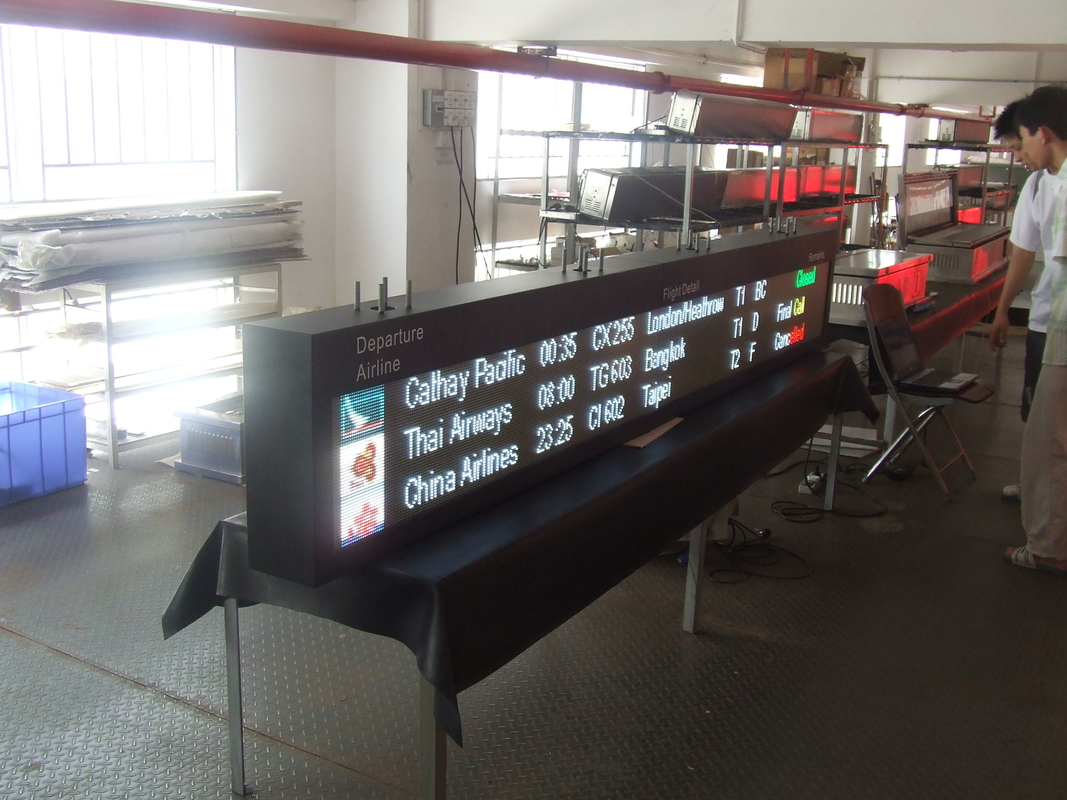

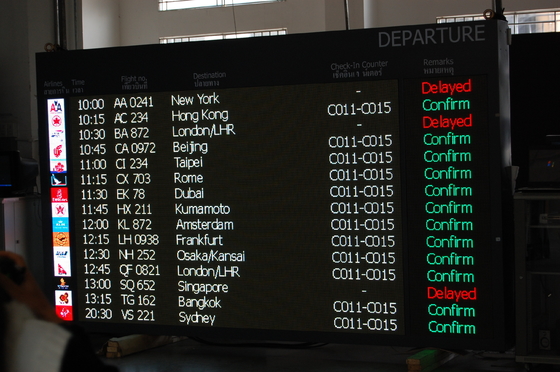

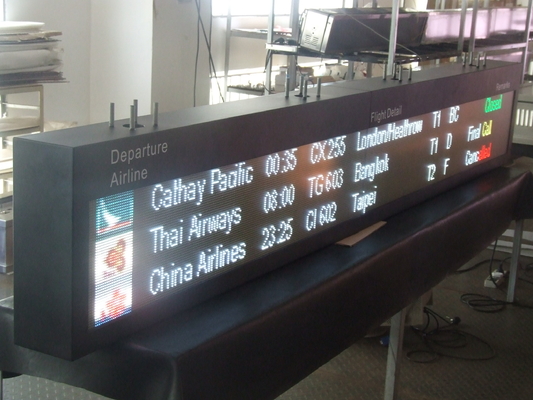

Product Display
Product advantge
-
Highly customized size and color
Yaham PID is a highly customized product with color availability including monochrome, full-color
and dual-color, it is also available in a variety of sizes that could meet you requirements.
-
Smart monitor
Yaham PID can activate self-diagnosis and report health status, monitor can identify equipment
health status, current message ID, current operating mode, temperature, etc.
- Indoor / outdoor optional
-
Electromagnetic interference free
-
Remote control
Messages and photos are capable of being edited and displayed remotely. To deliver
more intense and readable information, brightness and also be remotely controlled.

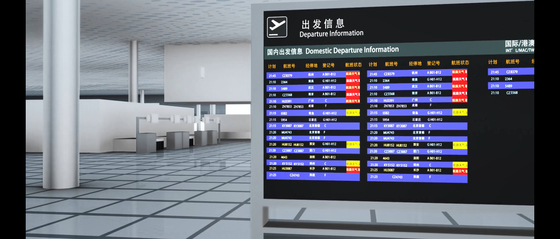

Application scenarios
