12V 24V DC Motorway VMS Signs Outdoor Full Color LED Traffic Display
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT20-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Screen Weight: | 65kg/m² | Customized Size: | 3-5 Years |
|---|---|---|---|
| Lifespan: | >100000 Hrs | Refresh Rate: | >90+ Hz |
| Storage Temperature: | -40~ +80°C | Operation Temperature: | -25~ +60°C |
| Brightness Adjustment: | 32/256 | Cabinet Dimension: | 960×960 Mm |
| High Light: | 12V Motorway VMS Signs,24V Motorway VMS Signs,DC24V LED Traffic Display |
||
Product Description
12V 24V DC Motorway VMS Signs Outdoor Full Color LED Traffic Display
Outdoor full color traffic LED display variable message sign 65kg/m² NTCIP motoway board

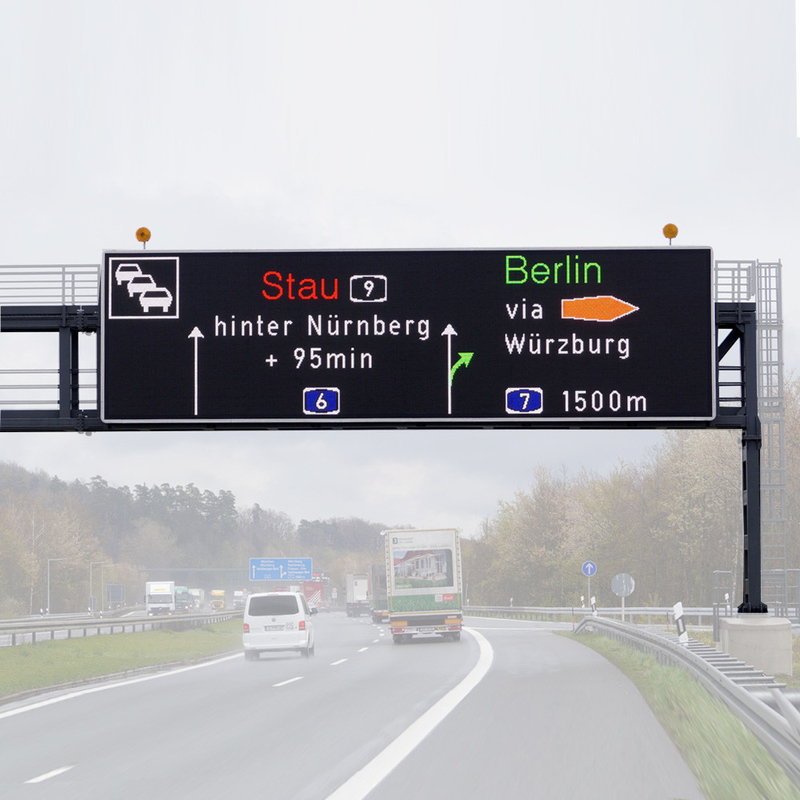

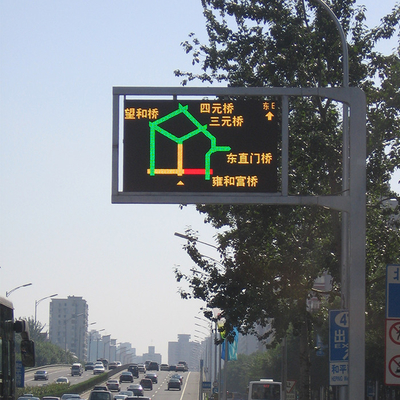

Playing an increasingly important role in the field of intelligent transportation, widely used in road transportation, public service information, and used to display text, pictures and numbers. VMS information can guide drivers to make flexible adjustments in advance to avoid road congestion, traffic accidents, road maintenance and other traffic conditions in real time, improve traffic efficiency to save time and ensure safety. Yuanheng Optoelectronics' variable information signs can meet various pixel pitch requirements and size installation requirements, including gantry VMS, cantilever VMS, column VMS, etc.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham VMS combines Yaham-engineered optical lens technology and industry-leading dual-voltage technology, it can tremendously improve energy efficiency and maximumly lower light pollution.
NTCIP and MODBUS based
Yaham traffic information displays are programmed based on the world two most prevailing 1.programmed NTCIP (National Transportation Communications for ITS protocol) and Modbus, more than just that, we also provide customized protocol if necessary.
product introduction:
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane.
Strictly follow GBT 23828-2009 standard for material selection, design, production and testing
The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the national standard.
| Item | YHT-VMS-OT10 | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 10000 pixels/m² | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² |
| Module dimension | 320×160 mm | 192×192 mm | 256×128 mm | 320×160 mm |
| Module resolution | 32×16 | 16×16 | 16×8 | 16×8 |
| Cabinet material | 2mm aluminum Alloy | |||
| Screen weight | 65kg/m² | |||
| Cabinet dimension | 960×960 mm | 960×960 mm | 1024×1024 mm | 960×960 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) | |||
| Brightness adjustment | 32/256 | |||
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available | |||
| Display capacity | Text, image, graphics animations | |||
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC | |||
| Max. Power consumption | 400W/m² | 380W/m² | 250W/m² | 220W/m² |
| Avg. Power consumption | 130W/m² | 120W/m² | 80W/m² | 70W/m² |
| Operation temperature | -25~ +60°C | |||
| Storage temperature | -40~ +80°C | |||
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(41.00%),North America(30.00%),Southeast Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Taxi Roof LED Display,VMS Trailer,Variable Message Sign,Rental LED Display,Speed Limit Sign
