LED OT16 IP65 12400NITS Motorway VMS Signs Road Variable Message
Product Details:
| Place of Origin: | shenzhen，china |
| Brand Name: | YAHAM |
| Certification: | EN12966、NTCIP |
| Model Number: | YHT-OT16-1R1G1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 11 Square Meter/Square Meters |
|---|---|
| Price: | $1200-2000 Square Meter/Square Meters |
| Packaging Details: | POLY WOODEN CASE |
| Delivery Time: | 36 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500 Square Meter/Square Meters Per Month |
|
Detail Information |
|||
| Pixel Pitch: | 16mm | Screen Weight: | 65kg/m² |
|---|---|---|---|
| Lifespan: | >100000 Hrs | Max. Power Consumption: | 250W/m² |
| Maintenance Method: | Rear Service | Display Capacity: | Text, Image, Graphics Animations |
| Store Humidity: | 15%~ 95% | Driving Method: | Static |
| High Light: | 12400NITS Motorway VMS Signs,IP65 Motorway VMS Signs,12400NITS Electronic Road Sign |
||
Product Description

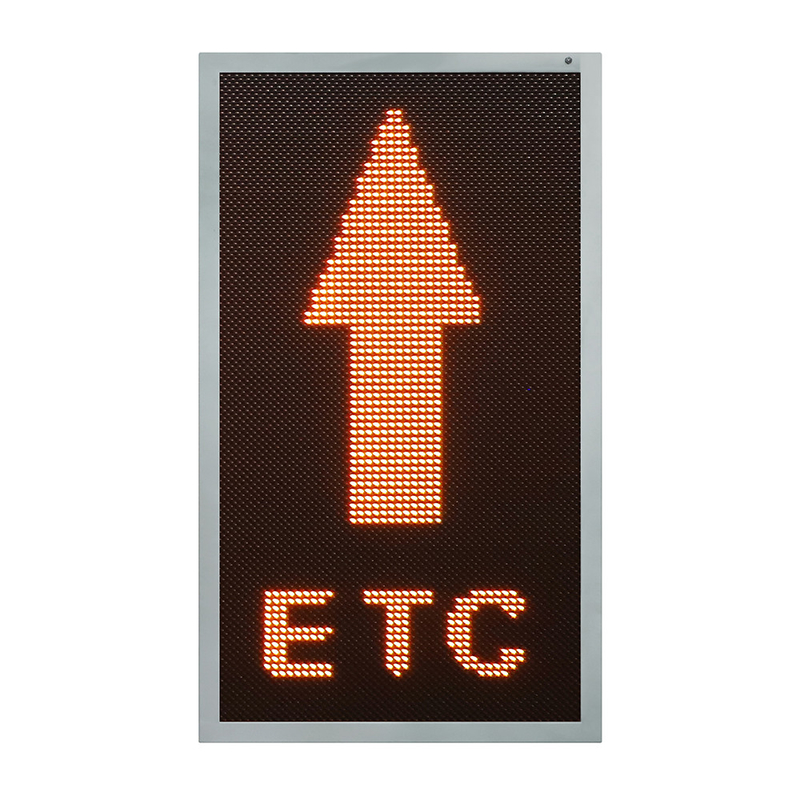

LED OT16 IP65 12400NITS Motorway VMS Signs Road Variable Message
Traffic electronic road sign EN12966 Lens LED OT16 Variable Message Sign IP65 12400NITS
Variable information signs are used to publish road weather information, road construction information, road blocking information, road surface condition information, information on suggested detours, information on road dynamic operating conditions, and provide drivers with on-the-go information to facilitate travel.Yuanheng Optoelectronics' variable information signs have long service life, high brightness, low energy consumption, and are stable and durable under harsh conditions.
⊙ All products are selected, designed and produced according to RoHS standards.
⊙ The production strictly follows the ISO14001 standard.
⊙ The screen is built with power distribution system, integrated power supply lightning protection, signal lightning protection.
⊙ The design of the integrated box body ensures that the structure is 360° waterproof and dustproof.
⊙ Screen anti-theft and intelligent alarm system ensure the safety of electromechanical equipment.

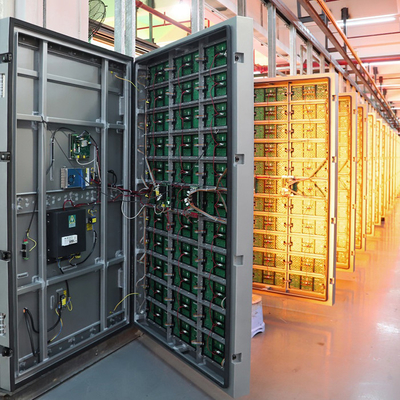

⊙ The screen body double door active heat dissipation structure, the structure is airtight.
related parameters:
Provide high brightness, standard brightness and high density 3 kinds of modules, in line with various application requirements of LED variable intelligence board.
The modular design covers the different needs of various road sections such as 2-lane, 3-lane, and 4-lane.
The brightness is optional from 8500 to 15000nits, and it can display the red, green and yellow Chinese characters and icons specified by the national standard.
| Item | YHT-VMS-OT16 |
| Pixel pitch | 16mm |
| LED type | 3 in1 SMD+lens |
| Pixel density | 3906 pixels/m² |
| Module dimension | 256×128 mm |
| Module resolution | 16×8 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 1024×1024 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits, Blue>1240nits, Amber>7440nits, White:>12400nits) |
| Brightness adjustment | 32/256 |
| Color coordinates | C2: EN12966 |
| Viewing angle | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| Refresh rate | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC |
| Max. Power consumption | 250W/m² |
| Avg. Power consumption | 80W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% |
| Protection level | IP56(P3:12966) |
| Maintenance method | Rear service |
