250x250mm Module Interactive LED Floor Panels For Party Mall Dj Bar
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YH-YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1050-2000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pieces/per month |
|
Detail Information |
|||
| Type: | Interactive Led Floor | Application: | Indoor/outdoor |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 1000mm*500mm |
| Pixel Pitch: | P2.97/P3.91/P4.81/P5.2/P6.25mm | Module Size: | 250x250mm |
| Advantage: | Cabinet With Quick Maintenance | ||
| High Light: | 250x250mm Interactive LED Floor Panels,P5.2 Interactive LED Floor Panels,P2.97 Interactive Dance Floor |
||
Product Description
250x250mm Module Interactive LED Floor Panels For Party Mall Dj Bar
Thin Led Dance Floor 1000x500mm Full Color Led Display High Resolution Interactive Floor Led Panels For Party Mall Dj B
Product description
The interactive LED floor display integrated with smart sensor chips and other equipment. When the person is on the floor screen, the sensor chip can detect the person's position and send the trigger information to the main controller, then the main console logic judges the output of the corresponding display screen, which can Track the activities of the human body to present an immediate image effect and achieve interactive vision, touch, hearing...
Specification
|
ITEM |
T2.97 |
T3.91 |
T4.81 |
T6.25 |
|
PIXEL |
2.97mm |
3.91mm |
4.81mm |
6.25mm |
|
LED TYPE |
SMD |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
112896pixel/m2 |
112896pixel/m2 |
43264pixel/m2 |
24600pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
84*84 pixels |
64*64 pixels |
52*52 pixels |
40*40 pixels |
|
CABINET DIMENSION |
500*1000mm |
500*1000mm |
500*1000mm |
500*1000mm |
|
CABINET WEIGHT |
25kg |
25kg |
25kg |
25kg |
|
ACCESS |
Rear |
Rear |
Rear |
Rear |
|
INGRESS PROTECTION |
IP66 |
IP66 |
IP66 |
IP66 |
|
BRIGHTNESS |
1800/2800cd/m2 |
1800/2500cd/m2 |
1800/2300cd/m2 |
1800/2200cd/m2 |
|
MAX.POWER CONSUMPTION |
800W/㎡ |
800W/㎡ |
800W/㎡ |
600W/㎡ |
|
AVE.POWER CONSUMPTION |
350W/㎡ |
350W/㎡ |
350W/㎡ |
350W/㎡ |
|
DRIVIG METHOD |
1/21 |
1/16 |
1/13 |
1/10 |
|
REFRESH RATE |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Input power (V) |
AC100~240 |
AC100~240 |
AC100~240 |
AC100~240 |
|
Working environment |
Indoor |
Indoor |
Indoor |
Indoor |
|
Working temperature (°C) |
-10~40 |
-10~40 |
-10~40 |
-10~40 |
|
Working humidity (%) |
5~95 |
5~95 |
5~95 |
5~95 |
|
High load-bearing |
2T/mñ |
2T/mñ |
2T/mñ |
2T/mñ |

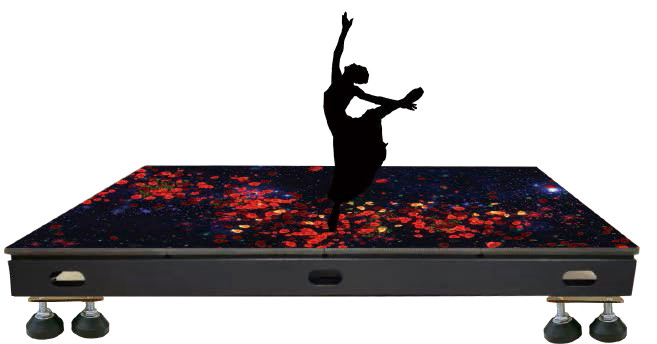

Product Display
Product advantages
-
High Ioading weight
Maximum loading weight is up to 2T/m², and easy to deal with vehicle driving on it.
-
Mobile Phone App Can Manage LED Floor Screens
Dingli is the first company to use mobile phone to manage and control LED floor screen to change
different animations. Moreover, the LED floor screen inserts advertisements when playing animations,
which can creat greater business value for customers.
-
Intelligent interaction
With the smart sensor chips built inside each cabinet, the floor tile display can interact
with people who stand on it. When there are people walking on the screen; the sensor
chip can identify the position of each person and trigger interactive effff ect according
to their movements.
-
Numerous interactive materials
There are fifi ctional worlds, blue ocean, magic lawn, boundless forest, dynamic ocean wave,
various grounds, and virtual beach, etc. 50 types of video material packages, you can also
customize the video yourself.
-
High ingress protection
Module is designed with no screw on its surface, ingress protection rating up to IP66, perfectly
workable with different environments. Show your imagination and dance without restraint

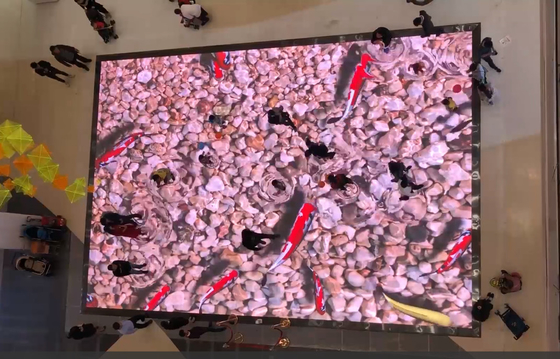

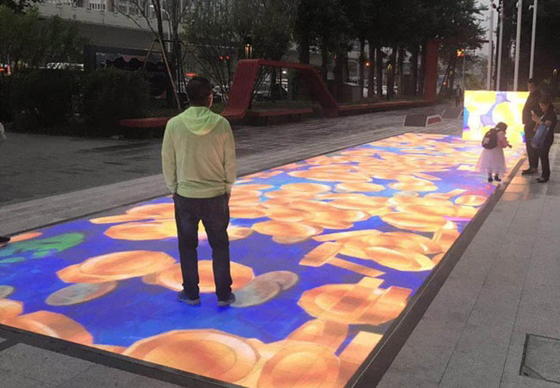

Application scenarios
