SMD 2.97mm Interactive LED Floor Panels Waterproof For Disco Stage
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YH-YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1050-2000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pieces/per month |
|
Detail Information |
|||
| Product: | Interactive Led Dance Floor Display | Application: | Indoor/outdoor |
|---|---|---|---|
| Panel Size: | 1000mm*500mm | Feature: | Unique Module Design |
| LED TYPE: | SMD | PIXEL: | 2.97mm |
| High Light: | 2.97mm Interactive LED Floor Panels,1000mm*500mm Interactive LED Floor Panels,2.97mm Dance Floor LED Screen |
||
Product Description
SMD 2.97mm Interactive LED Floor Panels Waterproof For Disco Stage
High Resolution Interactive Floor Led Panels Professional Dance Floor Led Screen For Disco Stage Waterproof
Product description
YAHAM Interactive LED Floor Panels with High-strength load-bearing performance: bearing capacity exceeding 2000KG/m2; Waterproof, explosion-proof and low-temperature: each module is independently waterproof and can be used in all outdoor cold weather. quick repair: easy to disassemble and repair.
Specification
|
ITEM |
T2.97 |
T3.91 |
T4.81 |
T6.25 |
|
PIXEL |
2.97mm |
3.91mm |
4.81mm |
6.25mm |
|
LED TYPE |
SMD |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
112896pixel/m2 |
112896pixel/m2 |
43264pixel/m2 |
24600pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
84*84 pixels |
64*64 pixels |
52*52 pixels |
40*40 pixels |
|
CABINET DIMENSION |
500*1000mm |
500*1000mm |
500*1000mm |
500*1000mm |
|
CABINET WEIGHT |
25kg |
25kg |
25kg |
25kg |
|
ACCESS |
Rear |
Rear |
Rear |
Rear |
|
INGRESS PROTECTION |
IP66 |
IP66 |
IP66 |
IP66 |
|
BRIGHTNESS |
1800/2800cd/m2 |
1800/2500cd/m2 |
1800/2300cd/m2 |
1800/2200cd/m2 |
|
MAX.POWER CONSUMPTION |
800W/㎡ |
800W/㎡ |
800W/㎡ |
600W/㎡ |
|
AVE.POWER CONSUMPTION |
350W/㎡ |
350W/㎡ |
350W/㎡ |
350W/㎡ |
|
DRIVIG METHOD |
1/21 |
1/16 |
1/13 |
1/10 |
|
REFRESH RATE |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Input power (V) |
AC100~240 |
AC100~240 |
AC100~240 |
AC100~240 |
|
Working environment |
Indoor |
Indoor |
Indoor |
Indoor |
|
Working temperature (°C) |
-10~40 |
-10~40 |
-10~40 |
-10~40 |
|
Working humidity (%) |
5~95 |
5~95 |
5~95 |
5~95 |
|
High load-bearing |
2T/mñ |
2T/mñ |
2T/mñ |
2T/mñ |
Product Display
Product advantages
-
High Ioading weight
Maximum loading weight is up to 2T/m², and easy to deal with vehicle driving on it.
-
Mobile Phone App Can Manage LED Floor Screens
Dingli is the first company to use mobile phone to manage and control LED floor screen to change
different animations. Moreover, the LED floor screen inserts advertisements when playing animations,
which can creat greater business value for customers.
-

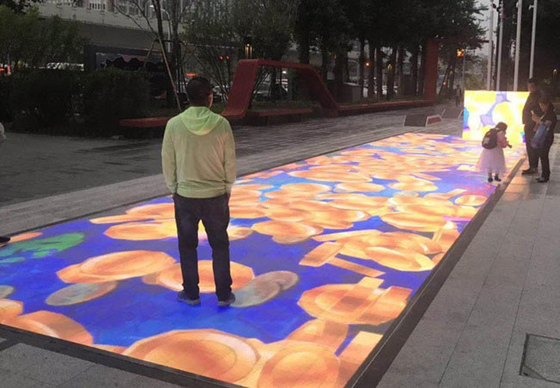

Intelligent interaction
With the smart sensor chips built inside each cabinet, the floor tile display can interact
with people who stand on it. When there are people walking on the screen; the sensor
chip can identify the position of each person and trigger interactive effff ect according
to their movements.
-
Numerous interactive materials
There are fifi ctional worlds, blue ocean, magic lawn, boundless forest, dynamic ocean wave,
various grounds, and virtual beach, etc. 50 types of video material packages, you can also
customize the video yourself.
-
High ingress protection
Module is designed with no screw on its surface, ingress protection rating up to IP66, perfectly
workable with different environments. Show your imagination and dance without restraint

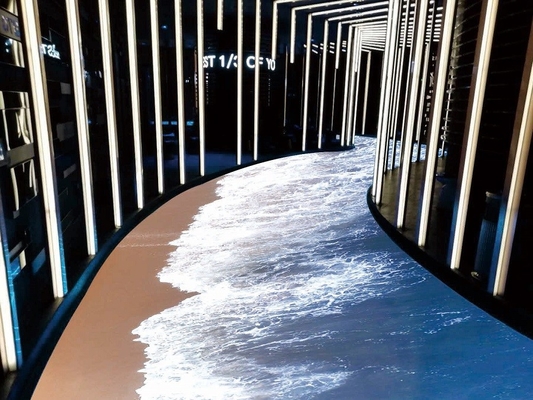

Application scenarios
