P2.97 P3.91 P4.81 P5.2 P6.25 Interactive LED Screen video dancefloor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YAHAM |
| Certification: | 2AZPZ-T25 |
| Model Number: | YH-YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1050-2000/piece |
| Packaging Details: | wooden case |
| Delivery Time: | 15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500pieces/per month |
|
Detail Information |
|||
| Name: | Interactive Led Floor | Application: | Indoor/outdoor |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 1000mm*500mm |
| Pixel Pitch: | P2.97/P3.91/P4.81/P5.2/P6.25mm | Module Size: | 250x250mm |
| Advantage: | Unique Module Design | Advantage2: | Cabinet With Quick Maintenance |
| Advantage3: | High Ioading Weight | Advantage4: | Mobile Phone App Can Manage LED Floor Screens |
| Advantage5: | Intelligent Interaction | Advantage6: | Numerous Interactive Materials |
| Advantage7: | High Ingress Protection | Application Scenarios: | Exhibition Hall，Commercial DJ Nightclub，Shopping Mall |
| High Light: | P6.25 Interactive LED Screen,P2.97 Video Dancefloor,P3.91 Floor Light Panels |
||
Product Description

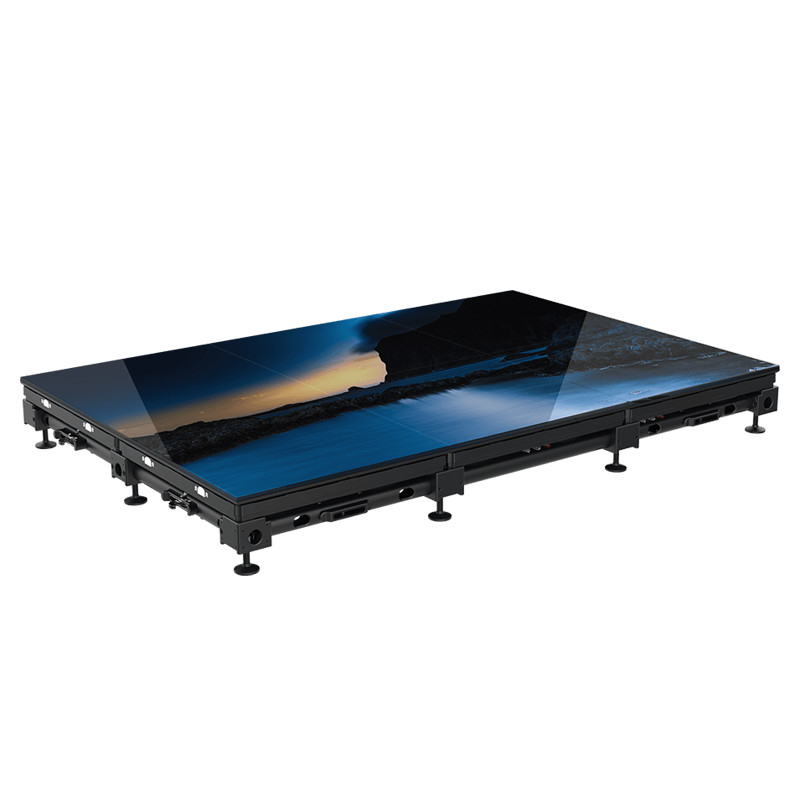

P2.97 P3.91 P4.81 P5.2 P6.25 Interactive LED Screen Video Dancefloor
1000x500mm high resolution interactive floor led panels thin led dance floor full color led display for party mall dj ba
Product description
YAHAM Display Technology LED interactive floor screen self-developed built-in sensing system to increase the fun of inductive interaction based on the normal floor screen . The interactive LED floor screen integrated with smart sensor chips and other equipment. When the person is on the floor screen , the sensor chip can sense the position of the person and feedback the trigger information to the main controller, and then the main console logic judges to output the corresponding display screen, which can follow the human body's activities to present an immediate picture effect and achieve Interactive vision, touch, hearing... all creative ideas and imaginations. There are abstract world, magic ocean, magic lawn, forest, dynamic ocean world, dynamic ground, and virtual beach, etc., can be felt with aesthetic and optical effects. The novelty, excitement, and coolness caused a strong resonance at the visual, sensory, and experience levels to tourists, which enhanced the sense of substitution and active participation of tourists, and shaped a high-level, all-round interactive experience for tourists. It is a unique journey of magic.
Specification
|
ITEM |
T2.97 |
T3.91 |
T4.81 |
T6.25 |
|
PIXEL |
2.97mm |
3.91mm |
4.81mm |
6.25mm |
|
LED TYPE |
SMD |
SMD |
SMD |
SMD |
|
PIXEL DENSITY |
112896pixel/m2 |
112896pixel/m2 |
43264pixel/m2 |
24600pixel/m2 |
|
MODULE DIMENSION |
250*250 mm |
250*250 mm |
250*250 mm |
250*250 mm |
|
MODULE RESOLUTION |
84*84 pixels |
64*64 pixels |
52*52 pixels |
40*40 pixels |
|
CABINET DIMENSION |
500*1000mm |
500*1000mm |
500*1000mm |
500*1000mm |
|
CABINET WEIGHT |
25kg |
25kg |
25kg |
25kg |
|
ACCESS |
Rear |
Rear |
Rear |
Rear |
|
INGRESS PROTECTION |
IP66 |
IP66 |
IP66 |
IP66 |
|
BRIGHTNESS |
1800/2800cd/m2 |
1800/2500cd/m2 |
1800/2300cd/m2 |
1800/2200cd/m2 |
|
MAX.POWER CONSUMPTION |
800W/㎡ |
800W/㎡ |
800W/㎡ |
600W/㎡ |
|
AVE.POWER CONSUMPTION |
350W/㎡ |
350W/㎡ |
350W/㎡ |
350W/㎡ |
|
DRIVIG METHOD |
1/21 |
1/16 |
1/13 |
1/10 |
|
REFRESH RATE |
1920/3840 |
1920/3840 |
1920/3840 |
1920/3840 |
|
Input power (V) |
AC100~240 |
AC100~240 |
AC100~240 |
AC100~240 |
|
Working environment |
Indoor |
Indoor |
Indoor |
Indoor |
|
Working temperature (°C) |
-10~40 |
-10~40 |
-10~40 |
-10~40 |
|
Working humidity (%) |
5~95 |
5~95 |
5~95 |
5~95 |
|
High load-bearing |
2T/mñ |
2T/mñ |
2T/mñ |
2T/mñ |
Product Display
Product advantages
-
High Ioading weight
Maximum loading weight is up to 2T/m², and easy to deal with vehicle driving on it.
-
Mobile Phone App Can Manage LED Floor Screens
Dingli is the first company to use mobile phone to manage and control LED floor screen to change
different animations. Moreover, the LED floor screen inserts advertisements when playing animations,
which can creat greater business value for customers.
-
Intelligent interaction
With the smart sensor chips built inside each cabinet, the floor tile display can interact
with people who stand on it. When there are people walking on the screen; the sensor
chip can identify the position of each person and trigger interactive effff ect according
to their movements.
-
Numerous interactive materials
There are fifi ctional worlds, blue ocean, magic lawn, boundless forest, dynamic ocean wave,
various grounds, and virtual beach, etc. 50 types of video material packages, you can also
customize the video yourself.
-
High ingress protection
Module is designed with no screw on its surface, ingress protection rating up to IP66, perfectly
workable with different environments. Show your imagination and dance without restraint

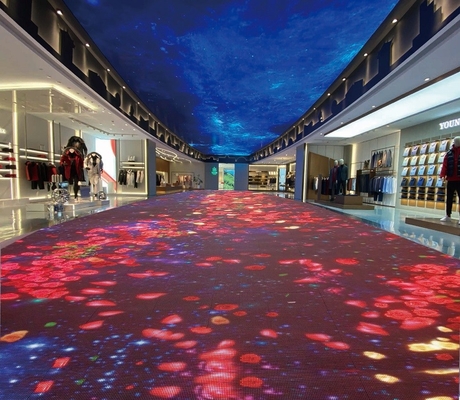

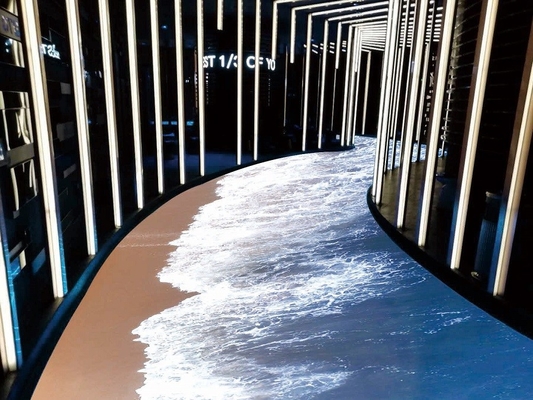

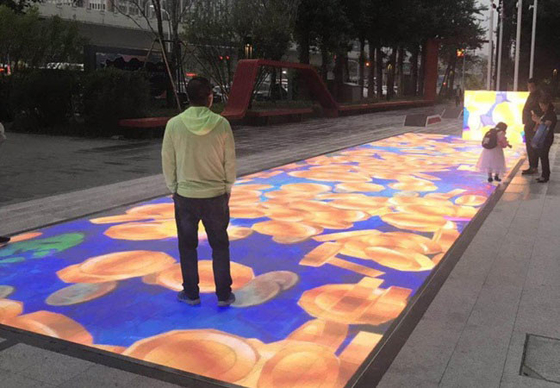

Application scenarios
